Symmetric DIN rails 35x15 NSYSDR60A

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 016.002.023

Manufacturer: Schneider Electric

Barcode: 3606480184383

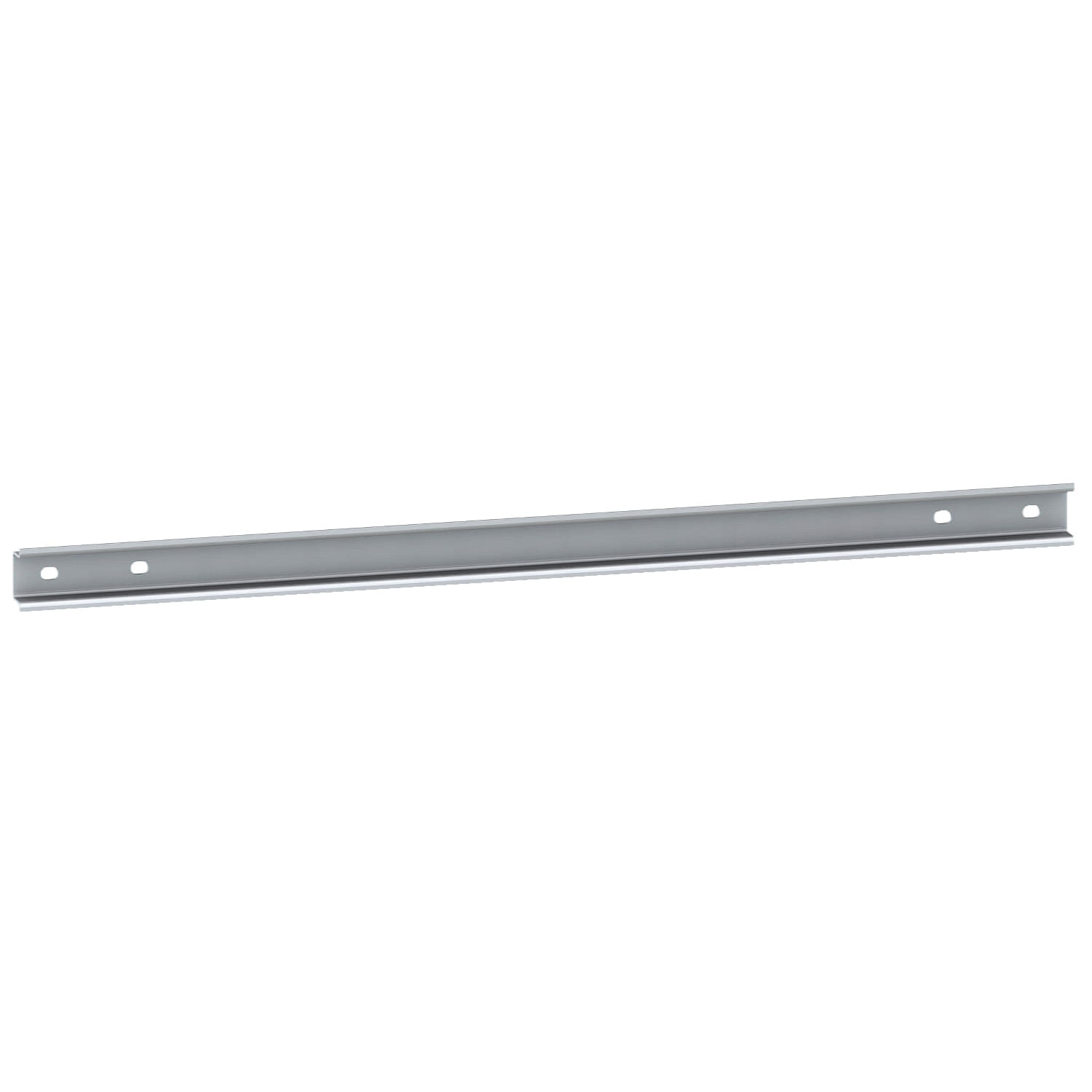

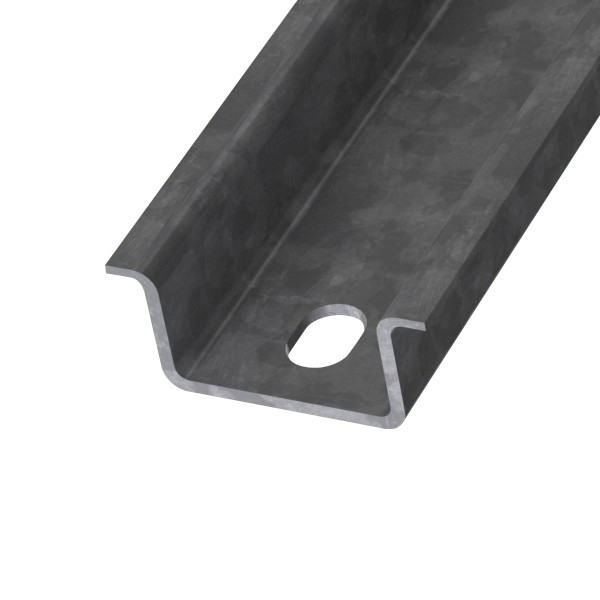

DIN rail NSYSDR50A is designed to be used for mounting circuit breakers and industrial control equipment inside equipment racks.
• Material - galvanized steel;
• Width - 35 mm;
• Length of the rail -550 mm.

☎ Price by call

Description

Specification

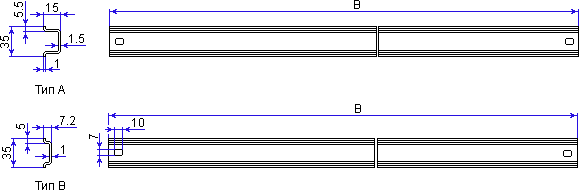

Schneider Electric catalogue number	Rail type	Rail width, mm	Nominal length, mm	Real length, mm (B)
NSYSDR30B	B	1	300	250
NSYSDR40B	B	1	400	350
NSYSDR50A	A	1,5	500	450
NSYSDR60A	A	1,5	600	550
NSYSDR80A	A	1,5	800	750
NSYSDR100A	A	1,5	1000	950
