Residual current circuit breaker Easy9 EZ9D34610 1P+N 10A 30mA C AC 4.5kA 230V

Model: 003.011.501

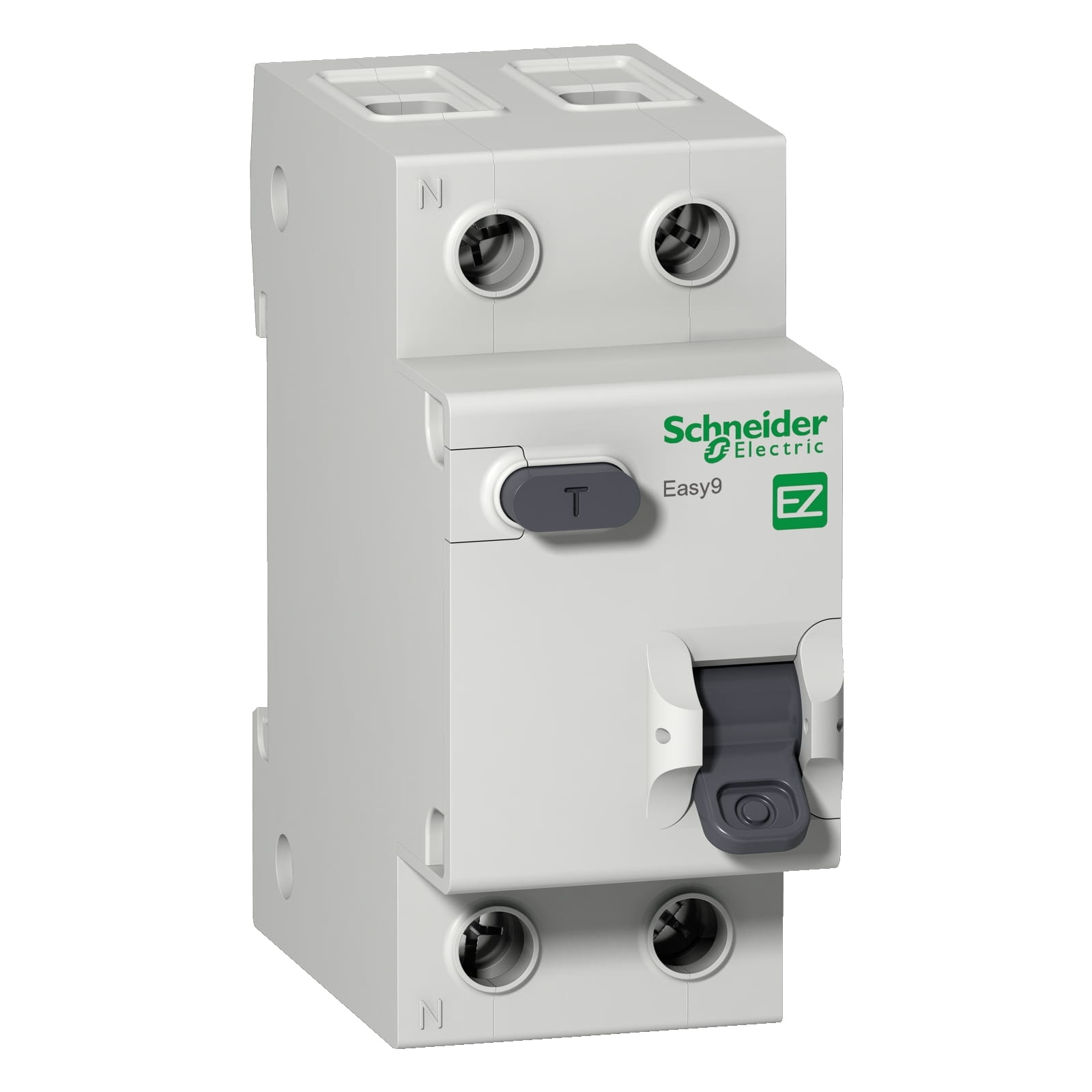

Residual current circuit breaker Easy9 EZ9D34610
Manufacturer: Schneider Electric
Barcode: 3606480582103
Differential automatic machine Easy9 EZ9D34610 is designed to perform the following functions:
  • protection of circuits against short-circuit currents
  • overload current protection
  • protection of people from electric shock (sensitivity 30 mA)
  • combine the functions of a circuit breaker and a residual current circuit breaker (RCCB)
  • provide protection both in the absence and in the presence of grounding (PE-conductor)


product or component typeResidual current breaker with overcurrent protection (RCBO)
device short nameEasy9 RCBO
Poles1P + N
neutral positionLeft
[In] rated current10 A
network typeAC
trip unit technologyThermal-magnetic
curve codeC
earth-leakage sensitivity30 mA
earth-leakage protection time delayInstantaneous
earth-leakage protection classType AC
breaking capacity4500 A Icn at 230 V AC 50 Hz conforming to IEC 61009-1


device applicationDistribution
device location in systemOutgoer
[Ue] rated operational voltage230 V AC 50 Hz
magnetic tripping limit5...10 x In
[Ui] rated insulation voltage500 V
[Uimp] rated impulse withstand voltage4 kV
surge current250 A
contact position indicatorYes
control typeToggle
mounting supportDIN rail
9 mm pitches4
height81 mm
width36 mm
depth66.5 mm
colourGrey (RAL 7035)
mechanical durability8000 cycles
electrical durability2000 cycles 230 AC 50 Hz
connections - terminalsTunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
tightening torque2 N.m top or bottom
earth-leakage protectionIntegrated


standardsIEC 61009-1
product certificationsGOST
relative humidity95 %
ambient air temperature for operation-25…60 °C
ambient air temperature for storage-40…70 °C

RCBO's dimensions

Easy9 RCBO's dimensions

Range of residual current circuit breakers (RCBO) Easy9

Rated current, A Schneider Electric catalogue number
10 EZ9D34610
16 EZ9D34616
20 EZ9D34620
25 EZ9D34625
32 EZ9D34632
40 EZ9D34640
General characteristics
Curve code Curve C
Type AC
Sensitivity 30 mA
No. voltage (Ue) 230 VAC current, 50 Hz
Breaking capacity 4.5 kA
Number of modules W = 18 mm 2

Trip curves

Trip curves Easy9
