Round pilot light XB7EV04MP

Model: 002.009.100
Round pilot light XB7EV04MP
Manufacturer: Schneider Electric
Barcode: 3389110839760
LED round pilot light XB7EV04MP of red colour is designed for state indication of electrical circuits.
Rated supply voltage 230...240VAC 50/60Hz.
Maximum current consumption 20mA.
Mounting diameter 22mm.
☎ Price by call

Main

range of productHarmony XB7
product or component typePilot light
device short nameXB7
mounting diameter22 mm
sale per indivisible quantity10
shape of signaling unit headRound
cap/operator or lens colourRed
light sourceLED
bulb baseIntegral LED
[Us] rated supply voltage230...240 V AC 50/60 Hz
device presentationMonolithic product

Complementary

height29 mm
width29 mm
depth54 mm
terminals description ISO n°1(X1-X2)PL
net weight0.02 kg
device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
fixing center>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
fixing modeFixing nut beneath head: 2…2.4 N.m
connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
tightening torque0.8…1.2 N.m conforming to EN 60947-1
shape of screw headCross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-1
signalling typeSteady
supply voltage limits195…264 V AC
current consumption16...20 mA
service life70000 h at rated voltage and 25 °C

Environment

protective treatmentTH
ambient air temperature for storage-40…70 °C
ambient air temperature for operation-25…70 °C
overvoltage categoryClass II conforming to IEC 60536
IP degree of protectionIP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529
NEMA degree of protectionNEMA 4 conforming to UL 50 E
NEMA 12 conforming to UL 50 E
standardsEN/IEC 60947-1
CSA C22.2 No 14
UL 508
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1
vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
electromagnetic compatibilityDisturbing field emission class B conforming to EN 55011

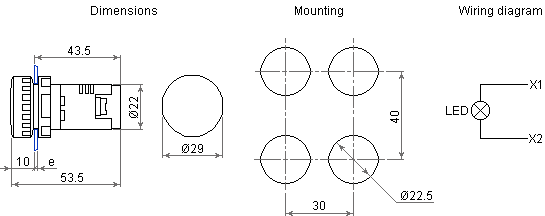

Dimensions and wiring diagram

Dimensions and wiring diagram
* e=1...6 mm (metal panel); e=2...6 mm (plastic panel)
