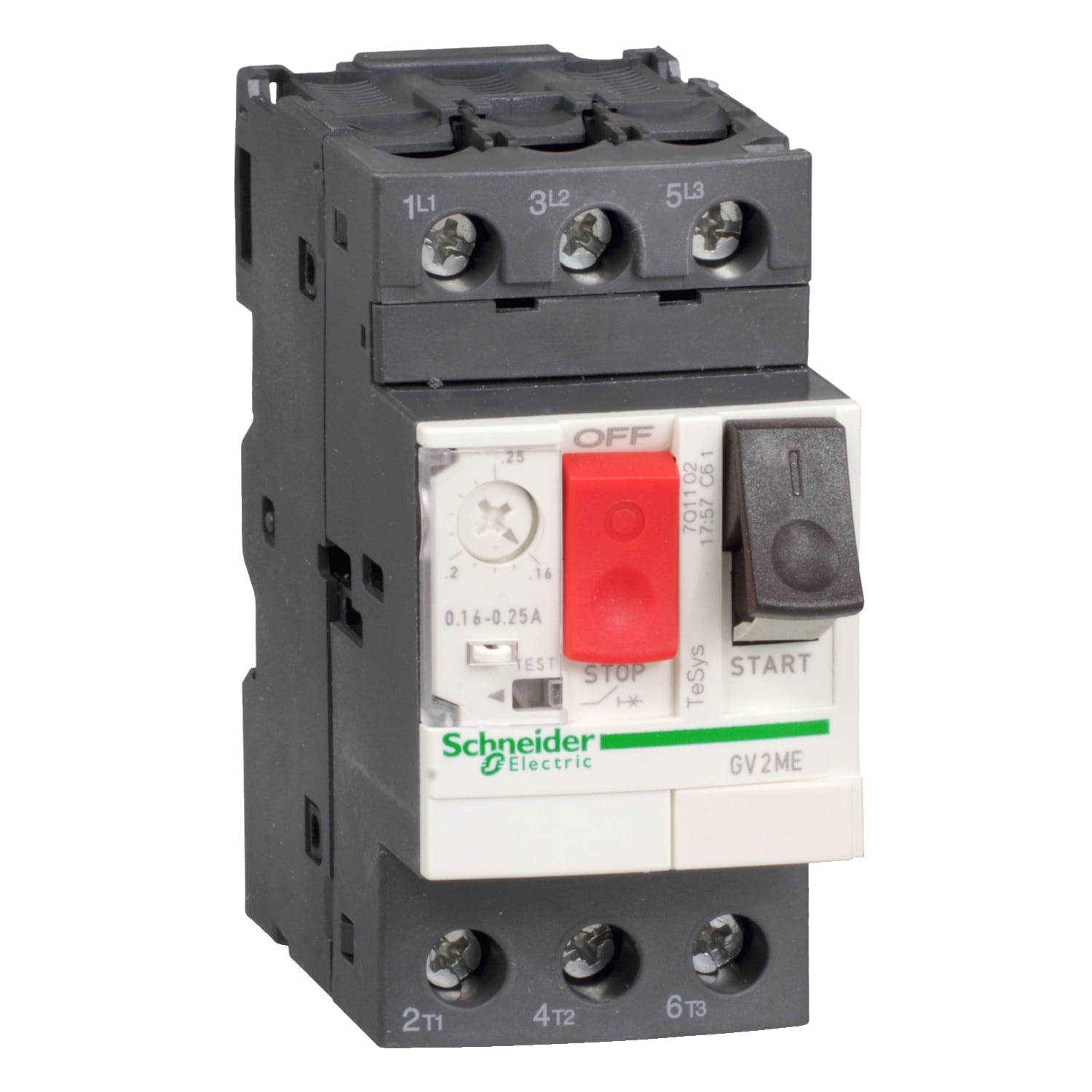

Thermal-magnetic motor circuit breaker GV2ME08

Model: 003.002.057
Thermal-magnetic motor circuit breaker GV2ME08
Manufacturer: Schneider Electric
Barcode: 3389110343090
GV2ME are three-pole thermal-magnetic circuit breakers specifically designed for the control and protection of motors, conforming to standards IEC 60947-2 and IEC 60947-4-1.
GV2ME circuit breakers are designed for connection by screw clamp terminals. They can be supplied with spring terminal connections which ensure secure, permanent and durable clamping that is resistant to harsh environments, vibration and impact and are even more effective when conductors without cable ends are used. Each connection can take two independent conductors.
Pushbutton control. Energisation is controlled manually by operating the start button "I". De-energisation is controlled manually by operating the stop button "O", or automatically by the thermal-magnetic protection elements or by a voltage trip attachment.
Price by call


Technical characteristics
Number of poles3
Trip element typethermal-magnetic
Utilisation categoryA conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
Rated operational voltage (Ue)690VAC, 50/60Hz conforming to IEC 60947-2
Rated voltage600VAC, 50/60Hz confroming to CSA C22-2 #14, conforming to UL 508
Rated insulation voltage (Ui)690V conforming to 60947-2
Rated impulse withstand voltage (Uimp)6kV conforming to IEC 60947-2
Total power dissipated per pole2,5W
Motor power1,1kW at 400...415VAC
1,5kW at 500VAC
2,2kW at 690VAC
Max conventional rated thermal current (Ith)4A conforming to IEC 60947-4-1
Rated current (In)4A
Tripping current range2,5...4A conforming to IEC 60947-4-1
Tripping threshold of magnetic elements51A
Breaking capacity (Icu)> 100kA at 230...240V
> 100kA at 400...415V
> 100kA at 440V
> 100kA at 500V
3kA at 690V
Rated breaking current (Ics)> 100% of Icu at 230...240V
> 100% of Icu at 400...415V
> 100% of Icu at 440V
> 100% of Icu at 500V
75% of Icu at 690V
Mechanical durability100 000 cycles
Electrical durability for AC-3 duty (440V, In/2)100 000 cycles
Duty class (Max operating rate)25 cycles/h
Rated dutycontinuous duty
Environmental characteristics
Degree of protectionIP20 conforming to IEC 60529
Ambient operating temperature-20°C...+60°C (open mounted)
-20°C...+40°C (in enclosure)
Storage temperature-40°C...+80°C
Flame resistance960°C conforming to IEC 60695-2-1
Max operating altitude≤ 2000m
Shock resistance30gn - 11ms conforming to IEC 60068-2-27
Vibration resistance5gn (50...150Hz) conforming to IEC 60068-2-6
Sensitivity to phase failureyes conforming to IEC 60947-4-1
Resistance to mechanical impact0,5J
Mounting characteristics
Operating positionvertical mounting
Mountingon a panel or 35mm DIN rail
Connection to screw clamp terminals2×1...6mm2 solid cable
2×1,5...6mm2 flexible cable without cable end
2×1...4mm2 flexible cable with cable end
Tightening torque1,7N·m
Connection to spring terminals2×1...6mm2 solid cable
2×1,5...4mm2 flexible cable without cable end


Basic dimensions
Electrical clearance X1=40mm for Ue≤ 690V


Electrical scheme

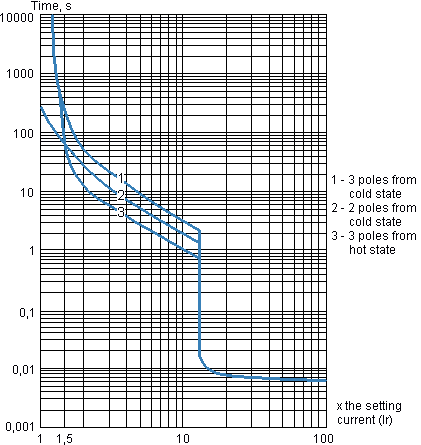

Thermal-magnetic tripping curves

Average operating times at 20°C related to multiples of the setting current
Tripping curves
