Semiconductor contactor R100.20 20A (AC51)

Manufacturer: ABB

Barcode: 4013614351235

Semiconductor contactor R100.20 1SAR111020R8607 is designed for contactless and wear-free switching of ohmic and inductive single-phase AC loads with high switching frequency.
• Compact design;
• Zero voltage switching;
• Rated operational voltage U_e 42-660V AC;
• LED for status indication;
• Integrated heat sink , ready for use;
• Mounting on 35 mmDIN rail or screw mounting on plate;
• Cage terminal with integrated protection against electric shock (touch proof).

Product no longer available

Specification for contactor

Type	R100.20
ABB order code	1SAR111020R8607
Output circuit
Switching element	Thyristor
Rated operational voltage U_e	42-660VAC
Period peak inverse voltage U_peak	1200V
Rated operational current at T_a=25°C	АС-51 20А АС-53а 5A
Operating frequency	45-65Hz
Max off-state leakage current (at U_max and T=25°C)	< 3mA
Minimum load current	350mA
Max surge current I_TSM (t=10ms)	250А
Max overcurrent (t=1s)	< 35А
Max load integral ∫ i²dt (t=10ms)	310A²s
Conducting state voltage (at I_max and T=25°C)	1,6V
Critical current gradient di/dt	≥ 10A/μs
Permissible commutating voltage gradient du/dt	500V/μs
Permissible static voltage gradient du/dt	500V/μs
Input circuit
Rated control circuit voltage	4-32V DC
Make voltage	3,8V DC
Inverse polarity voltage	32V DC
Break voltage	1,2V DC
Input current (at U_max)	12mA
Max turn-on time	1 period
Max turn-off time	1 period
General data
Power factor (cos φ)	≥ 0,5 (at 600V АС)
Operating temperature	-30…+80°C
Barrier-layer temperature	125°C
Storage temperature	-40…+100°C
Proof voltage	4000V
Dielectric strength	4000V
Wire size	input terminals - max 2×2.5 mm²/1×4 mm² output terminals - 2×2,5 mm²/1×4 mm²

Load limit curves

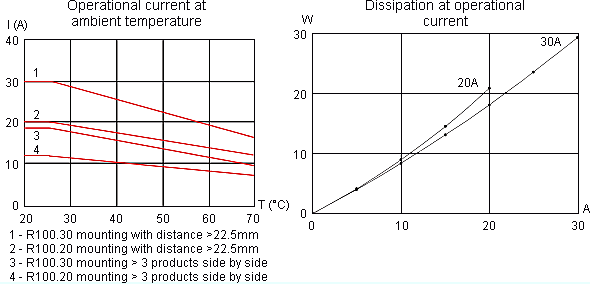

Load lilmit curves of ABB semiconductor contactors R100.20

Dimensions of R100.20

Dimensions of ABB semiconductor contactors R100.20
