Semiconductor contactor R100.45 45A (AC51)

Manufacturer: ABB

Barcode: 4013614351266

Semiconductor contactor R100.45 1SAR111045R8607 is designed for contactless and wear-free switching of ohmic and inductive single-phase AC loads with high switching frequency.
• Compact design;
• Zero voltage switching;
• Rated operational voltage U_e 42-660V AC;
• LED for status indication;
• Integrated heat sink , ready for use;
• Mounting on 35 mmDIN rail or screw mounting on plate;
• Cage terminal with integrated protection against electric shock (touch proof).

Product no longer available

Specification

Type	R100.45
ABB order code	1SAR111045R8607
Output circuit
Switching element	Thyristor
Rated operational voltage U_e	42-660VAC
Period peak inverse voltage U_peak	1200V
Rated operational current at T_a=25°C	АС-51 45A АС-53а 20A
Operating frequency	45-65Hz
Max off-state leakage current (at U_max and T=25°C)	< 3mA
Minimum load current	150mA
Max surge current I_TSM (t=10ms)	1150А
Max overcurrent (t=1s)	< 125А
Max load integral ∫ i²dt (t=10ms)	6600A²s
Conducting state voltage (at I_max and T=25°C)	1,6V
Critical current gradient di/dt	≥ 150A/μs
Permissible commutating voltage gradient du/dt	500V/μs
Permissible static voltage gradient du/dt	500V/μs
Input circuit
Rated control circuit voltage	4-32V DC
Make voltage	4,25V DC
Inverse polarity voltage	32V DC
Break voltage	1V DC
Input current (at U_max)	15mA
Max turn-on time	1 period
Max turn-off time	1 period
General data
Power factor (cos φ)	≥ 0,5 (at 600V АС)
Operating temperature	-30…+80°C
Barrier-layer temperature	125°C
Storage temperature	-40…+100°C
Proof voltage	4000V
Dielectric strength	4000V
Wire size	input terminals max 2×2.5 mm²/1×4 mm² output terminals 2×2,5 mm²/1×4 mm² or 1×25 mm²

Load limit curves

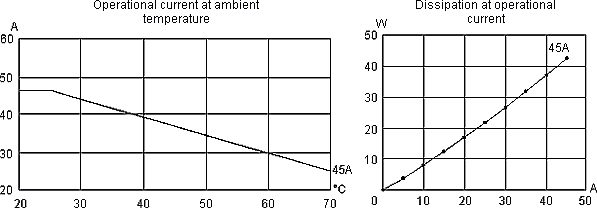

Load lilmit curves of ABB semiconductor contactors R100.45

Dimensions of R100.45

Dimensions of ABB semiconductor contactors R100.45
