Axial fan with filter NSYCVF560M230PF

Model: 020.004.037

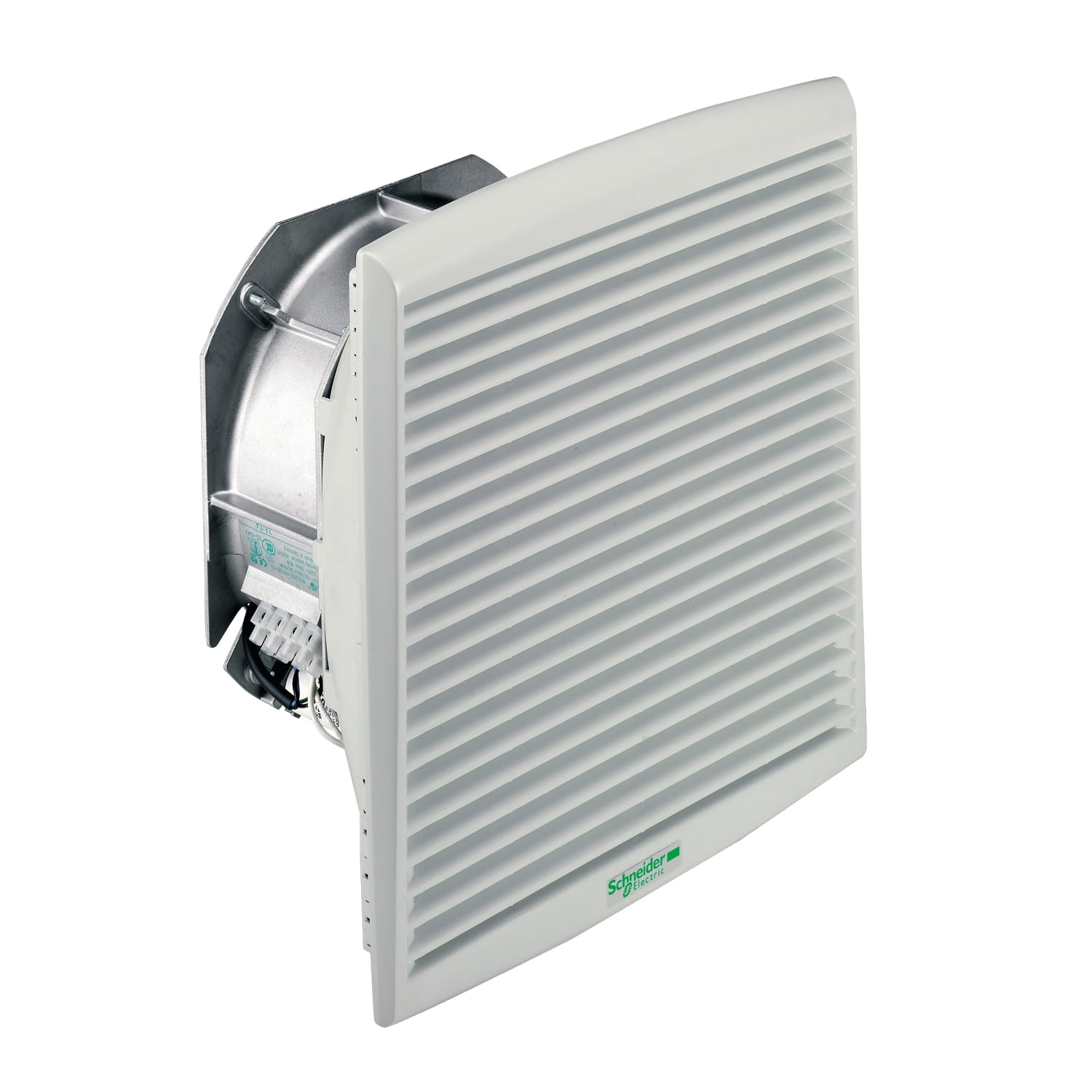

Axial fan with filter NSYCVF560M230PF
Manufacturer: Schneider Electric
Barcode: 3606480151323
Axial fan with filter NSYCVF560M230PF is recommdended to be used in the workplace where:
− Outside temperature is 5°C lower than inside temperature.
− The required degree of protection is IP54.
− The surrounding environment is relatively clean.
☎ Price by call

Specification

NameNSYCVF560M230PF
Free flow rate with standard filter562 m3/h
Input voltage230V 50Hz
Rated supply voltage207V...253V
Power68 W
Rated current0.52A
Noise level59dB
Bearing typeball
Degree of protectionIP54
Dimensions336 х 316 х 161 mm
Mounting hole291 х 291 mm
Weight3.2 kg
Materialinjected thermoplastic (ASA PC) for outlet grille
Operating temperature-15°C...+60°C
Storage temperature-40°C...+70°C
Maximum pressure140 Pa

Dimensions

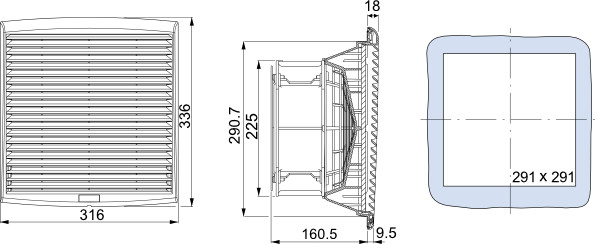

NSYCVF560M230PF dimensions

Schneider Electric outlet grilles model range with IP54

Outlet grille RAL 7032 Outlet grille RAL 7035 External dimensions, mm Mounting cut-out, mm Filter fan (RAL 7035) Supply voltage
NSYCAG92LPC NSYCAG92LPF 137x117 92x92 NSYCVF38M230PF 230VAC
NSYCVF38M115PF 115VAC
NSYCVF38M24DPF 24VDC
NSYCVF38M48DPF 48VDC
NSYCAG125LPC NSYCAG125LPF 170x150 125x125 NSYCVF85M230PF 230VAC
NSYCVF85M115PF 115VAC
NSYCVF85M24DPF 24VDC
NSYCVF85M48DPF 48VDC
NSYCAG223LPC NSYCAG223LPF 268x248 223x223 NSYCVF165M230PF 230VDC
NSYCVF165M115PF 115VDC
NSYCVF165M24DPF 24VDC
NSYCVF165M48DPF 48VDC
NSYCVF300M230PF 230VAC
NSYCVF300M115PF 115VAC
NSYCVF300M24DPF 24VDC
NSYCVF300M48DPF 48VDC
NSYCAG291LPC NSYCAG291LPF 336х316 291х291 NSYCVF560M230PF 230VAC
NSYCVF560M115PF 115VAC
NSYCVF850M230PF 230VAC
NSYCVF850M115PF 115VAC
NSYCVF850M400PF 400VAC

Auxiliaries and accessories for NSYCVF560M230PF

background
NSYCAG291LPC
