Thermostat FLZ 510 7K 0...60°C

Model: 010.008.007

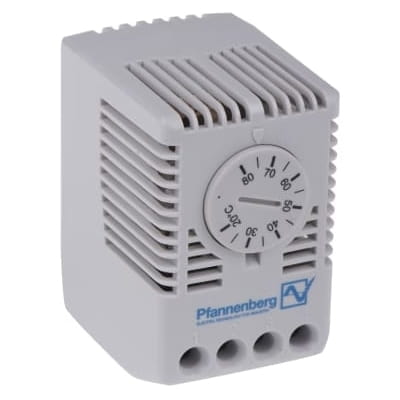

Thermostat FLZ 510 7K 0...60°C
Manufacturer: Pfannenberg (Germany)
The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact

Parameters

Pfannenberg Part Number17106000000
Probe typeremote sensor with 1.5 capillary
Regulation range0°C...+60°C
Switching temperature difference7K
Switching point tolerance±3К
Contact1 change-over (CO)
Connectionscrew terminal for cable cross-section 0.5 to 2.5 mm²
Max. switching power - resistiveNO: 5(2)A/250Vас
NC: 10(2)A/250Vас
DC 30W max
Operating temperature range / Storage temperature range-20...+80°С
System of protectionIP20
Sizes H×W×D, mm64×46×37

Schematics

connection diagram FLZ 510 7K 0...+60°C

Model range of FLZ

Name Pfannenberg Part Number Switching temperature difference Contact Adjustable range
FLZ 510 1K 0…+60°C 17103000000 1К CO 0...+60°C
FLZ 510 1K -20…+40°C 17103000003 1К CO -20...+40°С
FLZ 510 1K +20…+80°C 17103000004 1К CO +20...+80°C
FLZ 510 3K 0…+60°C 17105000000 3К CO 0...+60°C
FLZ 510 3K -20…+40°C 17105000003 3К CO -20...+40°С
FLZ 510 3K +20…+80°C 17105000004 3К CO +20...+80°C
FLZ 510 7K 0…+60°C 17106000000 7К CO 0...+60°C
FLZ 510 7K -20…+40°C 17106000003 7К CO -20...+40°С
FLZ 510 7K +20…+80°C 17106000004 7К CO +20...+80°C
FLZ 520 0…+60°C 17111000000 <7K NC +0...+60°C
FLZ 520 -20…+40°C 17111000003 <7K NC -20...+40°С
FLZ 520 +20…+80°C 17111000004 <7K NC +20...+80°C
FLZ 530 0…+60°C 17121000000 <7K NO +0...+60°C
FLZ 530 -20…+40°C 17121000003 <7K NO -20...+40°С
FLZ 530 +20…+80°C 17121000004 <7K NO +20...+80°C
FLZ 541 17141000000 <7K NC
NO		 0...+60°C
FLZ 542 17142000000 <7K NC
NC		 0...+60°C
FLZ 543 17143000000 <7K NO
NO		 0...+60°C
