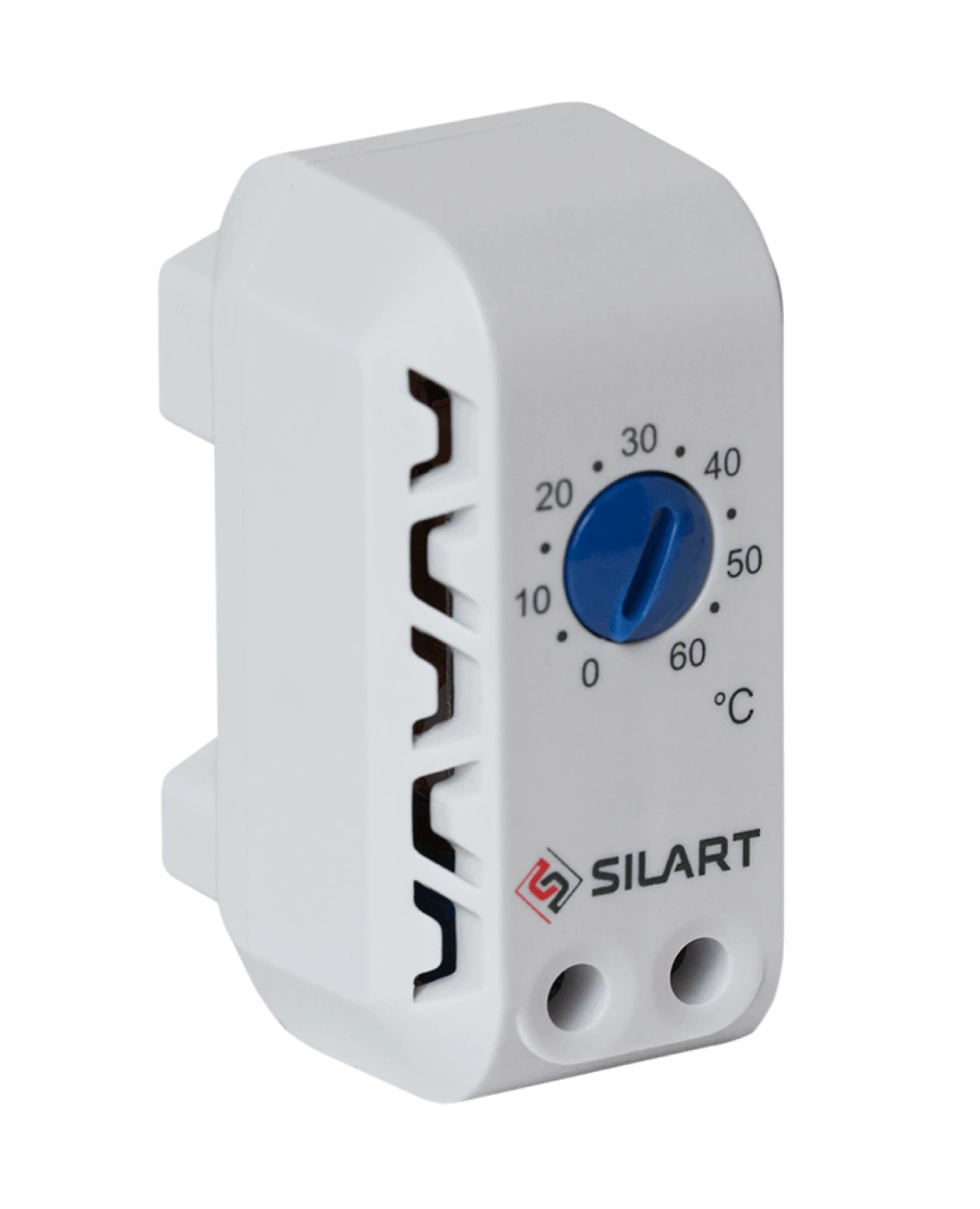

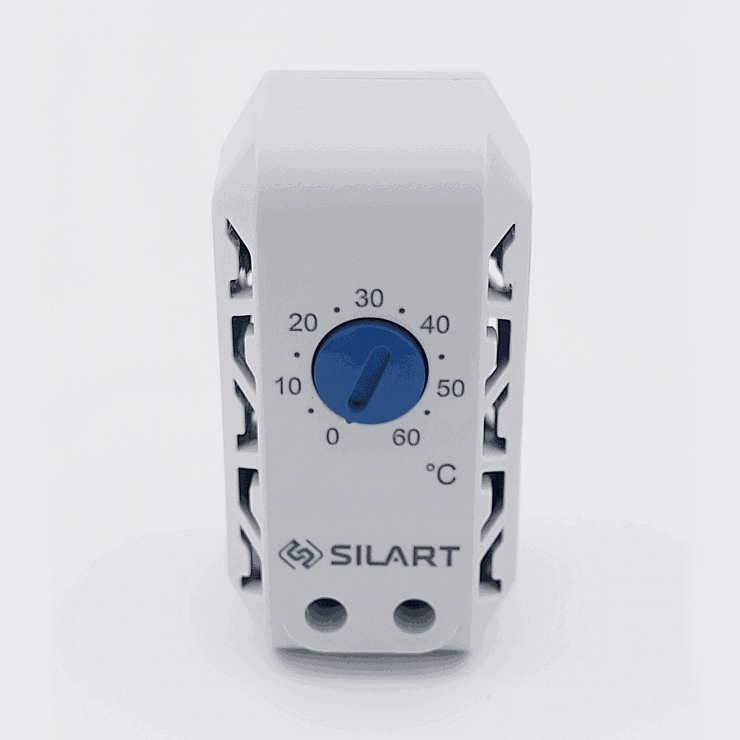

Bimetallic thermostat TBS-260 with adjustable temperature range 0...+60°C

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 008.006.823

Manufacturer: Silart

Mechanical thermostat TBS-260 is designed to open electrical circuit at the required temperature.
Adjustable temperature range 0...+60°C.
Rated capacity through normally open contact (NO) - 16A 250VAC.

$6.48

Description
Compatible

Characteristics

Function	Cooling control
Contact configuration	NO
Temperature control range	0°С ... +60°С
Operating/Storage temperature	-40°С ... +80°С
Accuracy	±4°C
Hysteresis	7±3°C
Max voltage	250VAC / 72VDC
Switching capacity (AC)	16A/250V
Switching capacity (DC)	30W/72V
Min switching load (AC/DC)	10mA/5V
Insulation strength	≥1500V
Insulation resistance	≥50 MOhm
Contact resistance	≤10 mOhm
Commutation life (at 16A)	≥100 000 switching cycles
Degree of protection	IP 20
Body material	Plastic (complies with UL 94 V-0)
Body colour	RAL 7035
Overall dimensions	63х34х42 mm
Mounting position	any
Connection	solid conductor: 0,35 … 2,5 mm² stranded wire: 0,35 … 1,5 mm² (using terminals is recommended)
Torque	max 0,5 N·m (screw М2,5)

Dimensions

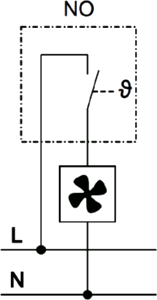

Electric scheme
