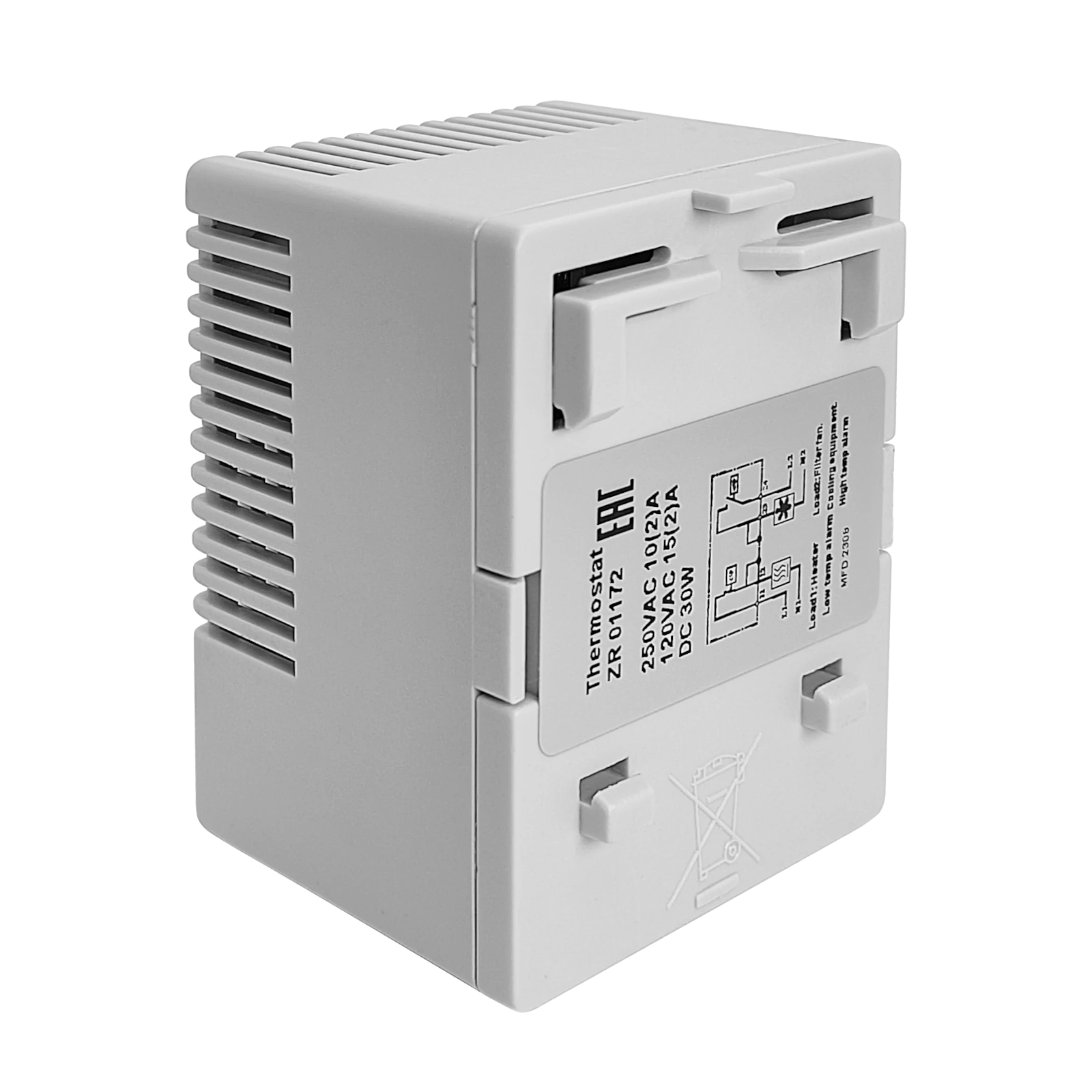

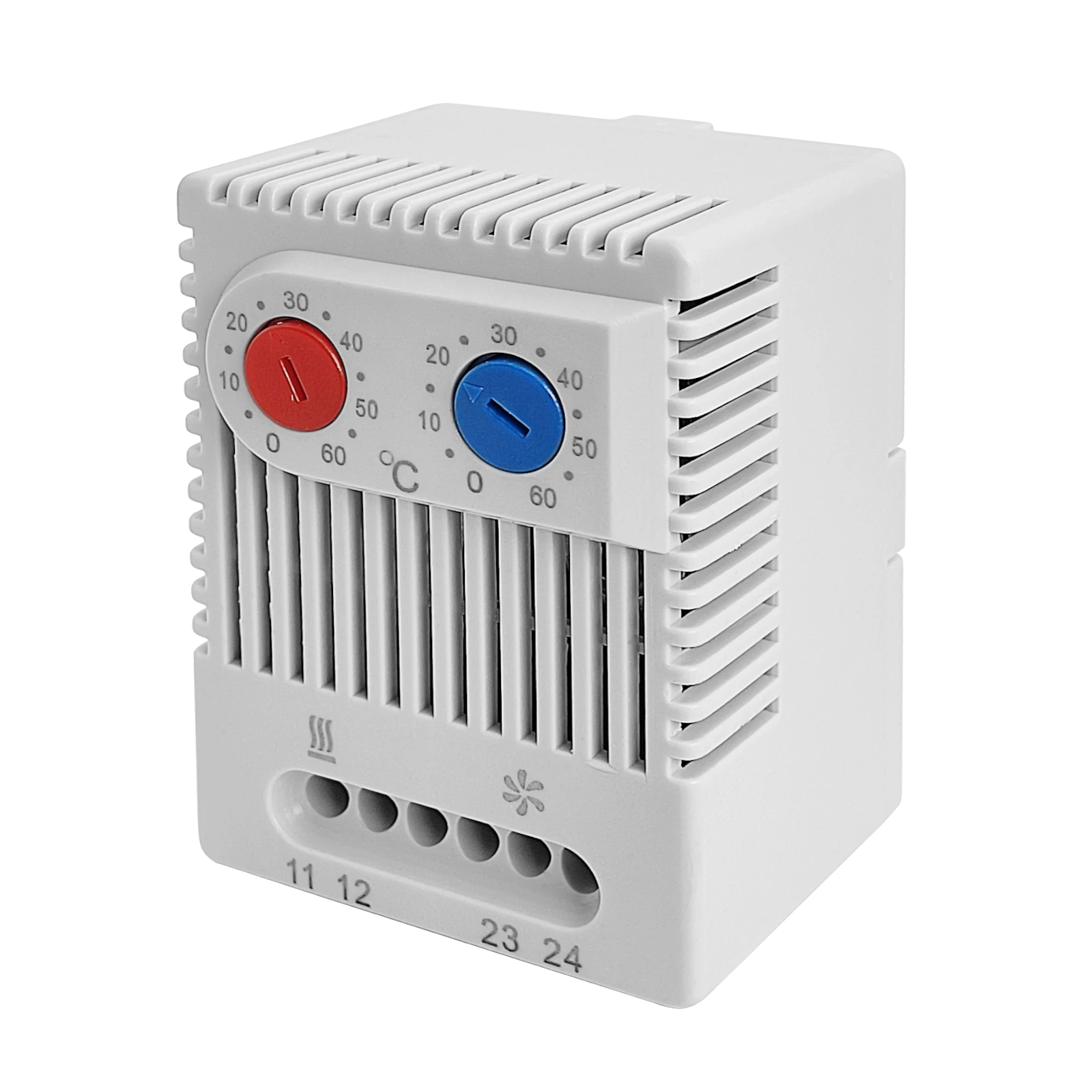

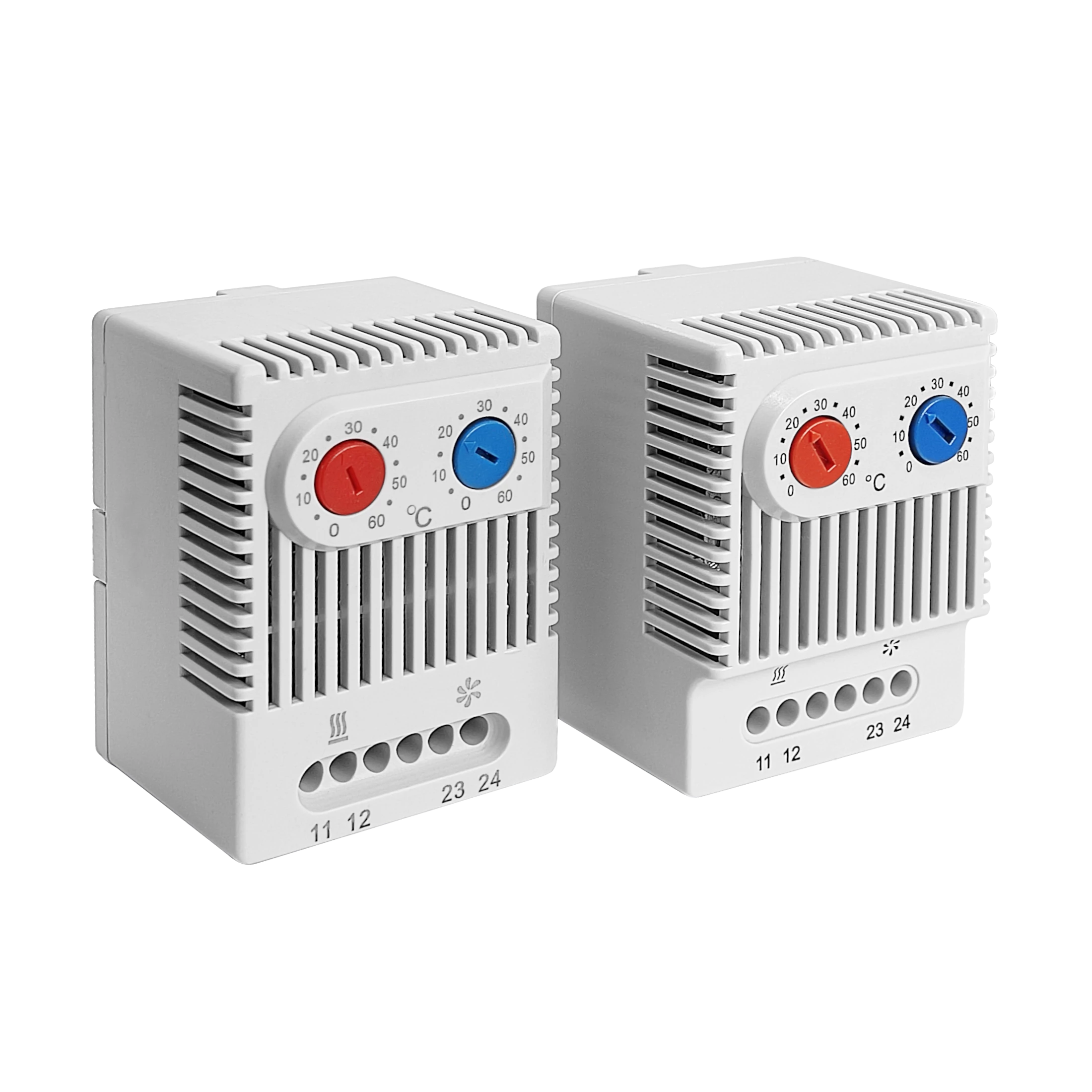

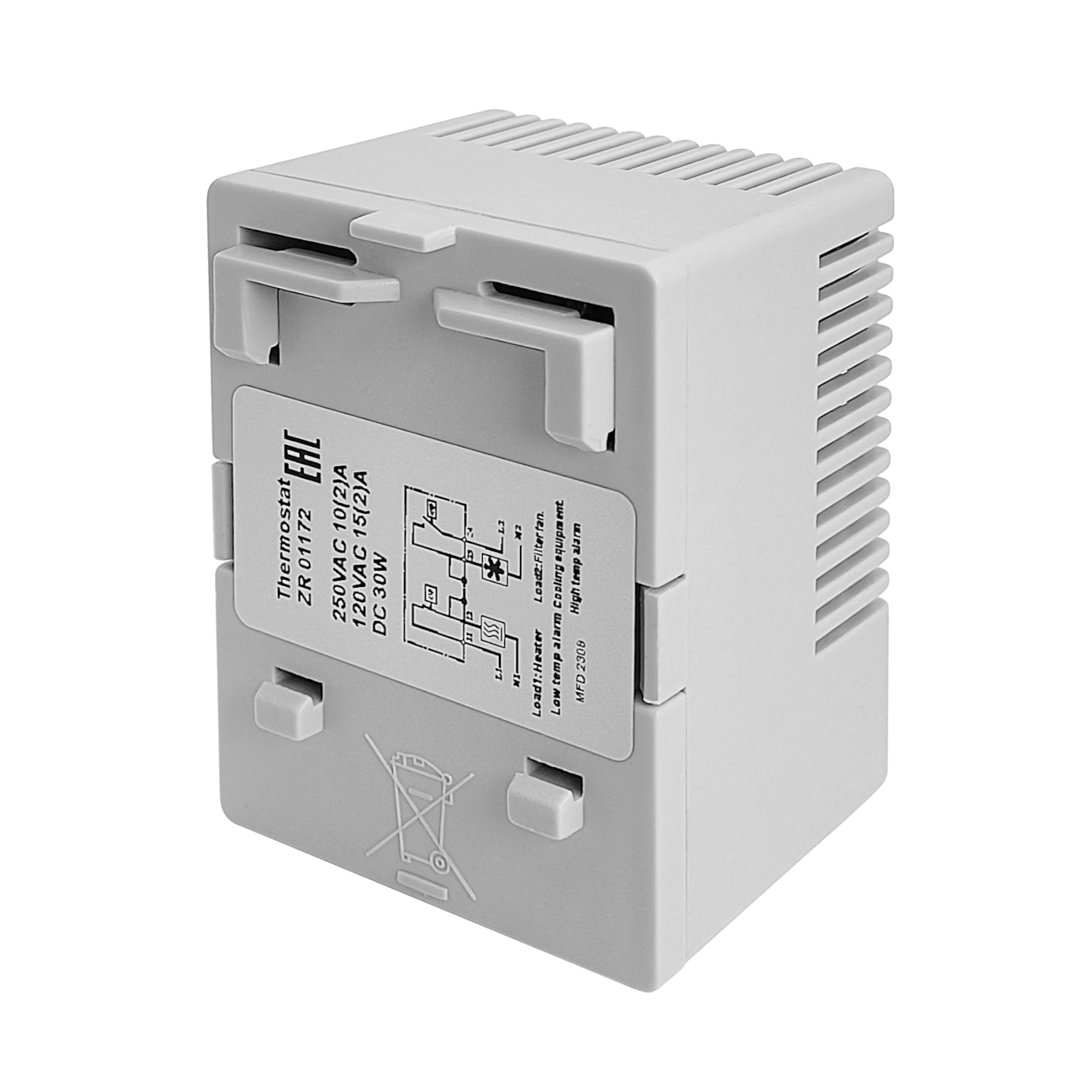

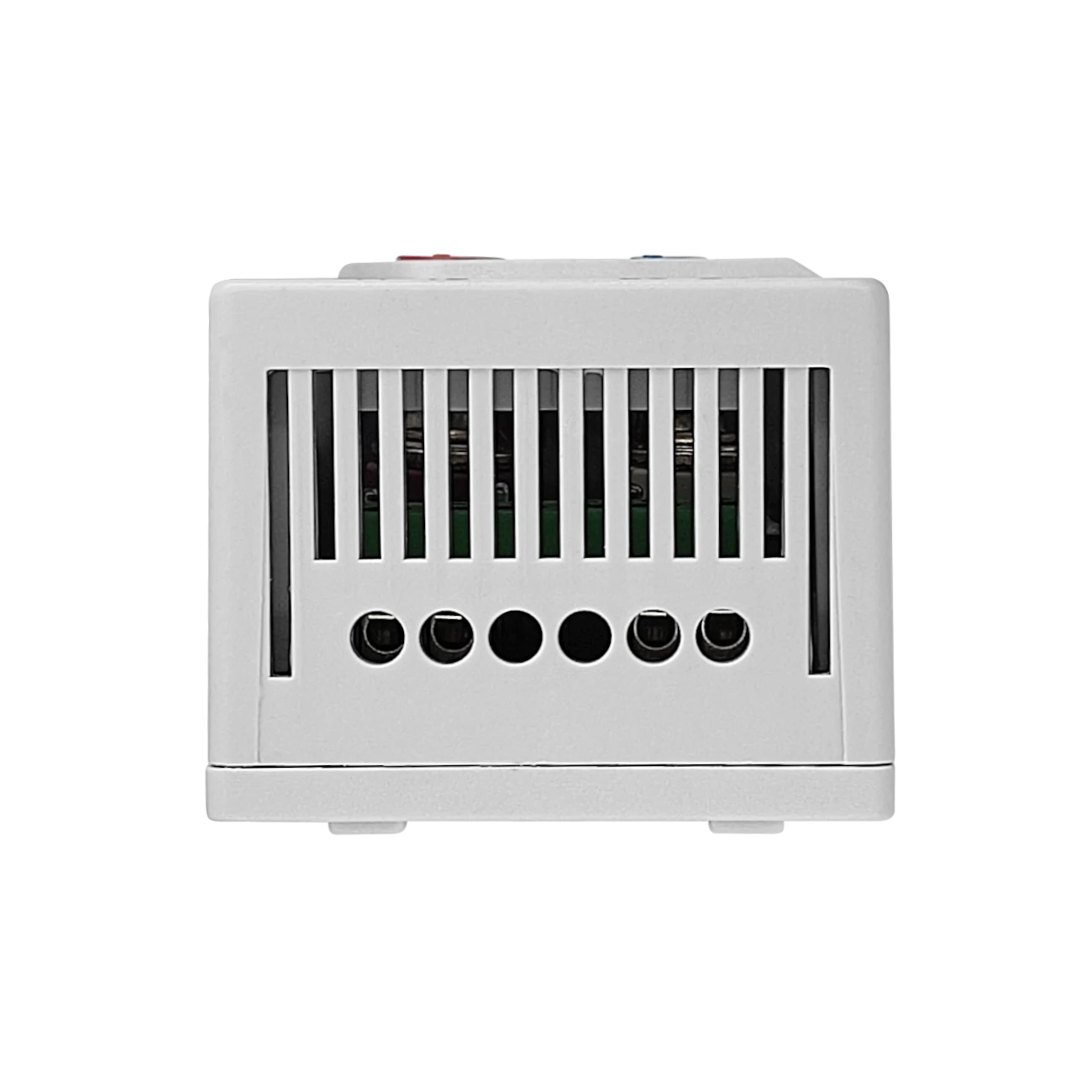

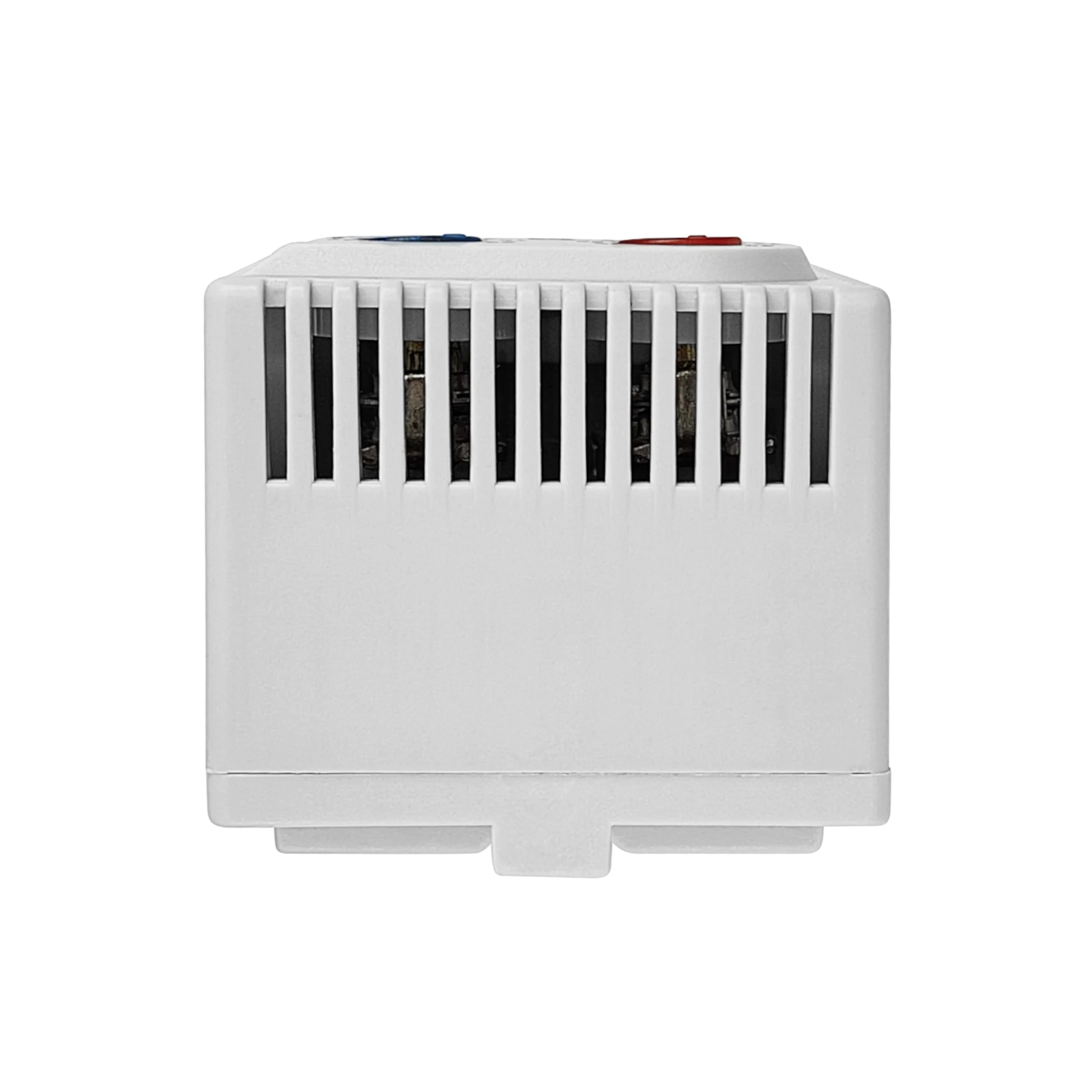

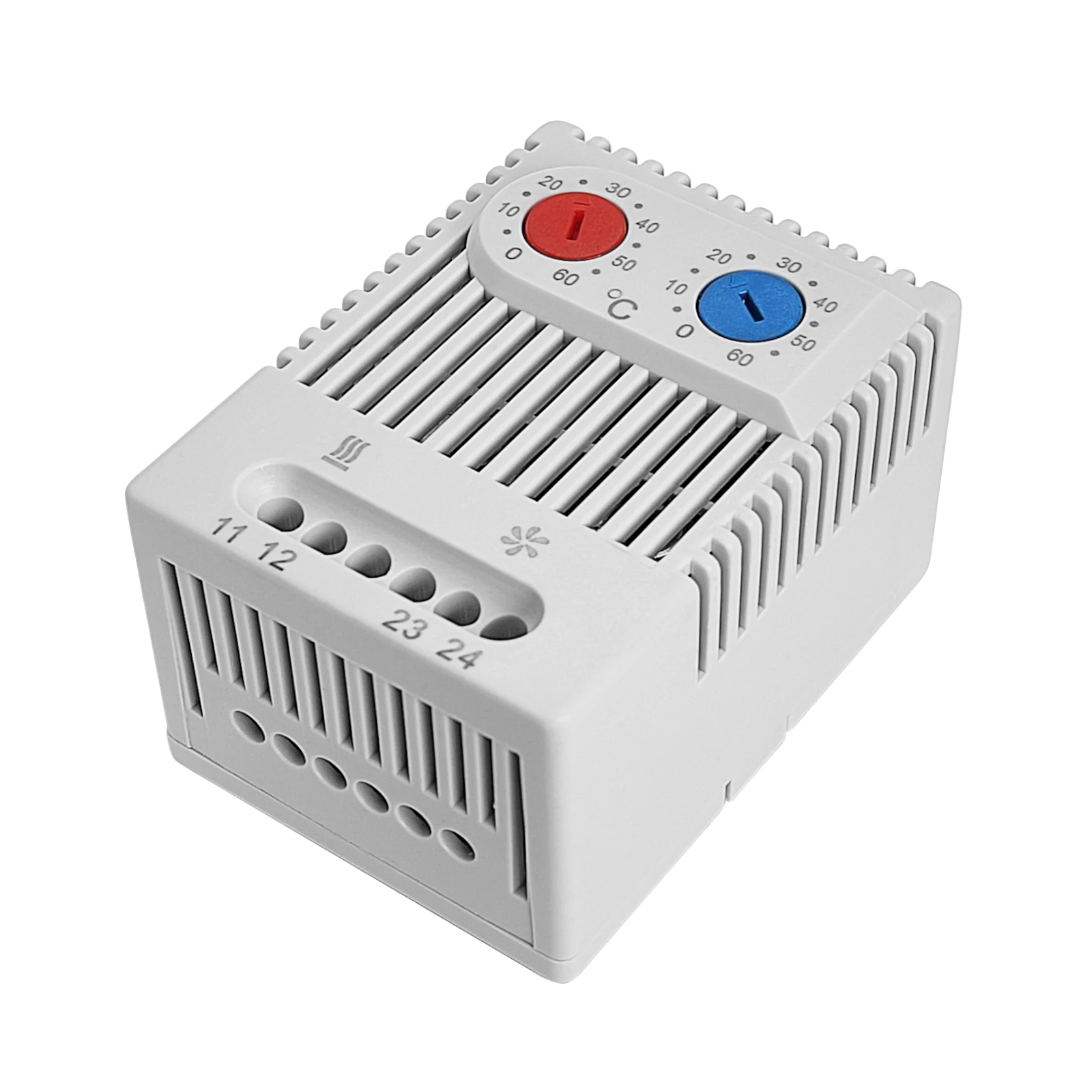

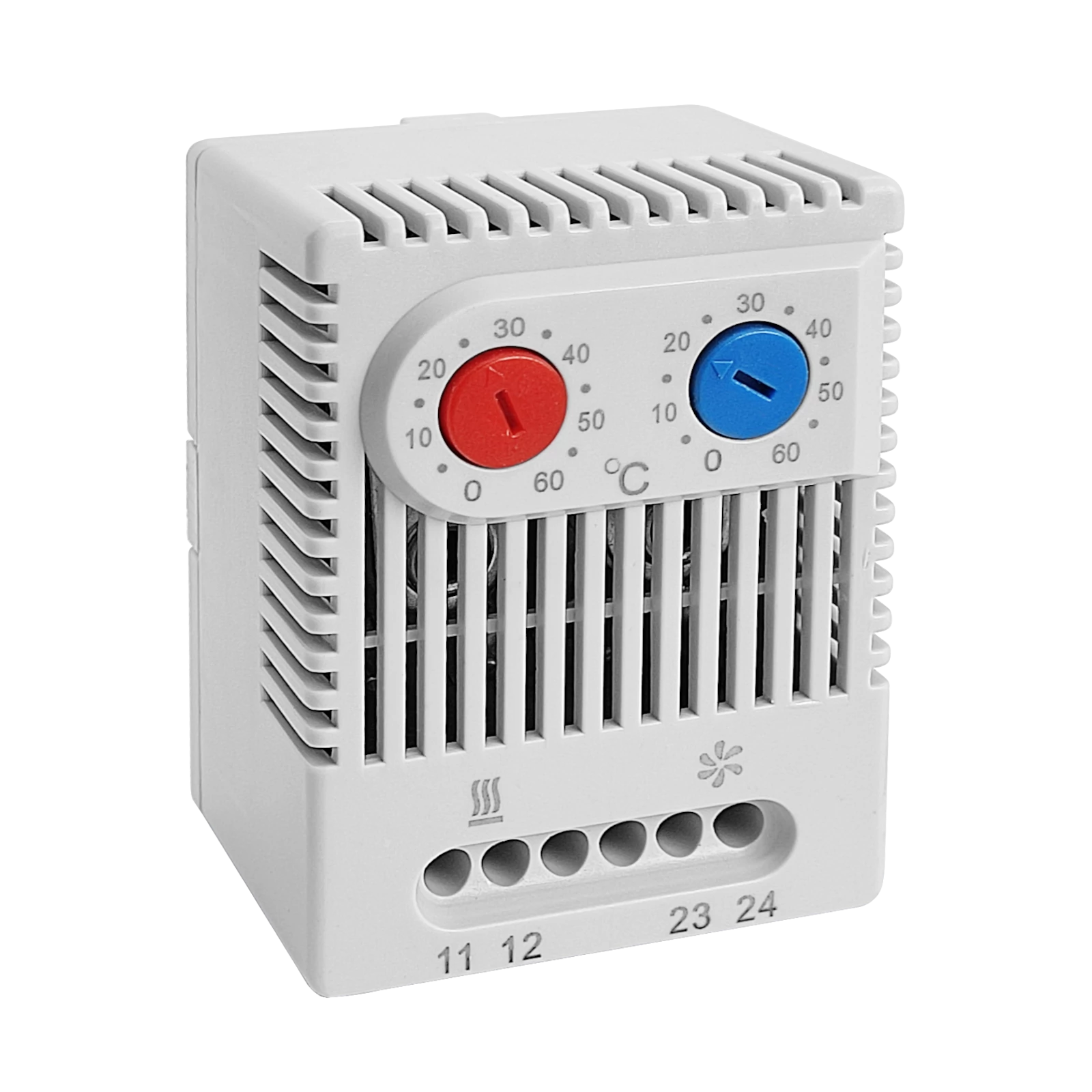

Thermostat ZR 01172

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 010.007.005

Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters. Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.

$6.98

Available: 178 pcs

Description

Technical data

Sensor element	thermostatic bimetal
Switch temperature difference	7К (±4К)
Service life	> 100 000 cycles
Connection	4-pole terminal, clamping torque 0.5Nm rigid wire 2,5mm²; stranded wire 1,5mm²
Max switching capacity	250Vас, 10 (2) A 120Vас, 15 (2) A DC 30W
Case material	PA66 UL94 V0
Operating/Storage temperature	-20...+80°С
Protection type	IP20

Dual thermostars ZR 011 series

Art. No.	Setting range, marking		Setting range, marking
01172.0-00	NC contact	0...+60°С	NO contact	0...+60°С
01172.0-01	NC contact	+32...+140°F	NO contact	+32...+140°F
01175.0-00	NC contact	-10...+50°С	NO contact	+20...+80°С
01175.0-01	NC contact	+14...+122°F	NO contact	+68...+176°F
01176.0-00*	NO contact	0...+60°С	NO contact	0...+60°С
01176.0-01*	NO contact	+32...+140°F	NO contact	+32...+140°F

* Used to control the temperature of heat exchangers and fans or to control the emergency signal in electrotechnical cabinets.

Wiring diagram

Dimensions
Dimensions of thermoregulator ZR 01172
