Auxiliary contact block 1 NO + 1 NC GVAE11

Model: 003.002.091
  • photo 3
  • photo 4

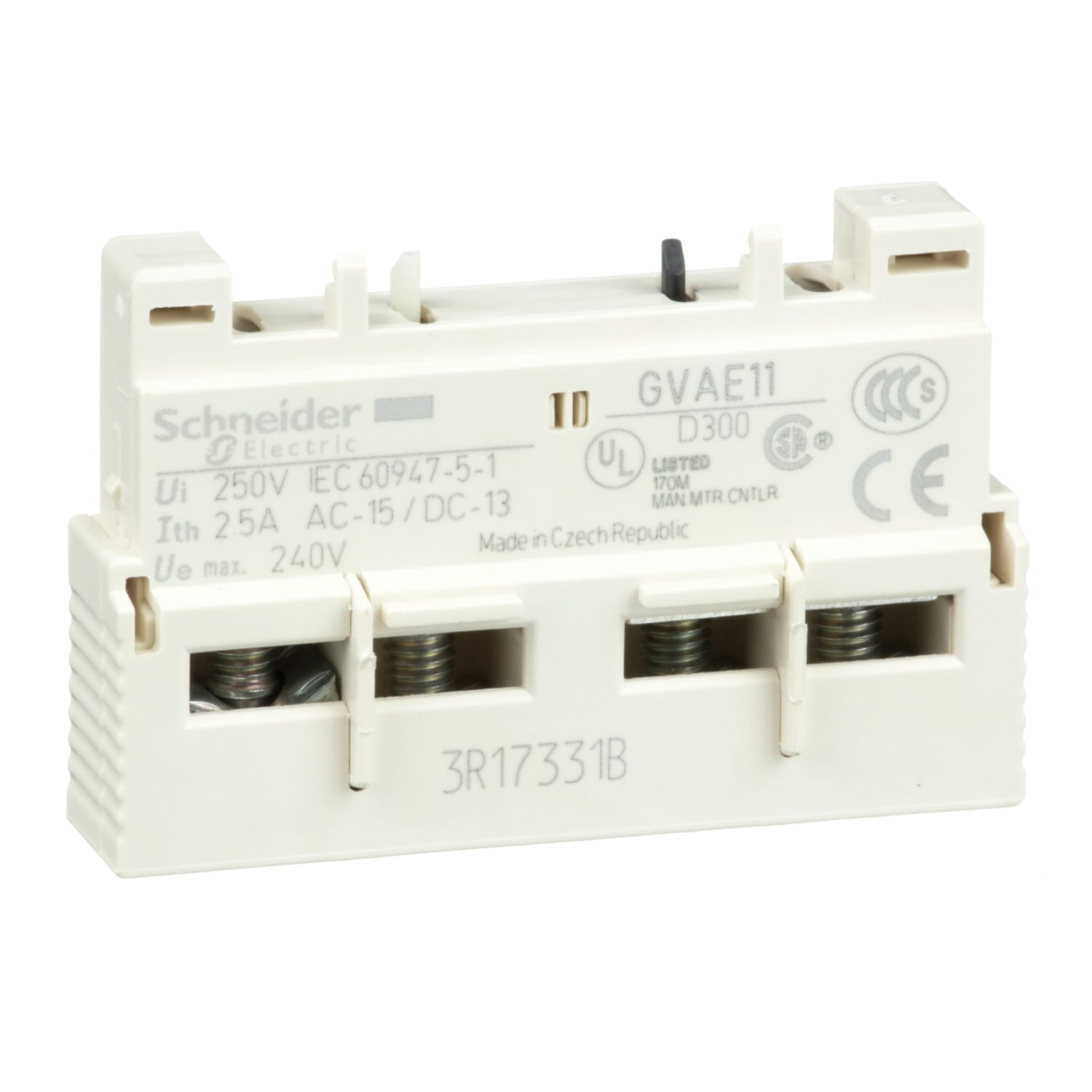

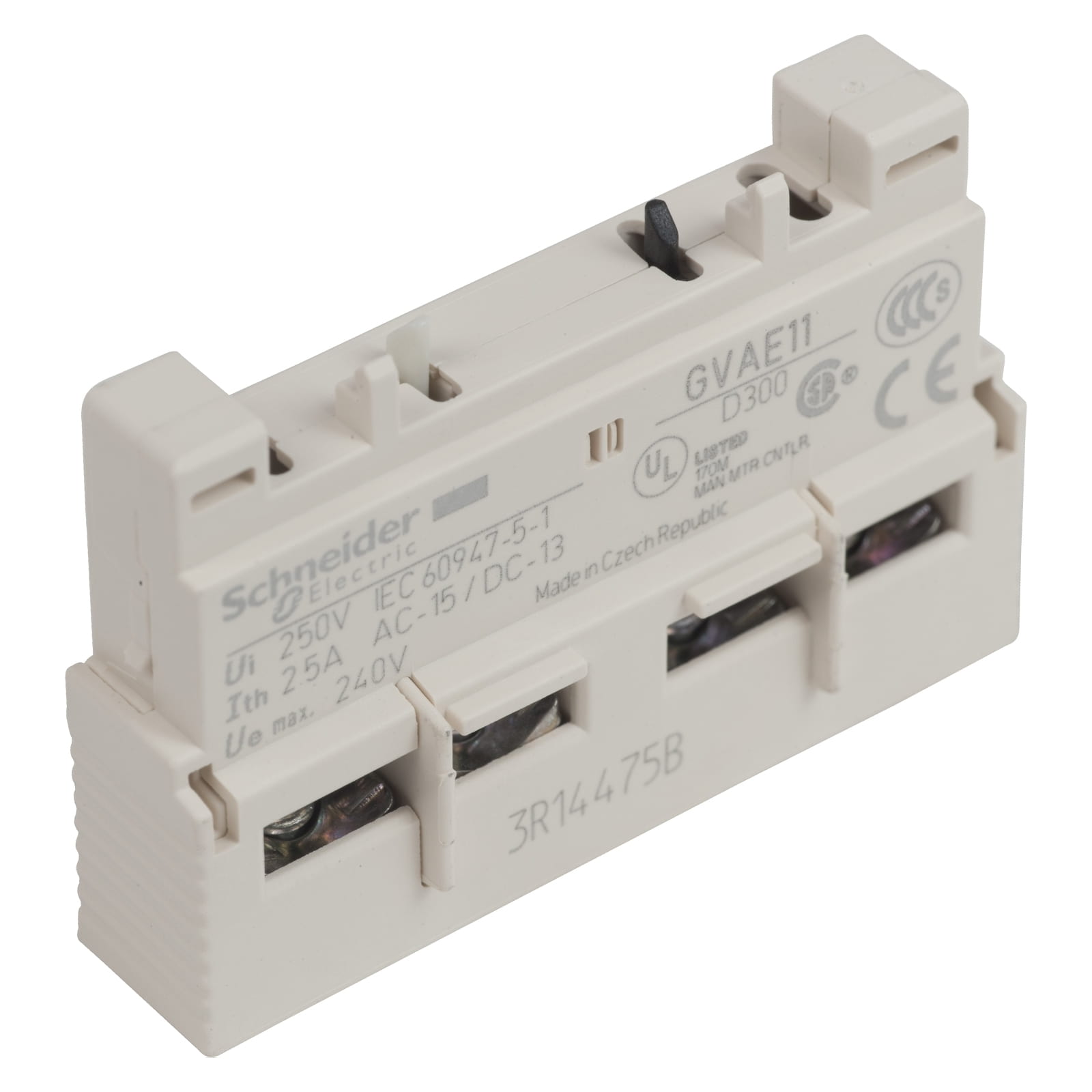

Auxiliary contact block GVAE11 1 NO + 1 NC
Manufacturer: Schneider Electric
Barcode: 3389110343434
For use with TeSys GV2, GV3 series. Mounting location - front side.
Rated operational voltage - 24...240 V AC; 24...60 V DC.
$14.80
 pcs

Main characteristics

Range
TeSys
Device short name
GVAE
Product or component type
Auxiliary contact block
Product compatibility
GV2L
GV2LE
GV2ME
GV2P
GV2RT
GV3L
GV3P
Mounting location
Front side
Pole contact composition
1 NO + 1 NC
Connections - terminalsSolid: 2 х 1...2,5 мм2 / 1 x 1...2,5 мм2
Flexible without cable end: 2 х 0,75...2,5 мм2 / 1 x 0,75...2,5 мм2
Flexible with cable end: 1 x 0,75...1,5 мм2
Quantity per set
Set of 10

Complementary characteristics

[Ui] Rated insulation voltage
300 V - conforming to UL 508
300 V - conforming to CSA C22.2 No 14
250 V - conforming to IEC 60947-1
[Ue] Rated operational voltage
24...240 V AC
24...60 V DC
[Ith] Conventional free air thermal current
2.5 A
Protection type
GG fuse 10 A
GB2CB06 circuit breaker 10 A
Mechanical durability
100000 cycles
Minimum switching current
5 mA
Minimum switching voltage
17 V
Rated operational power in VA
120 VA at 110...120 V AC-15 - electrical durability: 100000 cycles
120 VA at 230...240 V AC-15 - electrical durability: 100000 cycles
48 VA at 24 V AC-15 - electrical durability: 100000 cycles
60 VA at 48 V AC-15 - electrical durability: 100000 cycles
Rated operational power in W
15 W at 48 V DC-13 - electrical durability: 100000 cycles
24 W at 24 V DC-13 - electrical durability: 100000 cycles
9 W at 60 V DC-13 - electrical durability: 100000 cycles
Tightening torque
1.4 N.m - on screw clamp terminals
Environmental characteristic
Normal environment
