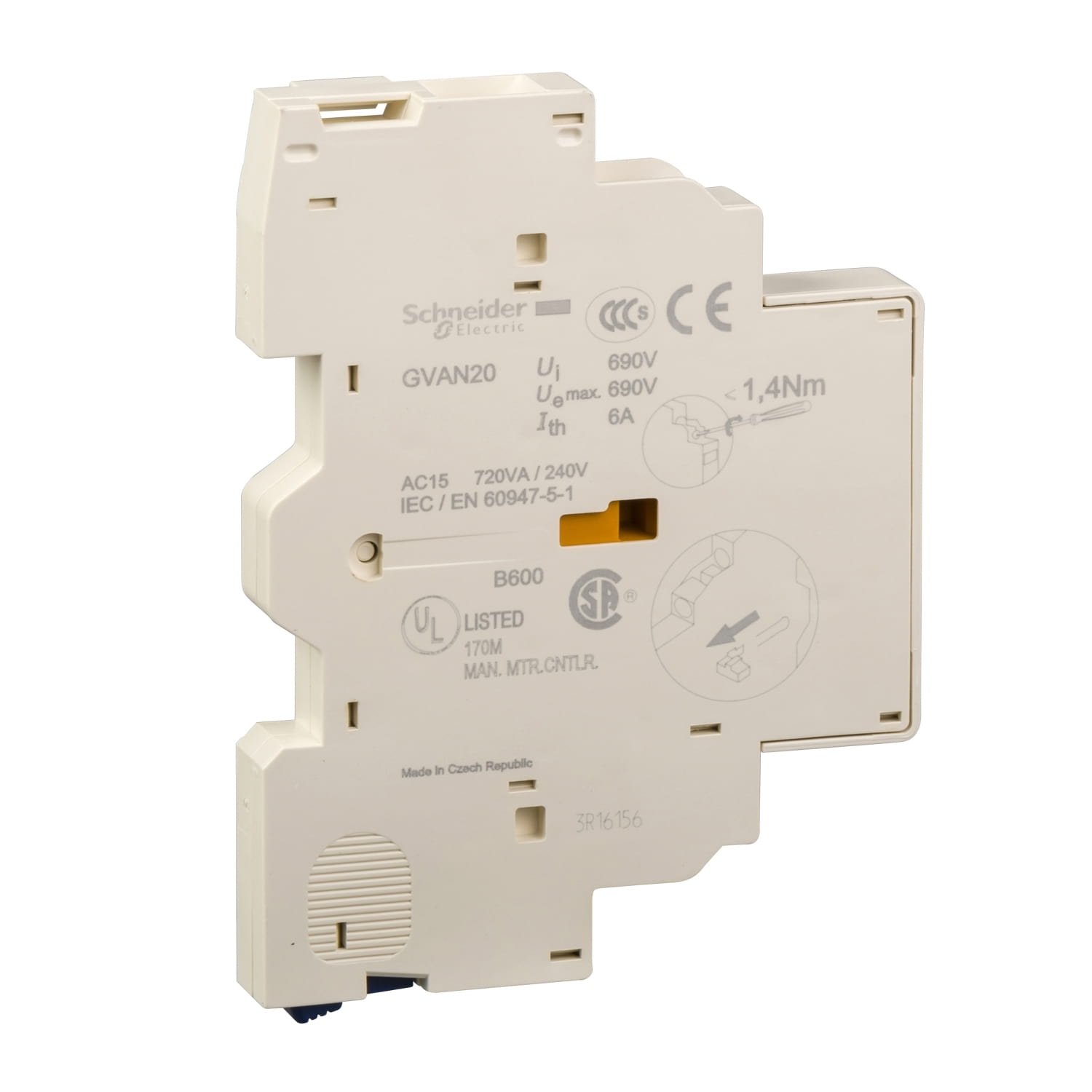

Auxiliary contact block 2 NO GVAN20

Name: GVAN20 auxiliary contact block 2 NO
Brand: Schneider Electric
SKU: 003.002.173
Price: 10.02 USD
Availability: PreOrder

Model: 003.002.173

Manufacturer: Schneider Electric

Barcode: 3389110343502

For use with TeSys GV2, GV3 series. Mounting location - left side.
Rated operational voltage 48...690 V AC; 24...240 V DC.

$10.02

pcs

Main characteristics

Range	TeSys
Device short name	GVAN
Product or component type	Auxiliary contact block
Product compatibility	GV2L GV2LE GV2ME GV2P GV2RT GV3L GV3P
Mounting location	Left side
Pole contact composition	2 NO
Connections - terminals	Solid: 2 х 1...2,5 мм² / 1 x 1...2,5 мм² Flexible without cable end: 2 х 0,75...2,5 мм² / 1 x 0,75...2,5 мм² Flexible with cable end: 1 x 0,75...1,5 мм²

[Ui] Rated insulation voltage	600 V - conforming to UL 508 600 V - conforming to CSA C22.2 No 14 690 V - conforming to IEC 60947-1
[Ue] Rated operational voltage	48...690 V AC 24...240 V DC
[Ith] Conventional free air thermal current	6 A
Protection type	GB2CB... circuit breaker rating according to operational current for Ue <= 415 V GG fuse <= 10 A
Mechanical durability	100000 cycles
Minimum switching current	5 mA
Minimum switching voltage	17 V
Rated operational power in VA	300 VA at 48 V AC-15 - electrical durability: 100000 cycles 400 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles
Rated operational power in W	120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles
Tightening torque	<= 1.4 N.m - on screw clamp terminals
Environmental characteristic	Normal environment
