Moulded case circuit breaker AM1-63L/3P 40A

Model: 013.012.302

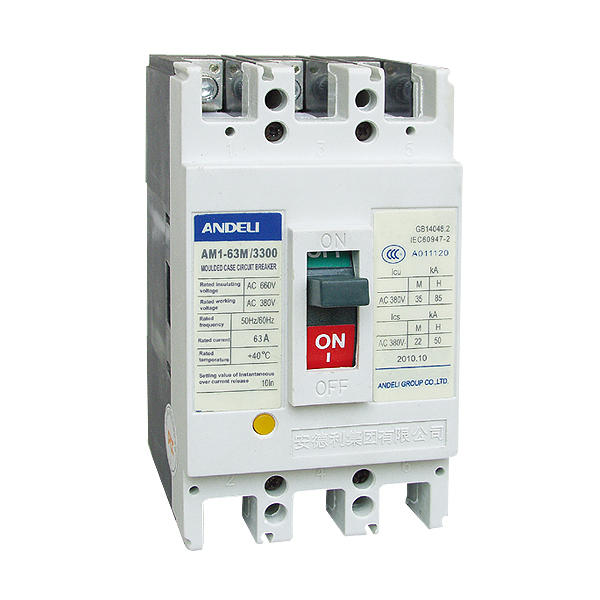

Moulded case circuit breaker AM1-63L/3P 40A
Manufacturer: Andeli
Moulded case circuit breaker AM1-63L is one of the products developed and manufactured by adopring international advanced technology. It has rated insulation voltage 500V and can be used in AC electrical circuits with frequency 50/60Hz and operational voltage up to 400V. Rated current 40A.
The product conforms to IEC 60947-2 standard.
$32.69
 pcs

Specification

Technical characteristics conform to IEC 60947-2
Number of poles3
Current typeАС
Frequency50/60Hz
Rated operational voltage Ue400V
Rated insulation voltage Ui500V
Max conventional rated thermal current Ith40A
Rated current In40A
Rated dutycontinuous
Breaking capacity Icu15kA
Rated breaking current Ics11kA (75% Icu)
Utilisation categoryA
Trip element typethermal-magnetic
Operation performance8500 - unload
1500 - load
Short circuit breaking
Operating current of magnetic release10In±20%
Circuit breaking due to overload (with inverse time delay)
Thermodynamic release at ambient temperature +40°C≥ 1h at 1,05 In (cold state)
< 1h at 1,3 In (heat state)

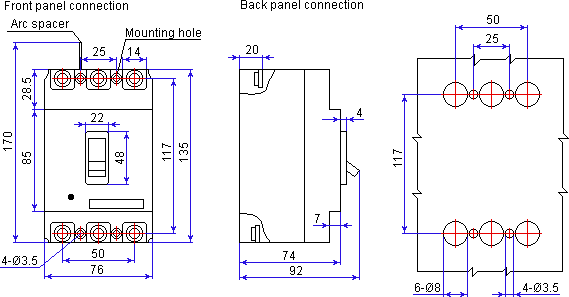

Outline and intsallation dimensions

Circuit breaker AM1-63L dimensions
Back panel connection
