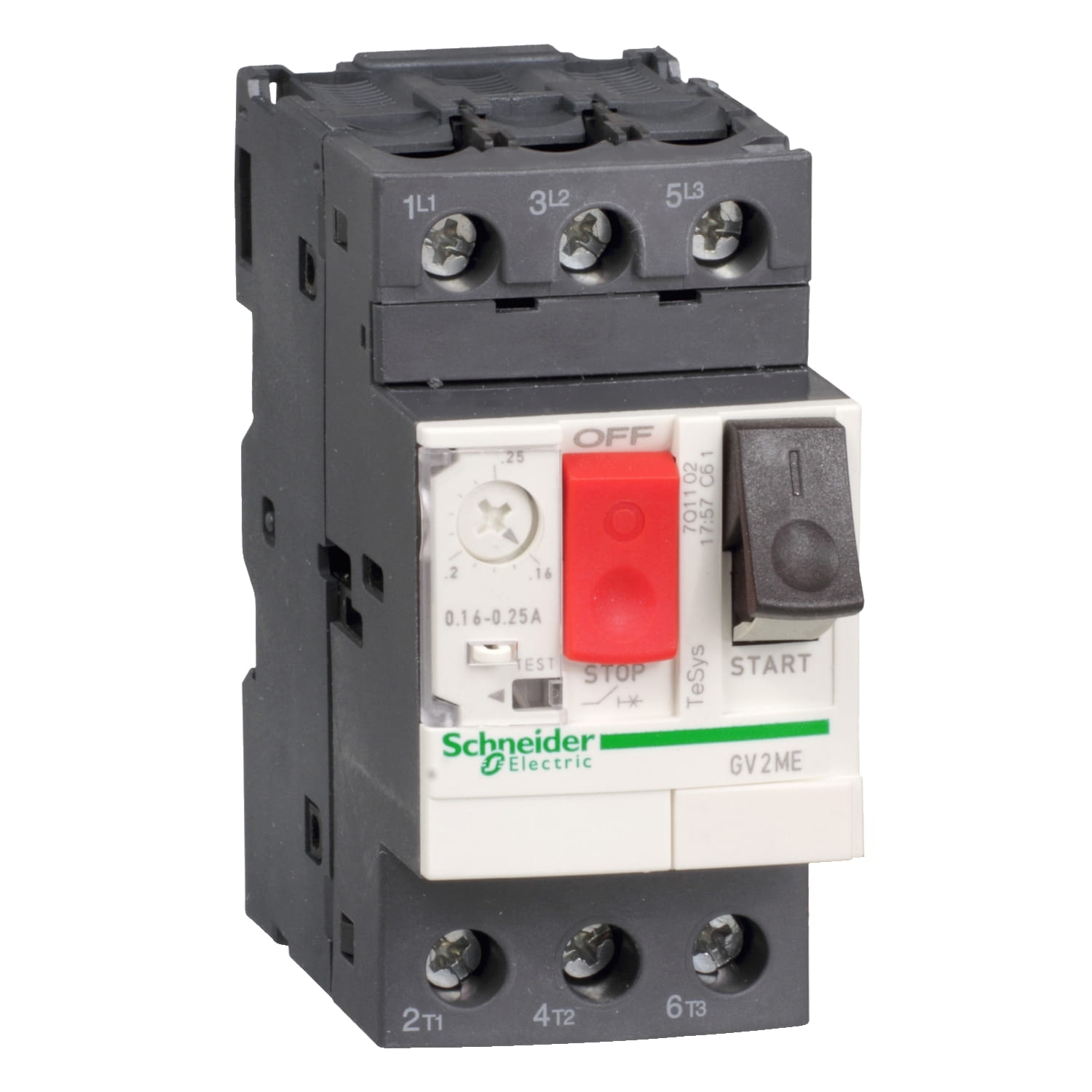

Thermal-magnetic motor circuit breaker GV2ME06

Model: 003.002.048
Thermal-magnetic motor circuit breaker GV2ME06
Manufacturer: Schneider Electric
Barcode: 3389110343052
GV2ME06 are three-pole thermal-magnetic circuit breakers specifically designed for the control and protection of motors, conforming to standards IEC 60947-2 and IEC 60947-4-1.
GV2ME06 circuit breakers are designed for connection by screw clamp terminals. They can be supplied with spring terminal connections which ensure secure, permanent and durable clamping that is resistant to harsh environments, vibration and impact and are even more effective when conductors without cable ends are used. Each connection can take two independent conductors.
Pushbutton control. Energisation is controlled manually by operating the start button "I". De-energisation is controlled manually by operating the stop button "O", or automatically by the thermal-magnetic protection elements or by a voltage trip attachment.
☎ Price by call
Main characteristics
RangeTeSys
Product nameTeSys GV2
Device short nameGV2ME
Device applicationMotor
Trip unit technologytdermal-magnetic
Complementary characteristics
Poles description3P
Network typeAC
Utilisation categoryAC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2
Network frequency50/60 Hz conforming to IEC 60947-4-1
Fixing mode35 mm symmetrical DIN rail: clipped
Panel: screwed (witd adaptor plate)
Operating positionAny position
Motor power kW0.37 kW at 400/415 V AC 50/60 Hz
0.37 kW at 500 V AC 50/60 Hz
0.75 kW at 690 V AC 50/60 Hz
0.55 kW at 400/415 V AC 50/60 Hz
0.55 kW at 500 V AC 50/60 Hz
0.75 kW at 500 V AC 50/60 Hz
1.1 kW at 690 V AC 50/60 Hz
Breaking capacity100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] Rated service short-circuit breaking capacity100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control typePush-button
[In] Rated current1.6 A
tdermal protection adjustment range1…1.6 A
Magnetic tripping current22.5 A
[Ue] Rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] Rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Itd] Conventional free air tdermal current1.6 A conforming to IEC 60947-4-1
[Uimp] Rated impulse witdstand voltageIEC 60947-2 6 kV
Power dissipation per pole2.5 W
Mechanical durability100000 cycles
Electrical durability100000 cycles for AC-3 at 440 V
Maximum operating rate25 cyc/h
Rated dutyContinuous conforming to IEC 60947-4-1
Connections - terminalsScrew clamp terminals 2 cable(s) 1…6 mm² solid
Screw clamp terminals 2 cable(s) 1.5…6 mm² flexible witdout cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible witd cable end
Tightening torque1.7 N.m on screw clamp terminals
Suitability for isolationYes conforming to IEC 60947-1
Phase failure sensitivityYes conforming to IEC 60947-4-1
Height89 mm
Widtd45 mm
Deptd78.5 mm
Environment
StandardsEN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1
Product certificationsIECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA
Protective treatmenttd
IP degree of protectionIP20 conforming to IEC 60529
IK degree of protectionIK04
Ambient air temperature for operation-20…60 °C
Ambient air temperature for storage-40…80 °C
Fire resistance960 °C conforming to IEC 60695-2-1
Operating altitude2000 m

Dimensions

Basic dimensions GV2ME
Electrical clearance X1=40mm for Ue≤ 690V

Scheme

Electrical scheme GV2ME
