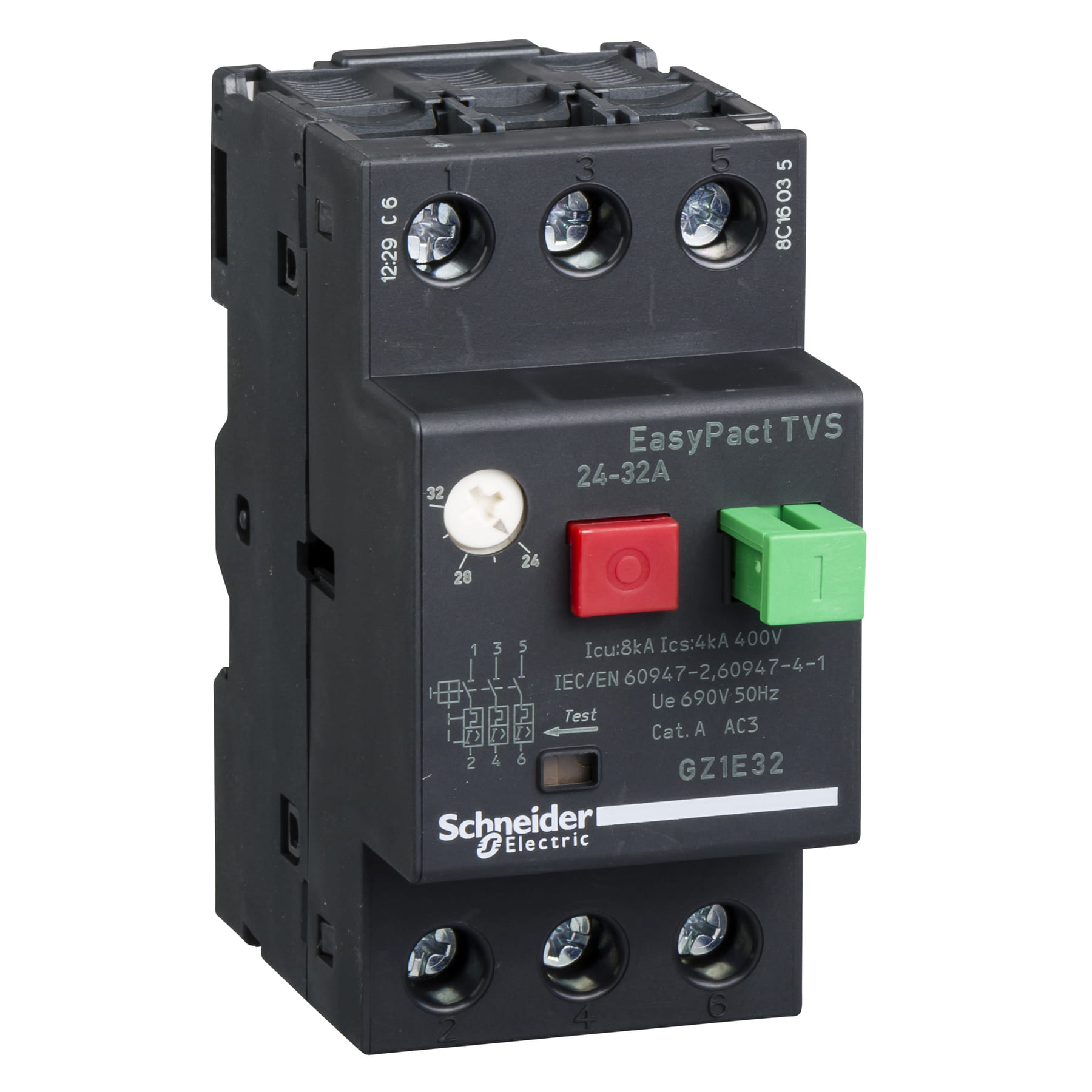

Motor Circuit Breaker EasyPact GZ1E32

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 003.002.015

Manufacturer: Schneider Electric

Barcode: 3606480567919

Three-pole circuit breaker GZ1E32 is designed for control and protection of electric motors with power of 15kW (at 400V AC-3) against overload and short circuit. Thermal protection adjustment range is 24 ... 32 A. Motor protection is provided by a thermal-magnetic release built into the circuit breaker.

☎ Price by call

Main

Range	EasyPact
Product name	EasyPact TVS
Device short name	GZ1E
Product or component type	Circuit breaker
Device application	Motor
Trip unit technology	Thermal-magnetic
Suitability for isolation	Yes conforming to IEC 60947-1 appendix 7.1.6
Colour	Grey (RAL 7011)

Complementary

Poles description	3P
Network type	AC
Utilisation category	AC-3
Network frequency	50/60 Hz conforming to IEC 60947-2
Mounting mode	By clips By screws
Mounting support	Rail
Mounting position	Any position
Motor power kW	22 kW at 690 V AC 50/60 Hz 7.5 kW at 230 V AC 50/60 Hz 15 kW at 400 V AC 50/60 Hz 15 kW at 440 V AC 50/60 Hz 18.5 kW at 500 V AC 50/60 Hz
Breaking capacity	Icu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 10 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 30 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: 3 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control type	Push-button
Thermal protection adjustment range	24…32 A
Magnetic tripping current	416 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Power dissipation	2.5 W (per pole)
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3
Maximum operating rate	25 cyc/h
Connections - terminals	Screw clamp terminals 2 1…6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Height	89 mm
Width	44.5 mm
Depth	78 mm
Net weight	0.26 kg

Environment

Standards	IEC 60947-2 IEC 60947-4
Protective treatment	TH
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…80 °C
Fire resistance	960 °C conforming to IEC 60695-2-1
Operating altitude	2000 m

Dimensions

X1: electrical clearance = 40 mm for U_e≤ 690V.

Scheme

Magnetic motor circuit breakers EasyPact TVS GZ1E

Reference	Standard power ratings of 3-phase motors 50/60 Hz in category AC-3					Setting range of thermal trips	Magnetic tripping current Id ± 20 %
	230 V	400 V	440 V	500 V	690 V	Setting range of thermal trips	Magnetic tripping current Id ± 20 %
	kW	kW	kW	kW	kW	A	A
GZ1E01	-	-	-	-	-	0.1...0.16	1.5
GZ1E02	-	-	-	-	-	0.16...0.25	2.4
GZ1E03	-	-	-	-	-	0.25...0.40	5
GZ1E04	-	-	-	-	0.37	0.40...0.63	8
GZ1E05	-	-	-	0.37	0.55	0.63...1	13
GZ1E06	-	0.37	0.55	0.75	1.1	1...1.6	22.5
GZ1E07	0.37	0.75	1.1	1.1	1.5	1.6...2.5	33.5
GZ1E08	0.75	1.5	1.5	2.2	3	2.5...4	51
GZ1E10	1.1	2.2	3	3.7	4	4...6.3	78
GZ1E14	2.2	4	4	5.5	7.5	6...10	138
GZ1E16	-	5.5	5.5	9	11	9...14	170
GZ1E20	4	7.5	9	10	15	13...18	223
GZ1E21	5.5	9	11	11	18.5	17...23	327
GZ1E22	5.5	11	11	15	22	20...25	327
GZ1E32	7.5	15	15	18.5	22	24...32	416
