Residual current circuit breaker Easy9 EZ9D53625 1P+N 25A 30mA C A 4.5kA 230V

Model: 003.011.514

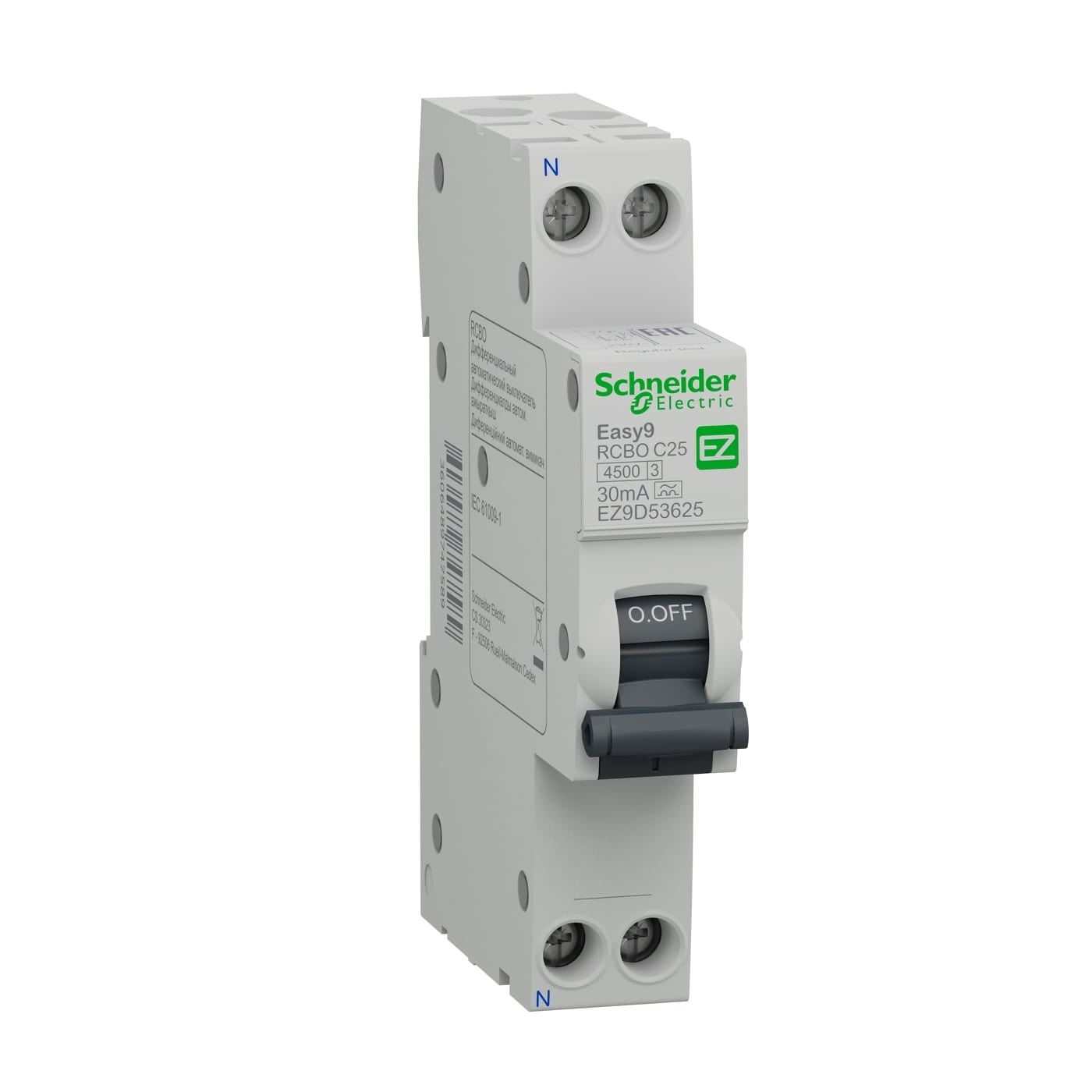

Residual current circuit breaker Easy9 EZ9D53625
Manufacturer: Schneider Electric
Differential automatic machine Easy9 EZ9D53625 is designed to perform the following functions:
  • protection of circuits against short-circuit currents
  • overload current protection
  • protection of people from electric shock (sensitivity 30 mA)
  • combine the functions of a circuit breaker and a residual current circuit breaker (RCCB)
  • protection provides both in the absence and in the presence of grounding (PE-conductor)
  • saves space in the dashboard, because take only 1 module 18 mm wide
Main characteristics:
  • rated current - 25A
  • trip curve - C
  • single-pole circuit breaker + neutral
  • breaking capacity - 4.5kA
  • class of protection against leakage current - А
  • sensitivity of protection against leakage current - 30mA
$42.34
 pcs

Main

rangeEasy9
product or component typeResidual current breaker with overcurrent protection (RCBO)
device short nameEasy9 RCBO
Poles1P + N
neutral positionLeft
[In] rated current25 A
network typeAC
trip unit technologyThermal-magnetic
curve codeC
earth-leakage sensitivity30 mA
earth-leakage protection time delayInstantaneous
earth-leakage protection classType A
breaking capacity4500 A Icn at 230 V AC 50/60 Hz

Complementary

device applicationDistribution
device location in systemOutgoer
network frequency50/60 Hz
[Ue] rated operational voltage230 V AC
magnetic tripping limit5...10 x In
limitation class3
[Ui] rated insulation voltage400 V
[Uimp] rated impulse withstand voltage4 kV
contact position indicatorYes
control typeToggle
mounting supportDIN rail
9 mm pitches2
height93 mm
width18 mm
depth69.5 mm
net weight0.136 kg
mechanical durability10000 cycles
electrical durability4000 cycles
connections - terminalsTunnel type terminal (upstream) 1…16 mm² rigid or flexible
Tunnel type terminal (downstream) 1…10 mm² rigid or flexible
tightening torque2 N.m top or bottom
earth-leakage protectionIntegrated

Environment

standardsIEC 61009-1
IP degree of protectionIP20
IP40 (modular enclosure)
tropicalisation2 conforming to IEC 60068-2-30
relative humidity95 % at 55 °C
ambient air temperature for operation-25…55 °C
ambient air temperature for storage-40…85 °C

RCBO's dimensions

Easy9 RCBO's dimensions

Range of compact residual current circuit breakers (RCBO) Easy9

Type AC A
Sensitivity 10 mA 30 mA 30 mA
Rated current, A 6 EZ9D33606
10 EZ9D33610
16 EZ9D63616 EZ9D33616 EZ9D53616
20 EZ9D33620
25 EZ9D33625 EZ9D53625
32 EZ9D33632
General characteristics
Curve code Curve C
No. voltage (Ue) 230 VAC current, 50/60 Hz
Breaking capacity 4.5 kA
Number of modules W = 9 mm 2

Trip curves

Trip curves Easy9
