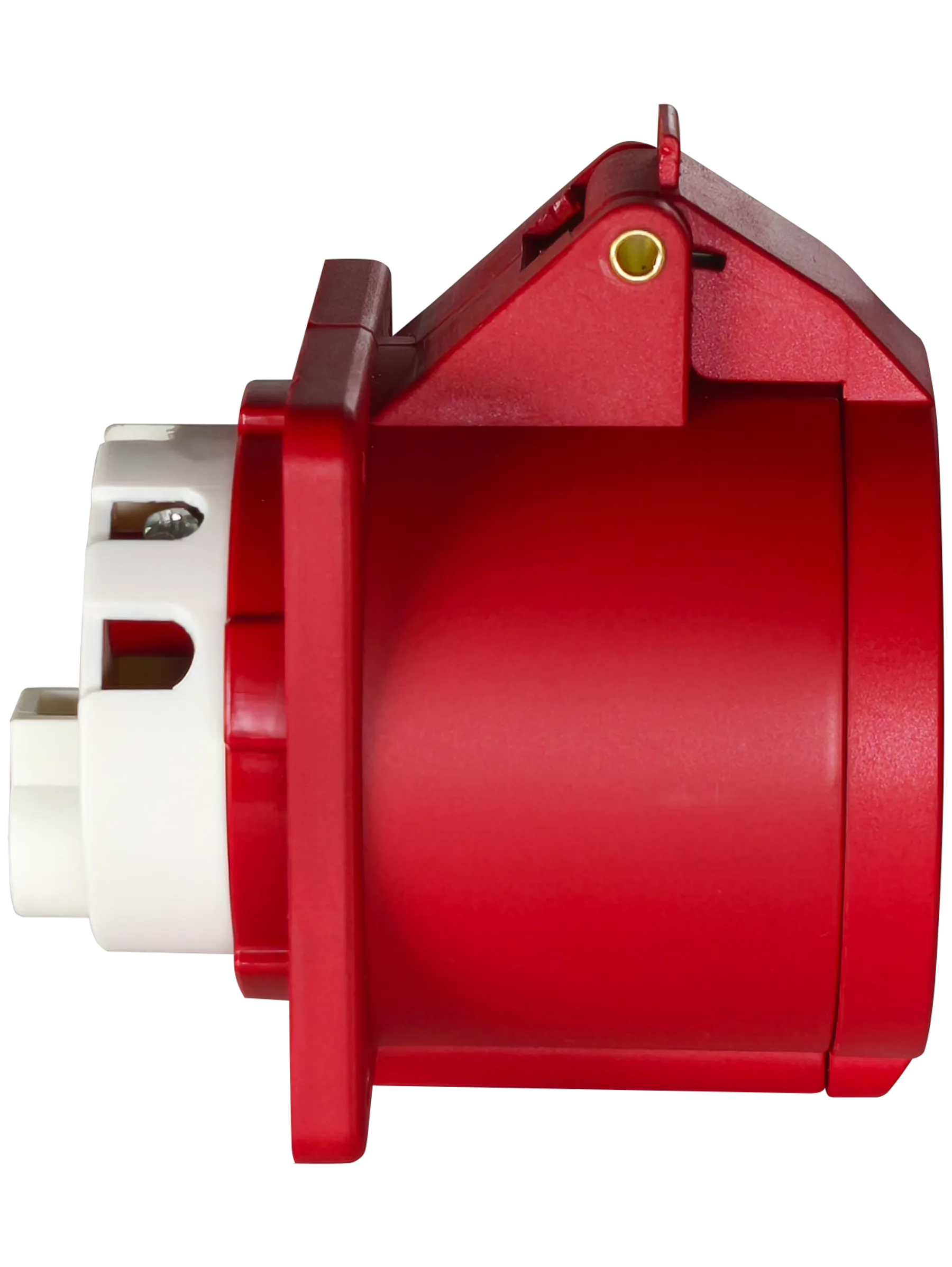

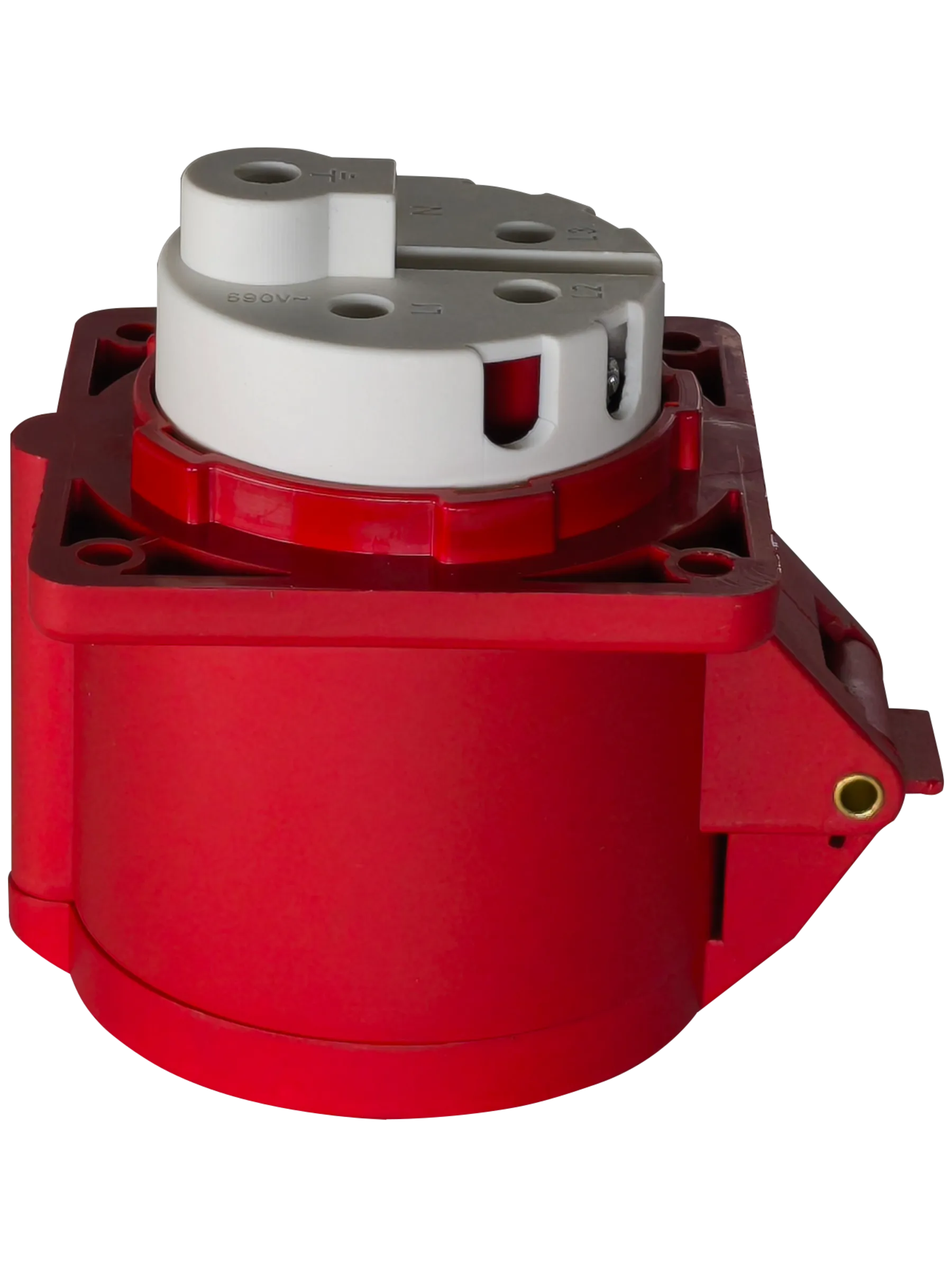

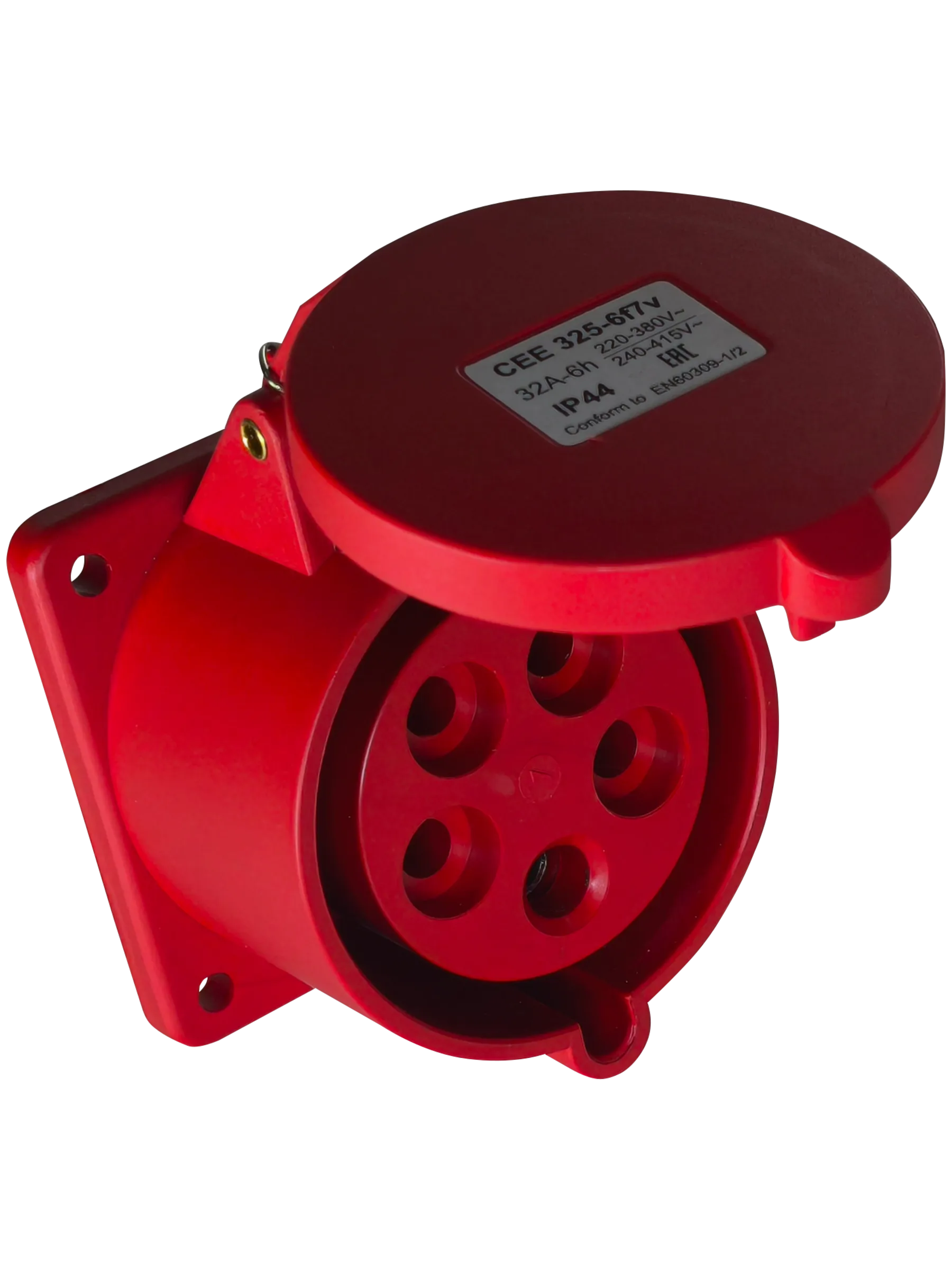

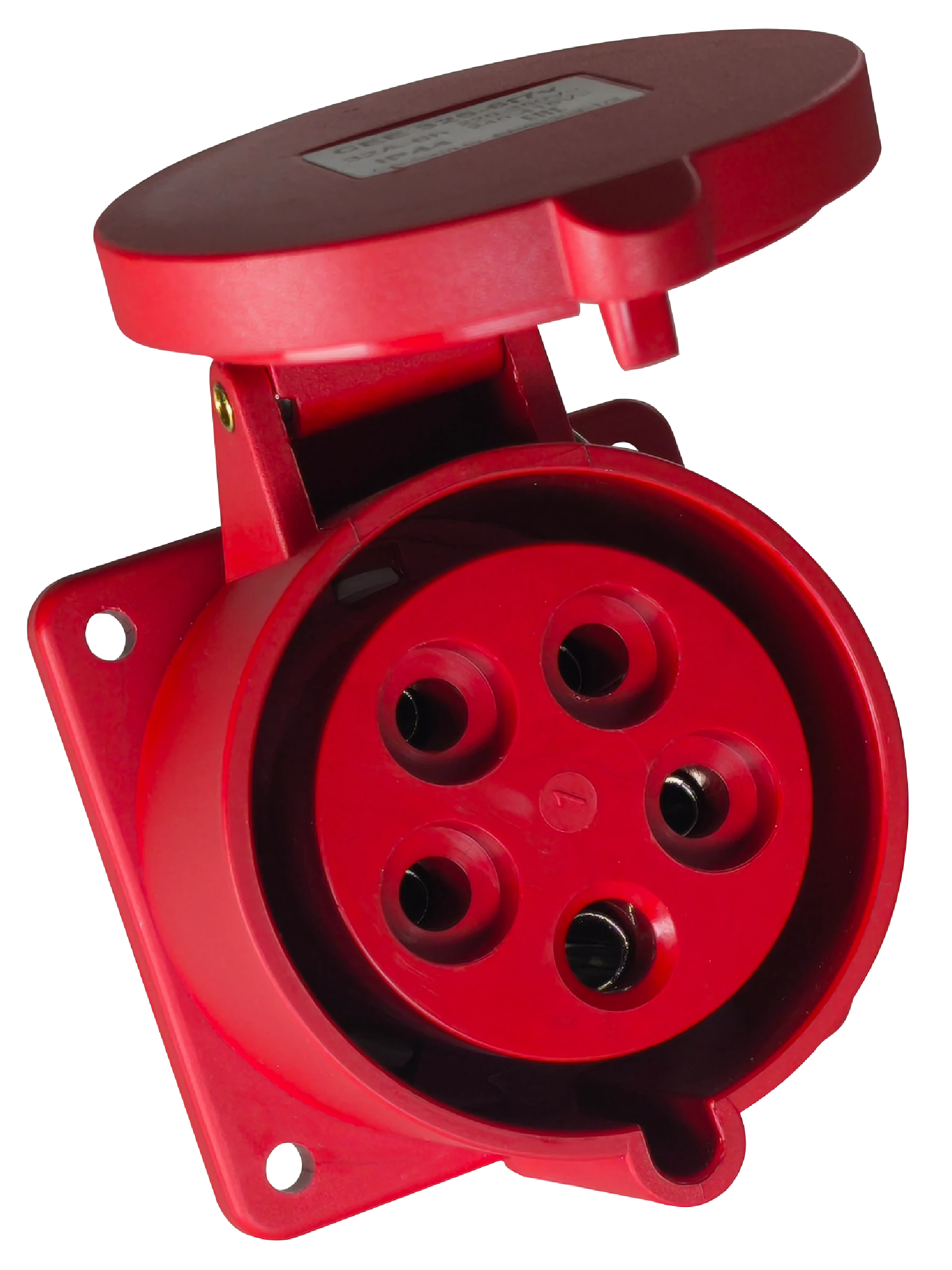

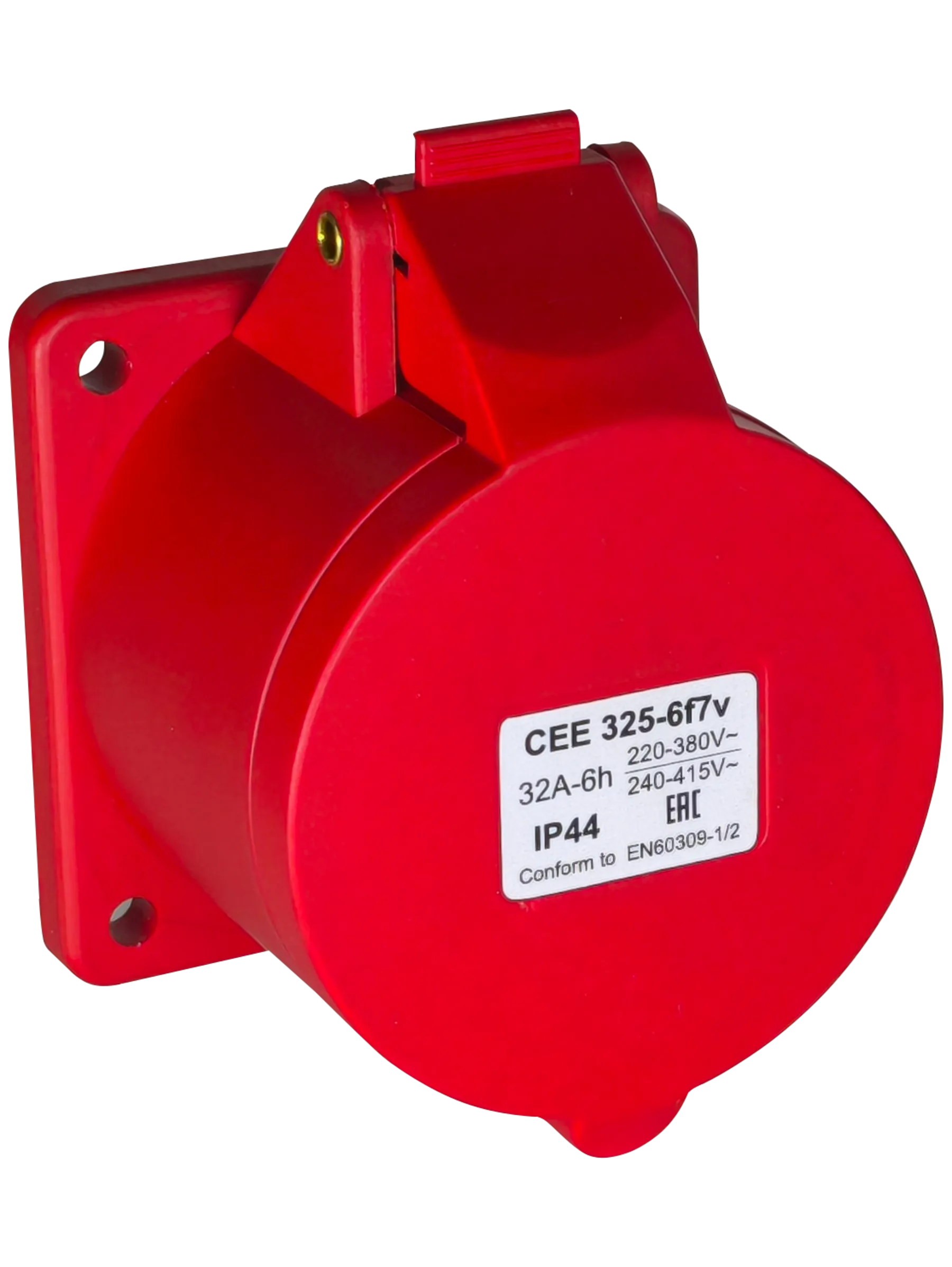

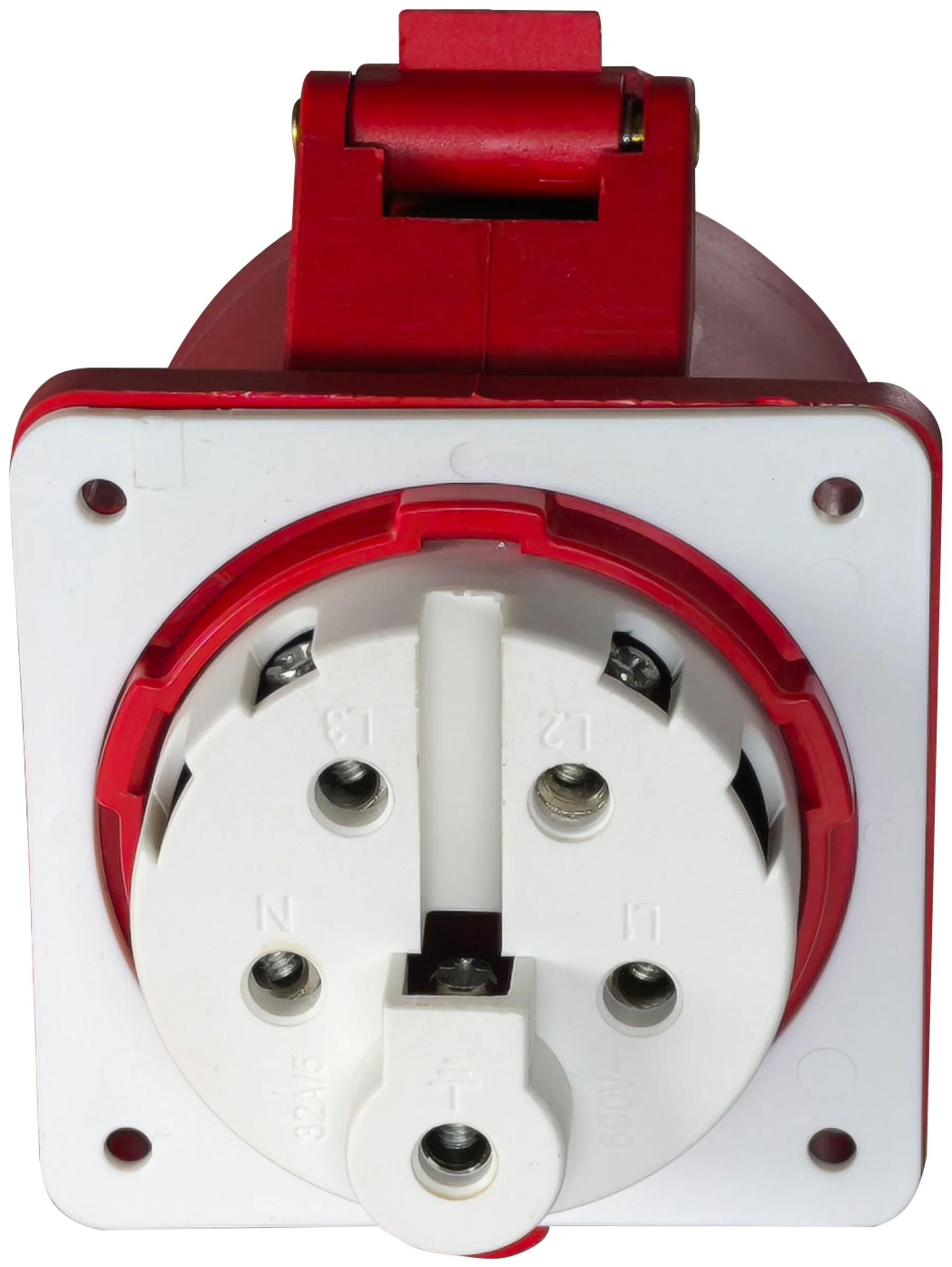

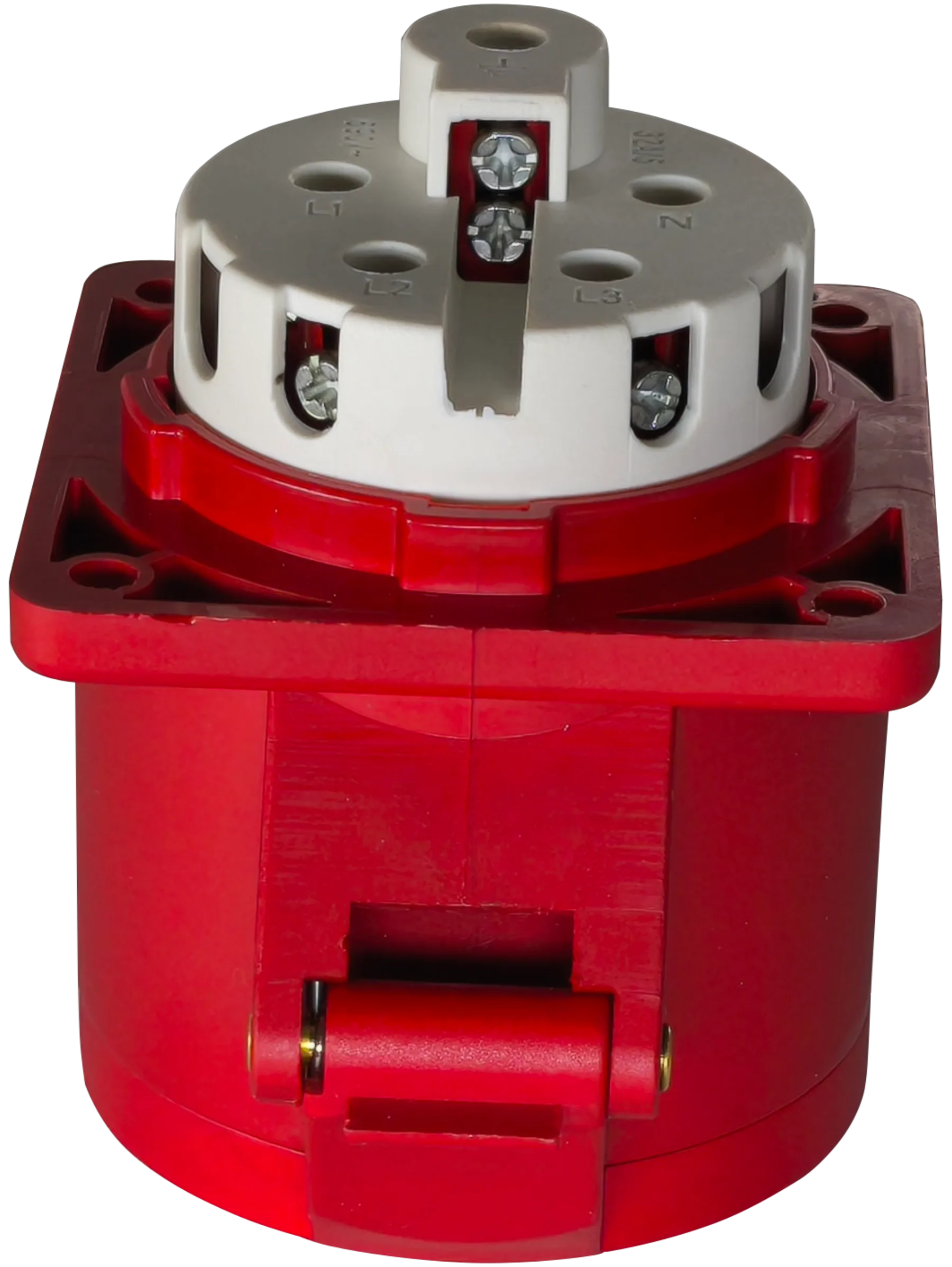

Socket CEE 325-6f7v 32A 3P+N+E IP44

Model: 009.001.014
Socket CEE 325-6f7v 32A 3P+N+E IP44
Flange-mounted socket CEE 325-6f7v 32A 400V 3P+N+E IP44 can be installed in electrical cabinets and cable ducts to connect electrical equipment to three-phase circuits.
Degree of protection IP44 - splashproof design.
Socket body material - PA6.
Nickel-plated contacts.
Price by call
 pcs

Technical data

Poles3P+N+E
Rated current32 А
Rated voltage400V ~
Ground contact position6h
Contacts materialnickel-plated brass
Housing materialPA6
Degree of protectionIP44

Dimensions

Dimension of socket CEE 315-6f7
