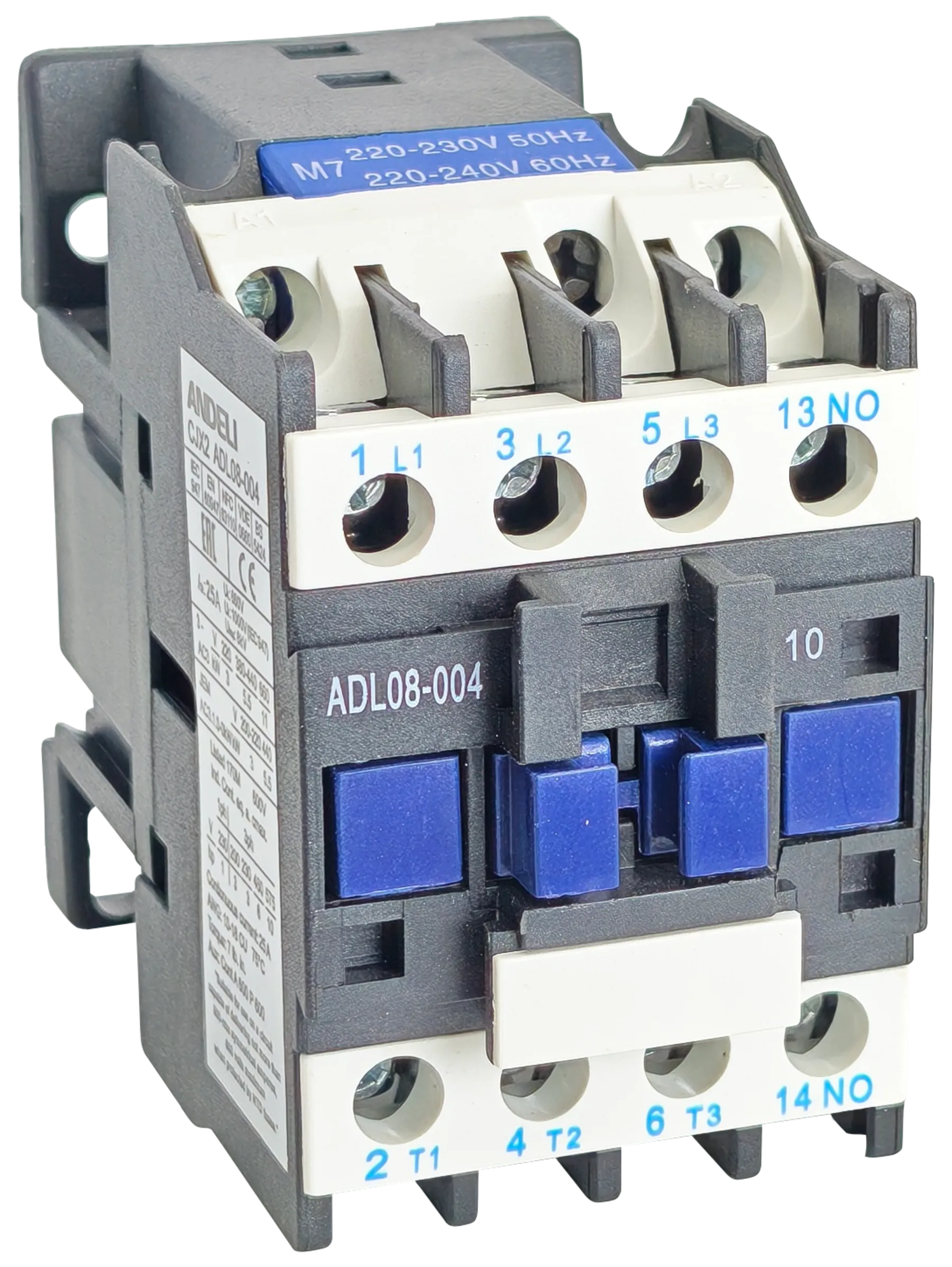

3-pole contactor CJX2 ADL08-004 12A 220V/AC3 1NO

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model:
004.003.616

3-pole contactor CJX2 ADL08-004 220V is suitable for using in the circuits with rated voltage up to 660V AC 50/60Hz and rated current 12A for making, breaking, frequently starting and controlling the AC motor.
Combined with the auxiliary contact block, timer delay, machine-interlocking device, etc. it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.
Coil 220V AC 50Hz.

$9.16

Available: 68 pcs

pcs

Main

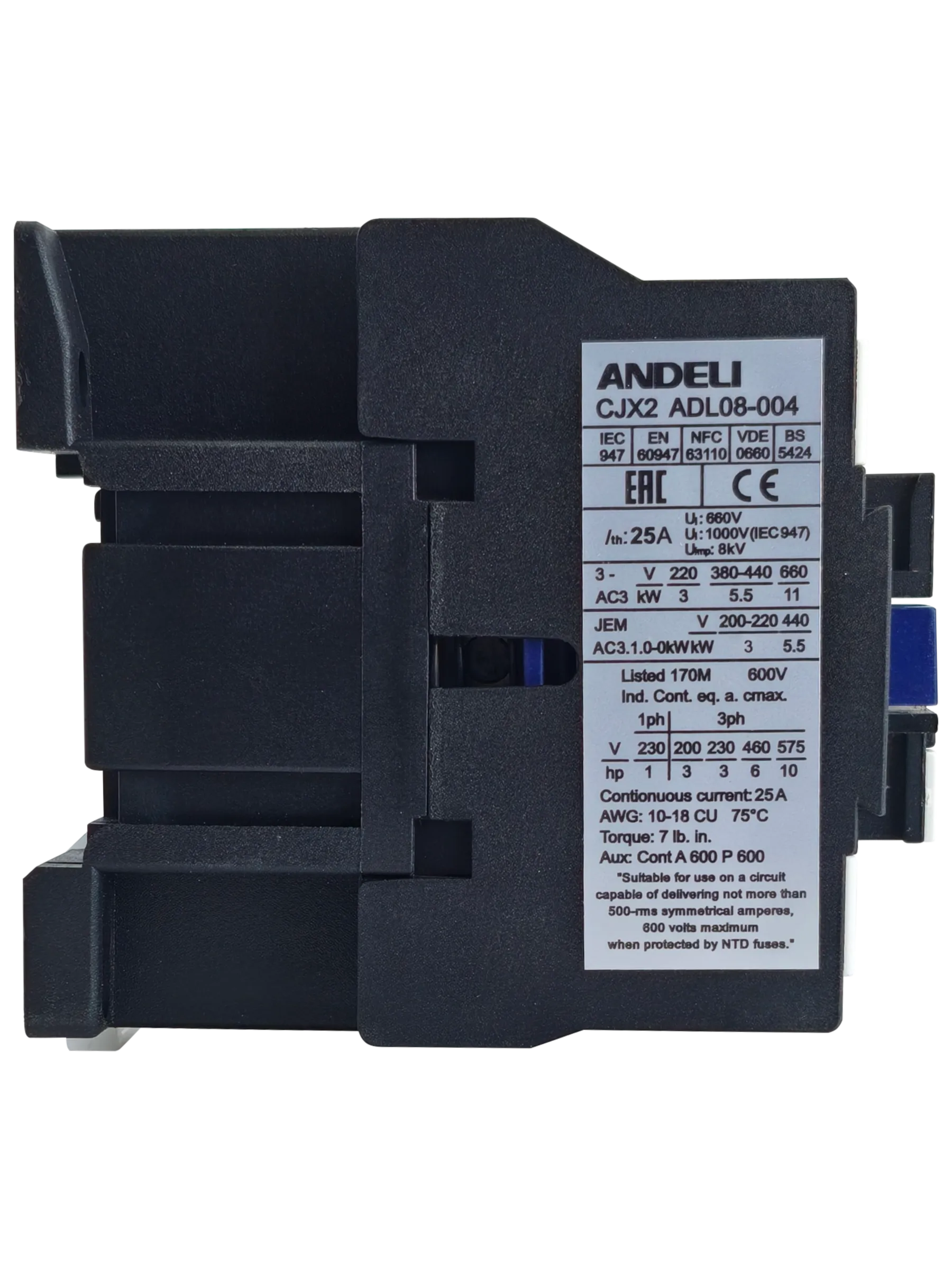

[Ue] rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
[Ui] rated insulation voltage	660 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV coil not connected to the power circuit conforming to IEC 60947
Utilisation category	AC-3 AC-1
Poles description	3
Auxiliary contact composition	1 NO
[Ie] rated operational current	12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Motor power kW	5.5 kW at 380…400 V AC 50/60 Hz (AC-3)

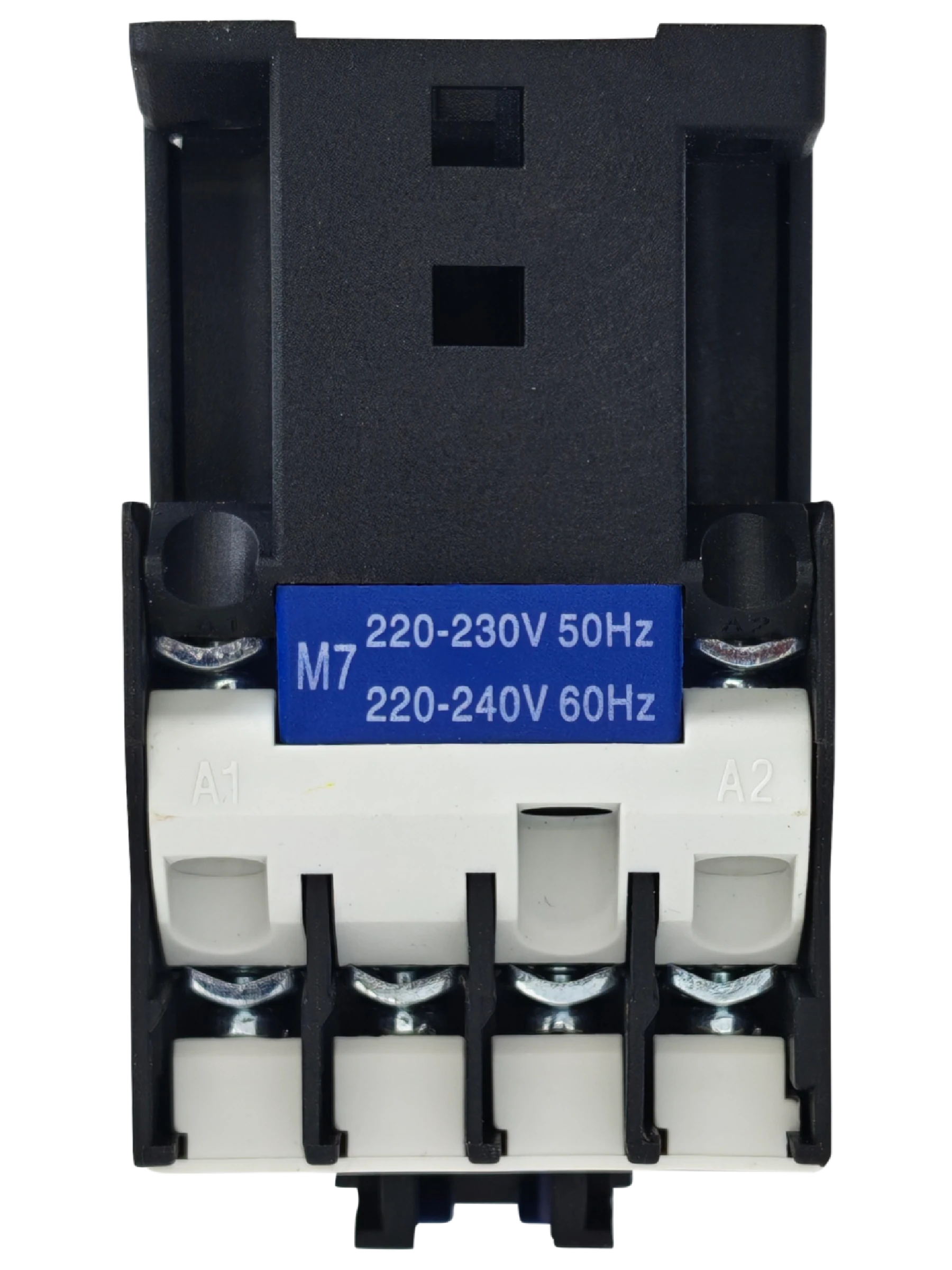

[Uc] control circuit voltage	220…230Vac 50Hz 220…240Vac 60Hz
Control circuit voltage limits	Operational: 0.85…1.1 Uc at 50 Hz (at <55 °C) Drop-out: 0.3…0.6 Uc at 50 Hz (at <55 °C)
Electrical durability, load AC-3	1 000 000 cycles
Mechanical durability	10 000 000 cycles

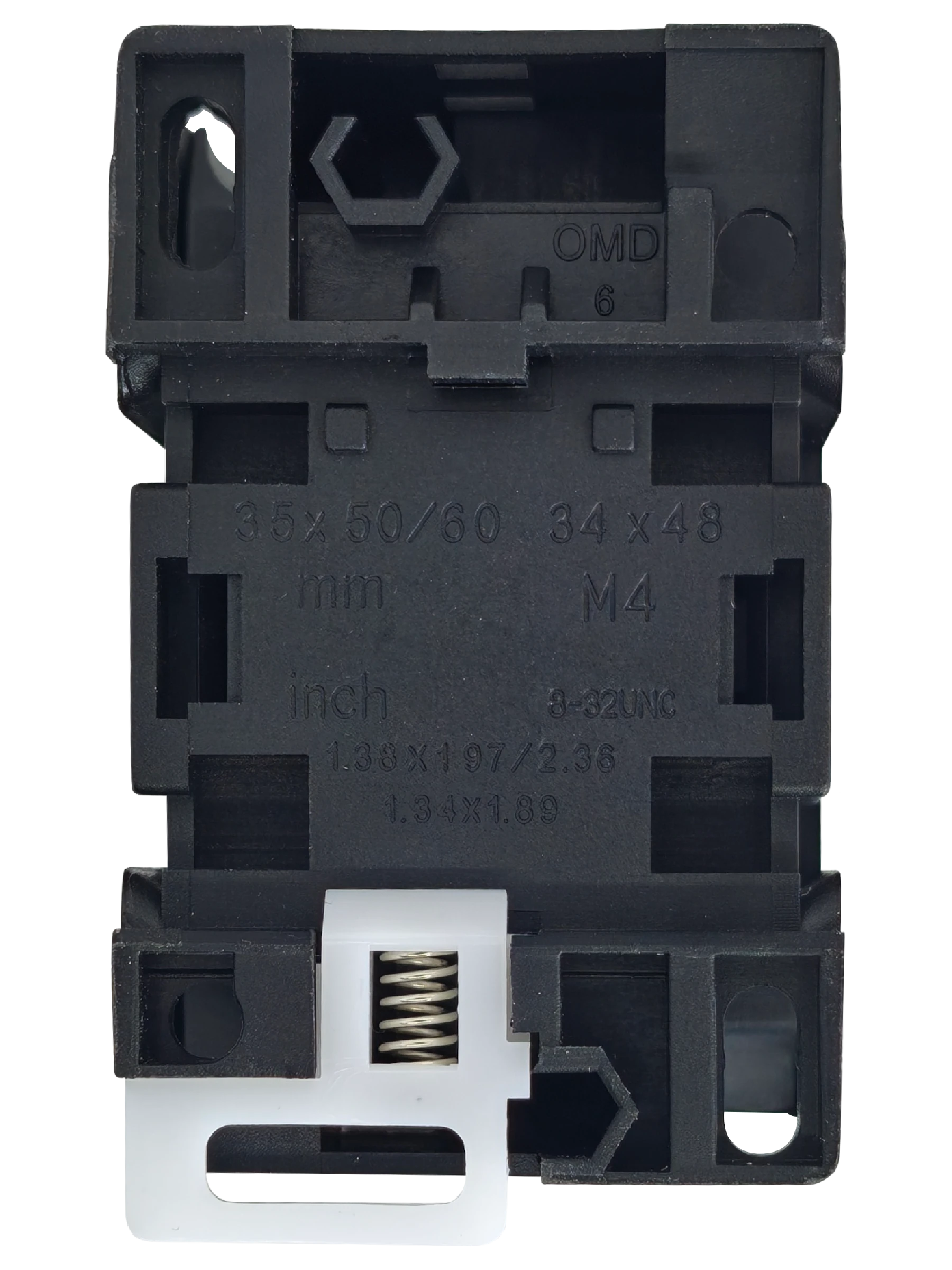

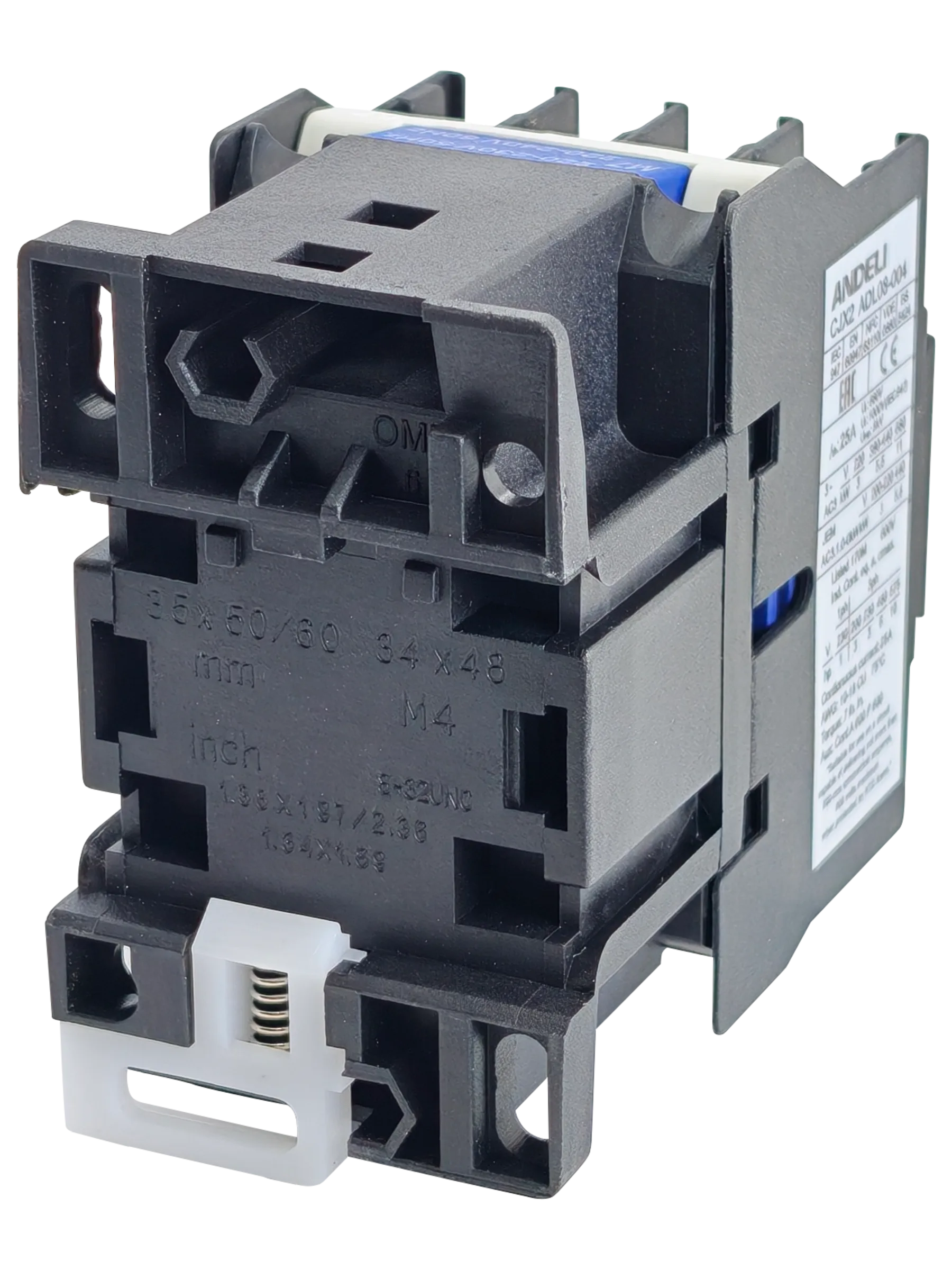

Mounting support	Plate DIN rail

Outline and mounting dimensions
