Axial single-phase blowing fan YWF2E-300B-92/35-B with plate

Model: 011.014.225
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7

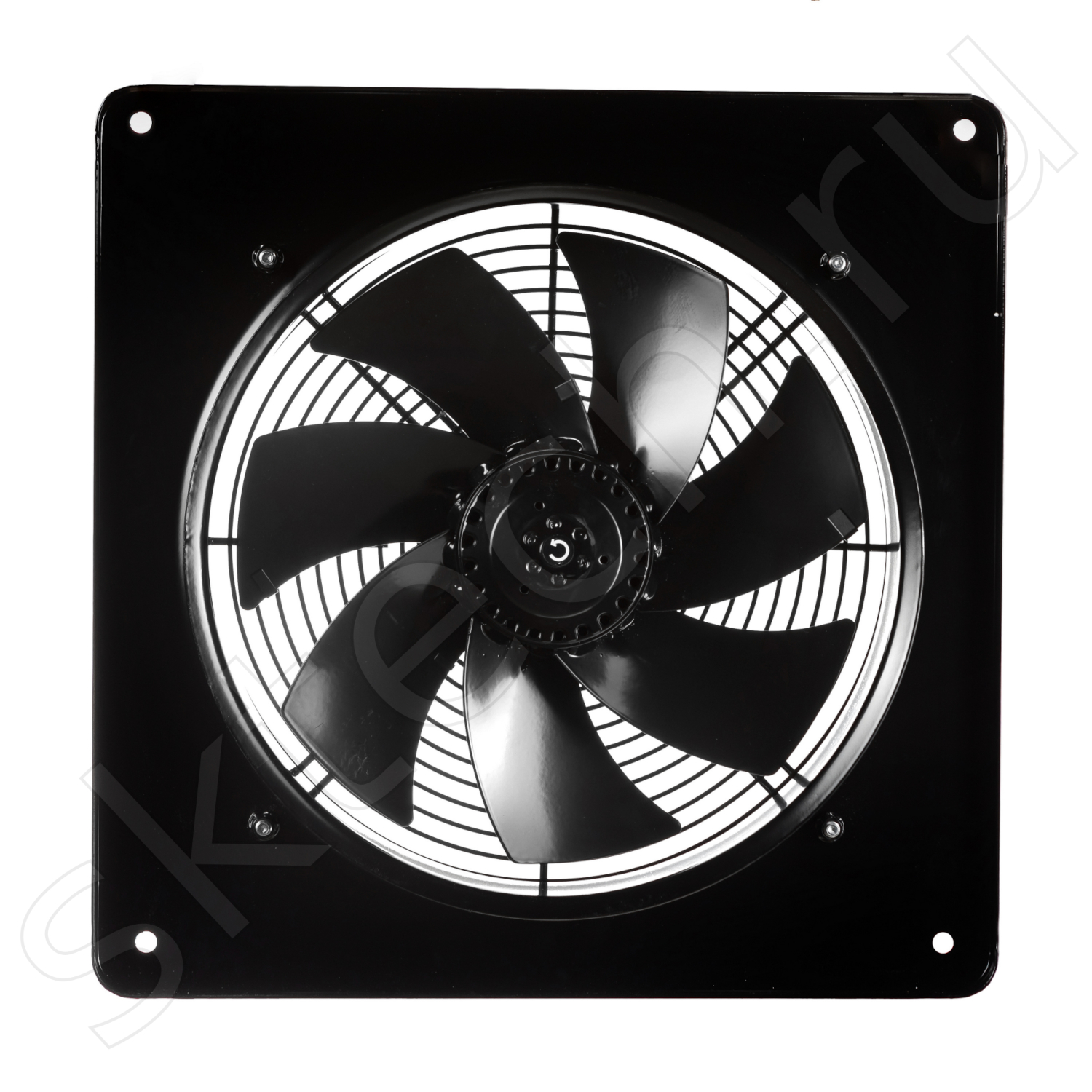

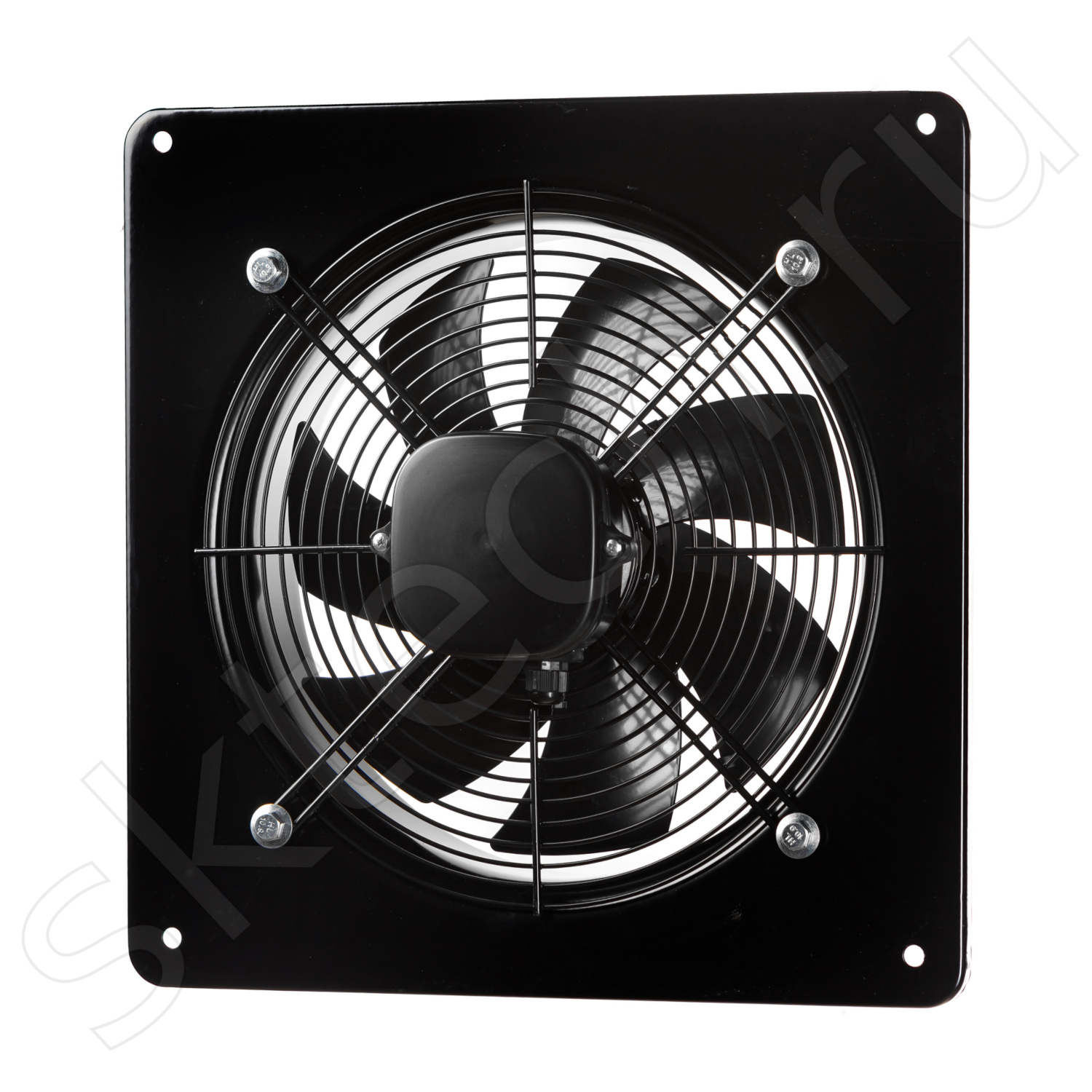

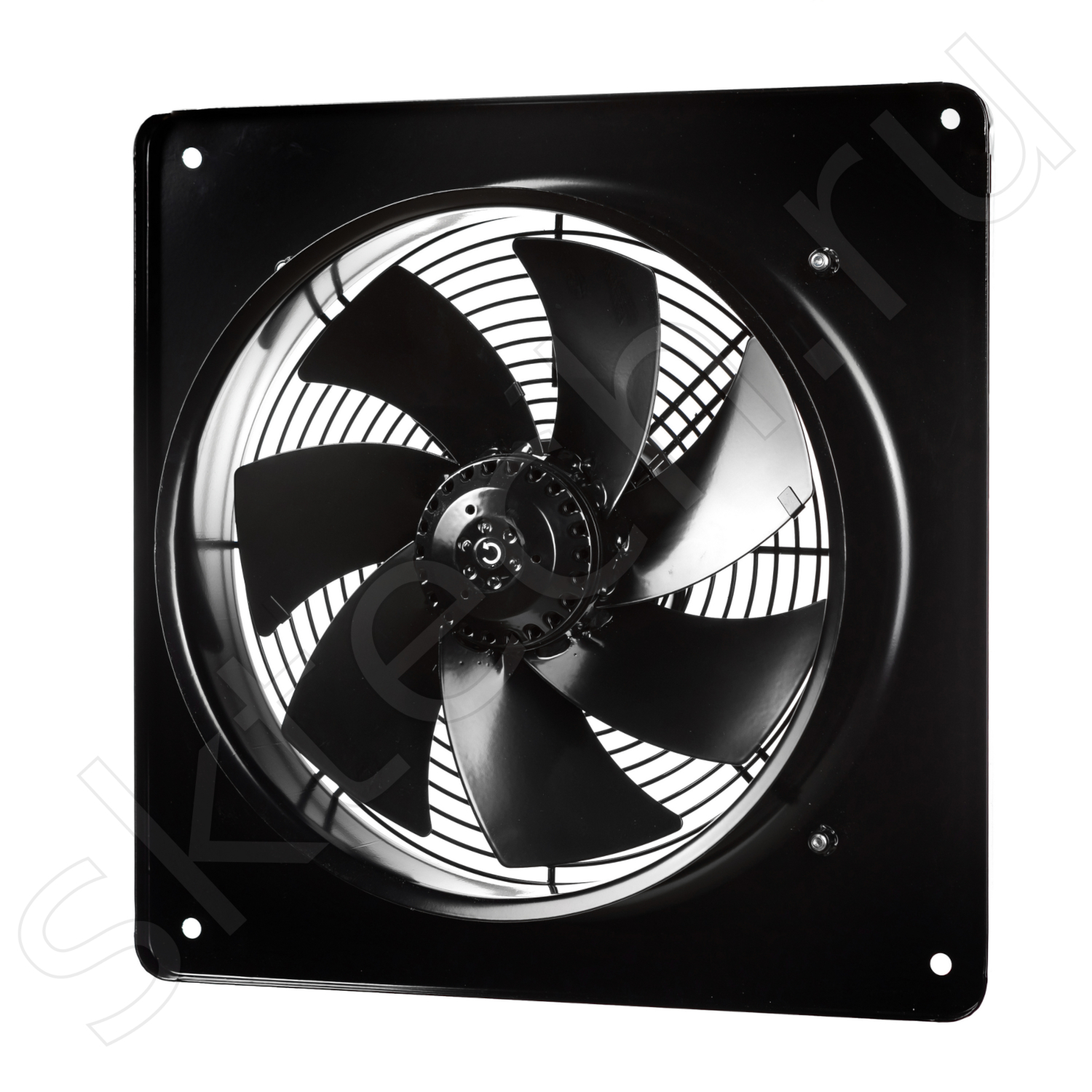

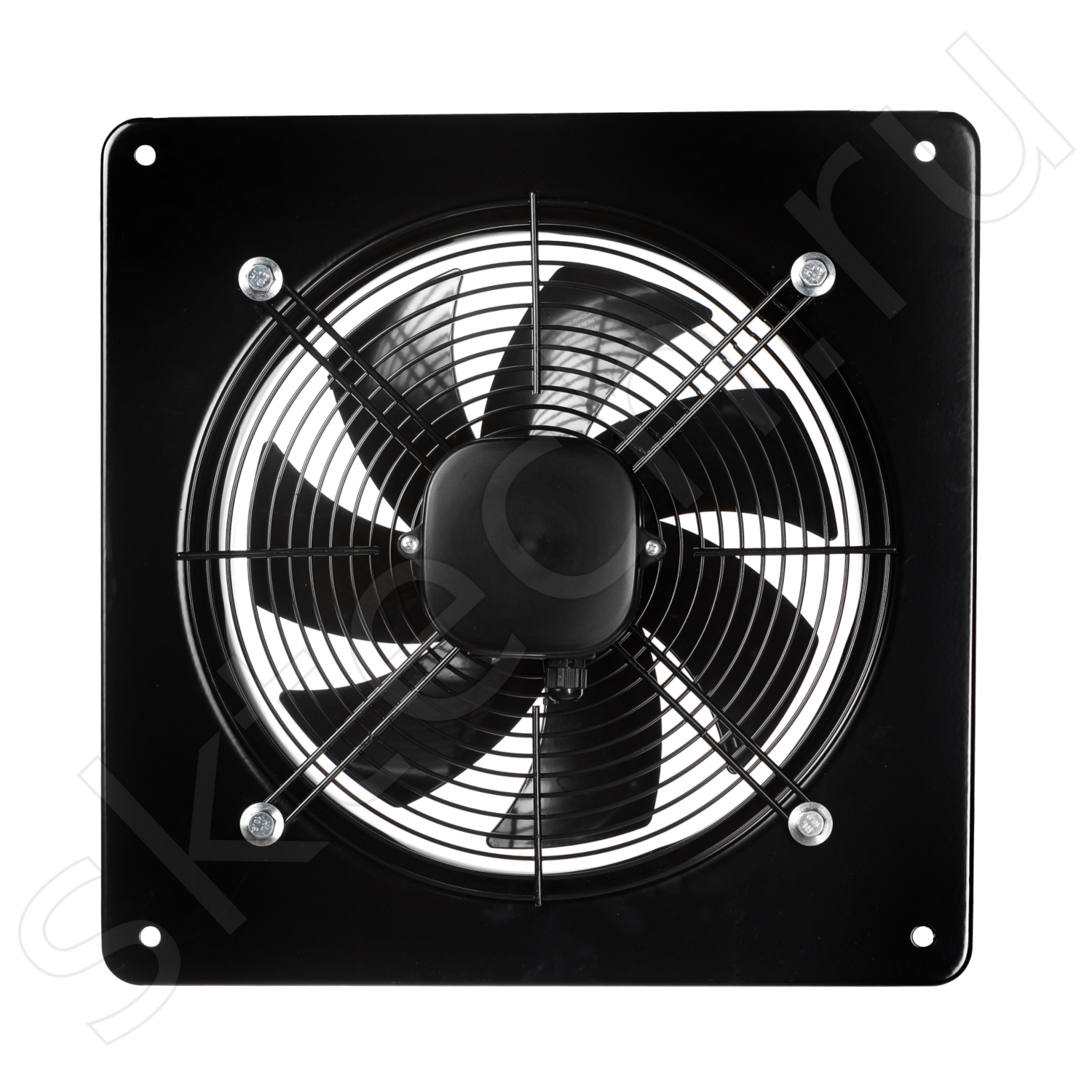

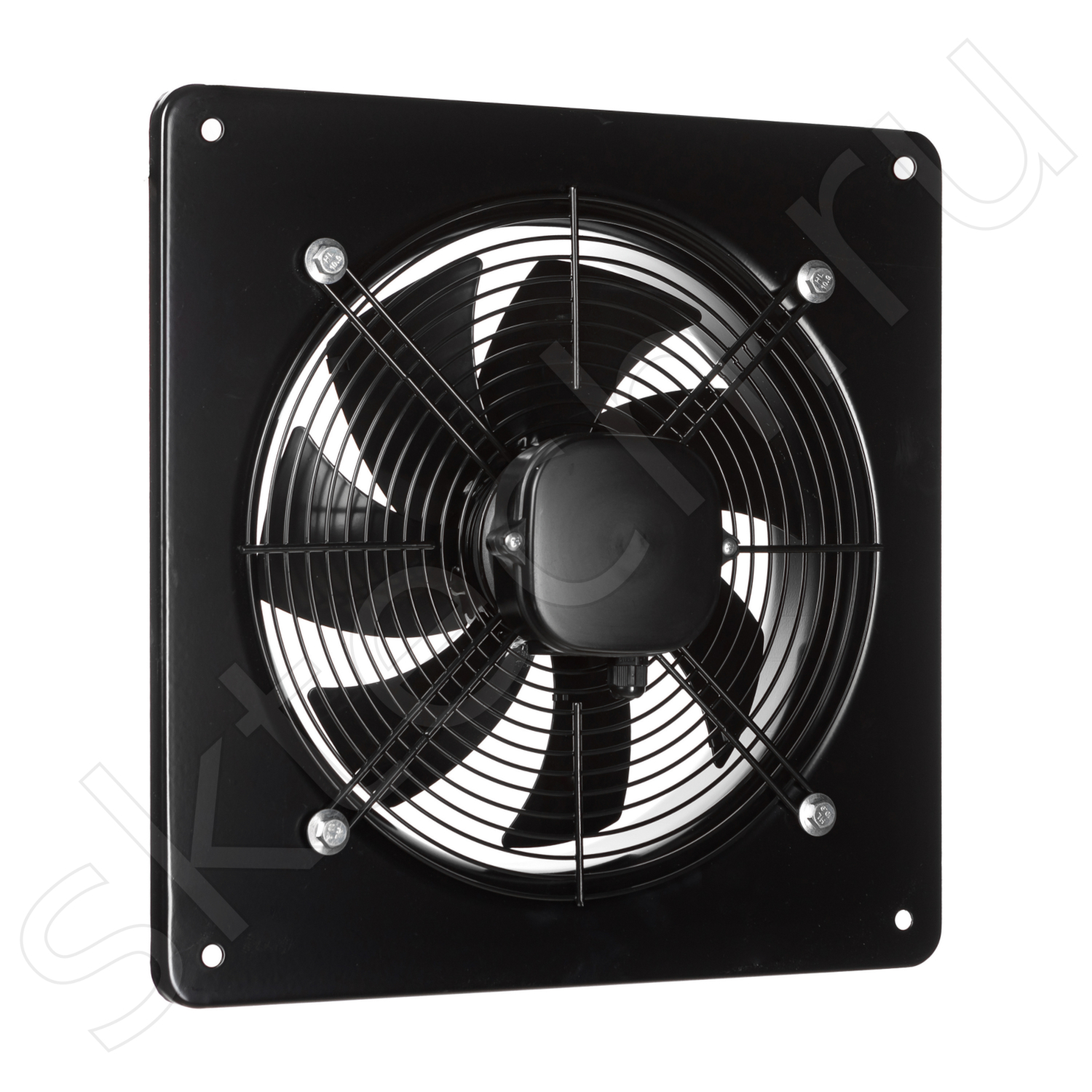

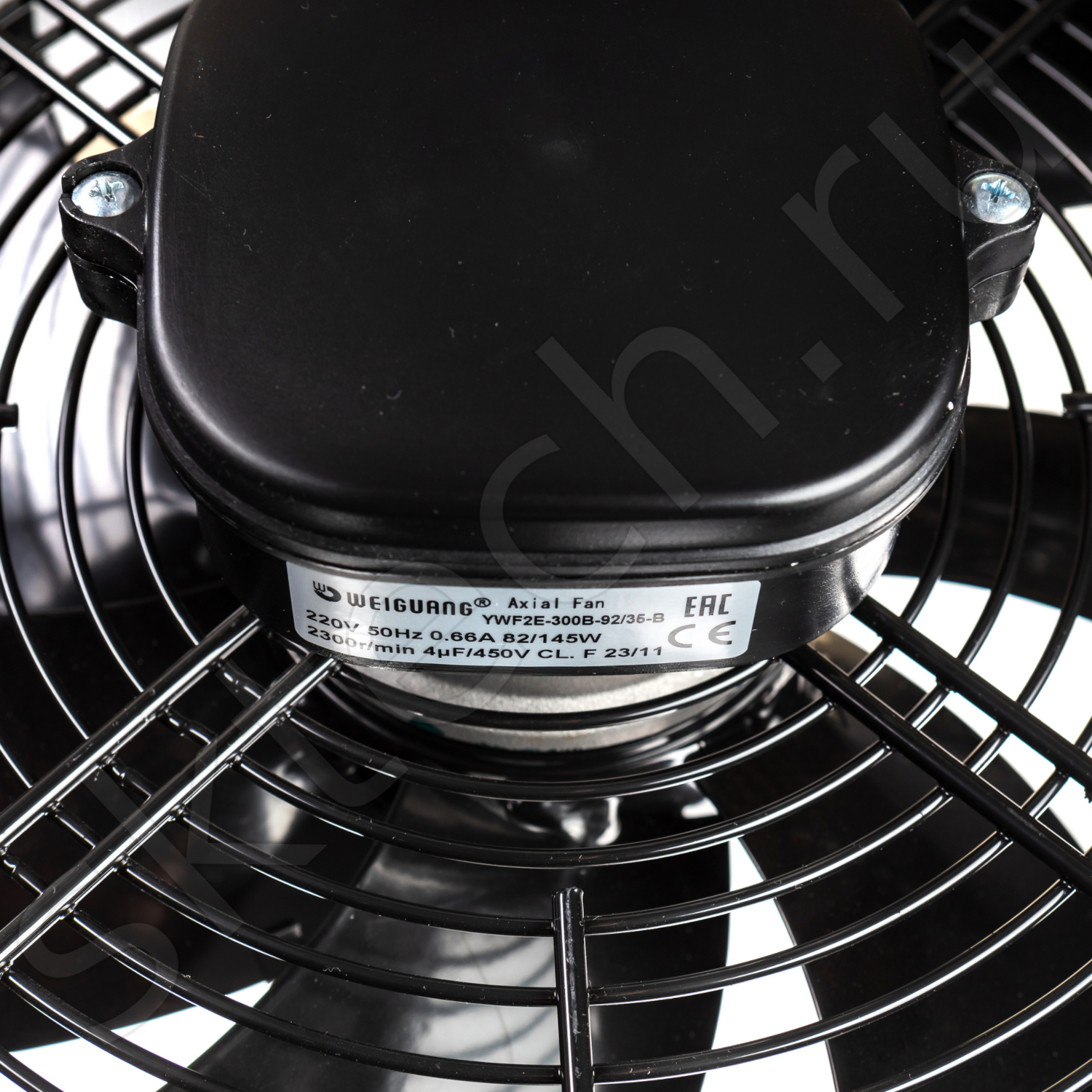

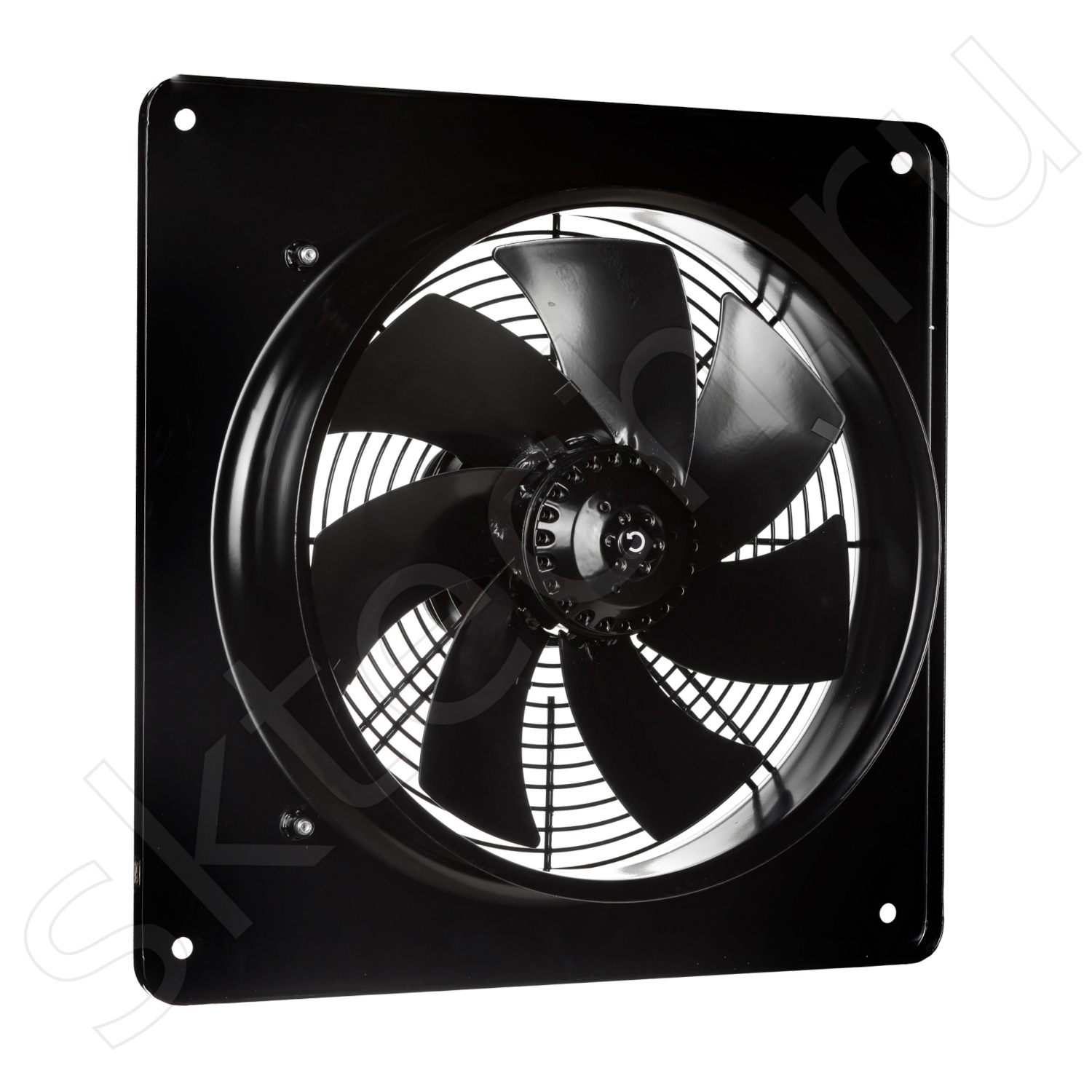

Axial fan with plate YWF2E-300B-92/35-B
Manufacturer: Weiguang
Axial fan with plate YWF2E-300B-92/35-B on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
— Diameter of fan is 300 mm;
— Input power - 145W;
— Voltage 220V/50Hz;
— Speed - 2300 rpm;
— AirFlow - 2200 m3/h.
$46.85
Available: 16 pcs
 pcs

Main characteristics

Input power145 W
Voltage220 V
Frequency50 Hz
Noise level62 dB
Operating current0.66 A
Air flow at 20 Pa2200 m³/h
Capacitor4 μF
Speed2300 rpm
Insulation classF
Motor protectionThermocontact 150±5°C
Degree of protectionIP54
Ambient temperature-30...+60 °C
Operating typeS1
Bearingsball bearings

Dimensions

Dimensions of axial fan YWF2E-300B-92/35-B

Air flow curve

Air flow curve of axial fan YWF2E-300B-92/35-B

Wiring diagram

Wiring diagram of axial fan YWF2E-300B-92/35-B

Marking decoding YWF-4E-350-S-102/34-G:

  • YWF – external rotor fan series;
  • 4 – motor poles;
  • Е – motor type:
           E - single phase capacitor operation;
           D - three phases asynchronous operation;
  • 350 – the diameter of the fan blade;
  • S – air direction:
           S - sucking;
           B - blowing;
  • 102 – the diameter of the rotor;
  • 34 – the thickness of laminated core;
  • G – characteristics of the fan motor:
           G - grid;
           B - square frame.
