Axial three-phase blowing fan YWF4D-630B-168/65-B with plate

Model: 011.014.229
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
Axial fan with plate YWF4D-630B-168/65-B
Manufacturer: Weiguang
Axial fan with plate YWF4D-630B-168/65-B on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc.
— Diameter of fan is 630 mm;
— Input power - 1450W;
— Voltage 380V/50Hz;
— Speed - 1390 rpm;
— AirFlow - 15249 m3/h.
$212.47
Available: 4 pcs
 pcs

Main characteristics

Input power1450 W
Voltage380 V
Frequency50 Hz
Noise level79 dB
Operating current2.9 A
Air flow at 20 Pa15249 m³/h
Speed1390 rpm
Insulation classF
Motor protectionThermocontact 150±5°C
Degree of protectionIP54
Ambient temperature-30...+60 °C
Bearingsball bearings

Dimensions

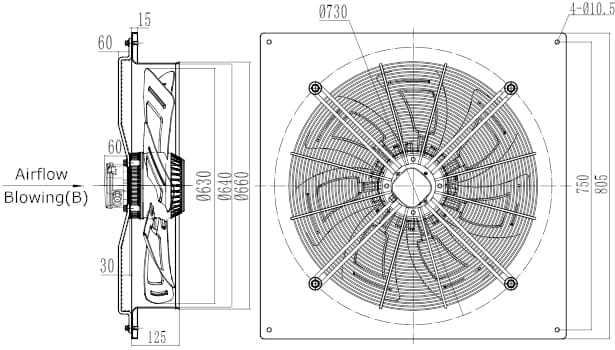

Dimensions of axial fan YWF4D-630B-168/65-B

Air flow curve

Air flow curve of axial fan YWF4D-630B-168/65-B

Wiring diagram

Wiring diagram of axial fan YWF4D-630B-168/65-B

Marking decoding YWF-4E-350-S-102/34-G:

  • YWF – external rotor fan series;
  • 4 – motor poles;
  • Е – motor type:
           E - single phase capacitor operation;
           D - three phases asynchronous operation;
  • 350 – the diameter of the fan blade;
  • S – air direction:
           S - sucking;
           B - blowing;
  • 102 – the diameter of the rotor;
  • 34 – the thickness of laminated core;
  • G – characteristics of the fan motor:
           G - grid;
           B - square frame.
