3-phase axial fan YWF4D-300S, sucking

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 011.014.044

Manufacturer: Weiguang

Axial fan YWF4D-300S on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc. Connection by means of terminal box.
− Diameter of fan is 300 mm;
− Input power -75W;
− Voltage 380V/50Hz;
− Speed - 1380 rpm;
− Max AirFlow -1835m³/h.

$35.33

Technical characteristics

Dimension type	300
Number of blades	5
Rated operational voltage	380VAC
Frequency	50Hz
Rated current	0.24 A
Input power	75W
Speed	1380 rpm
Max air flow	1835 m³/h
Direction of air flow	sucking
Operating temperature	-30°C...+60°C
Life	30 000 h
Noise level	60 dB(A)
Net weight	3 kg

Air flow characteristics

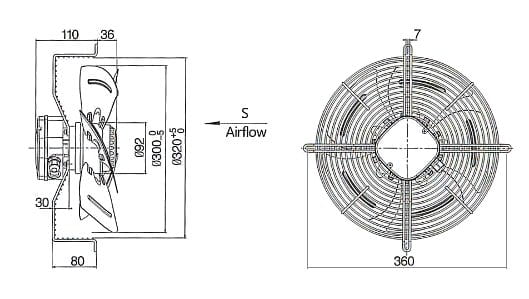

Dimensions

Wiring diagram

YWF series 4-pole sucking axial fans model range

Model	Voltage, V	Frequency, Hz	Current, A	Input power, W	Speed, rpm	Noise, dB	Max air flow, m³/h
YWF4D-300S	380	50	0.24	75	1380	60	1835
YWF4D-350S	380	50	0.40	129	1400	64	2470
YWF4D-400S	380	50	0.47	180	1380	68	3920
YWF4D-450S	380	50	0.55	250	1350	69	5415
YWF4D-500S	380	50	0.85	414	1300	71	7395
YWF4D-550S	380	50	1.2	600	1300	72	8920
YWF4D-630S	380	50	1.60	800	1320	75	12420
