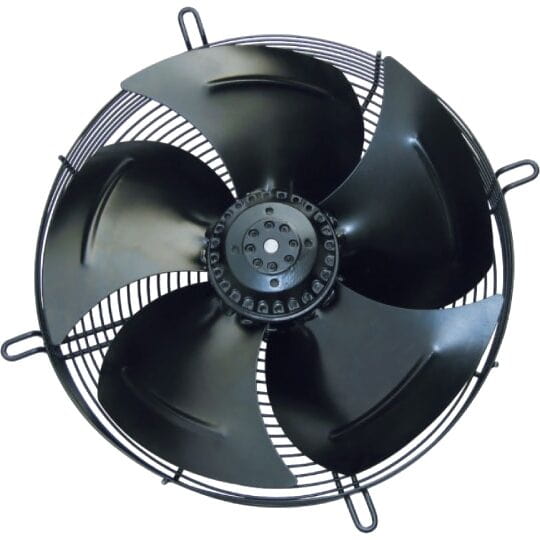

Single-phase axial fan YWF4E-350S, sucking

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 011.014.006

Manufacturer: Weiguang

Axial fan YWF4E-350S on base with external rotor motor. Suitable for ventilation systems, refrigerators, air conditioning equipment, etc. Connection by means of terminal box.
− Diameter of fan is 350 mm;
− Input power - 129W;
− Voltage 220V/50Hz;
− Speed - 1400 rpm;
− Max AirFlow -2450 m³/h.

$46.38

Available: 1 pcs

Technical characteristics

Dimension type	350
Number of blades	5
Rated operational voltage	220VAC
Frequency	50Hz
Rated current	0.6 A
Input power	130W
Speed	1450 rpm
Max air flow	2450 m³/h
Capacitance	4μF
Direction of air flow	sucking
Operating temperature	-30°C...+60°C
Life	30 000 h
Noise level	64 dB(A)
Net weight	5 kg

Air flow curve

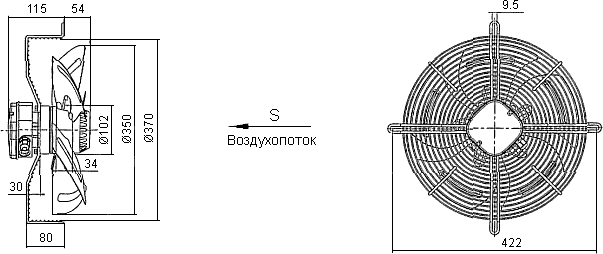

Dimensions

Wiring diagram

YWF series single-phase 4-pole sucking fans model range

Model	Voltage, V	Frequency, Hz	Input power, W	Speed, rpm	Noise, dB	Max air flow, m³/h
YWF4E-250S	220	50	50	1380	55	825
YWF4E-300S	220	50	85	1380	60	1845
YWF4E-315S	220	50	95	1380	61	1845
YWF4E-350S	220	50	129	1400	64	2450
YWF4E-400S	220	50	180	1380	67	3955
YWF4E-450S	220	50	250	1350	69	5365
YWF4E-500S	220	50	380	1320	71	7155
YWF4E-550S	220	50	550	1300	72	8510
YWF4E-600S	220	50	700	1360	74	10040
YWF4E-630S	220	50	750	1360	75	11435
