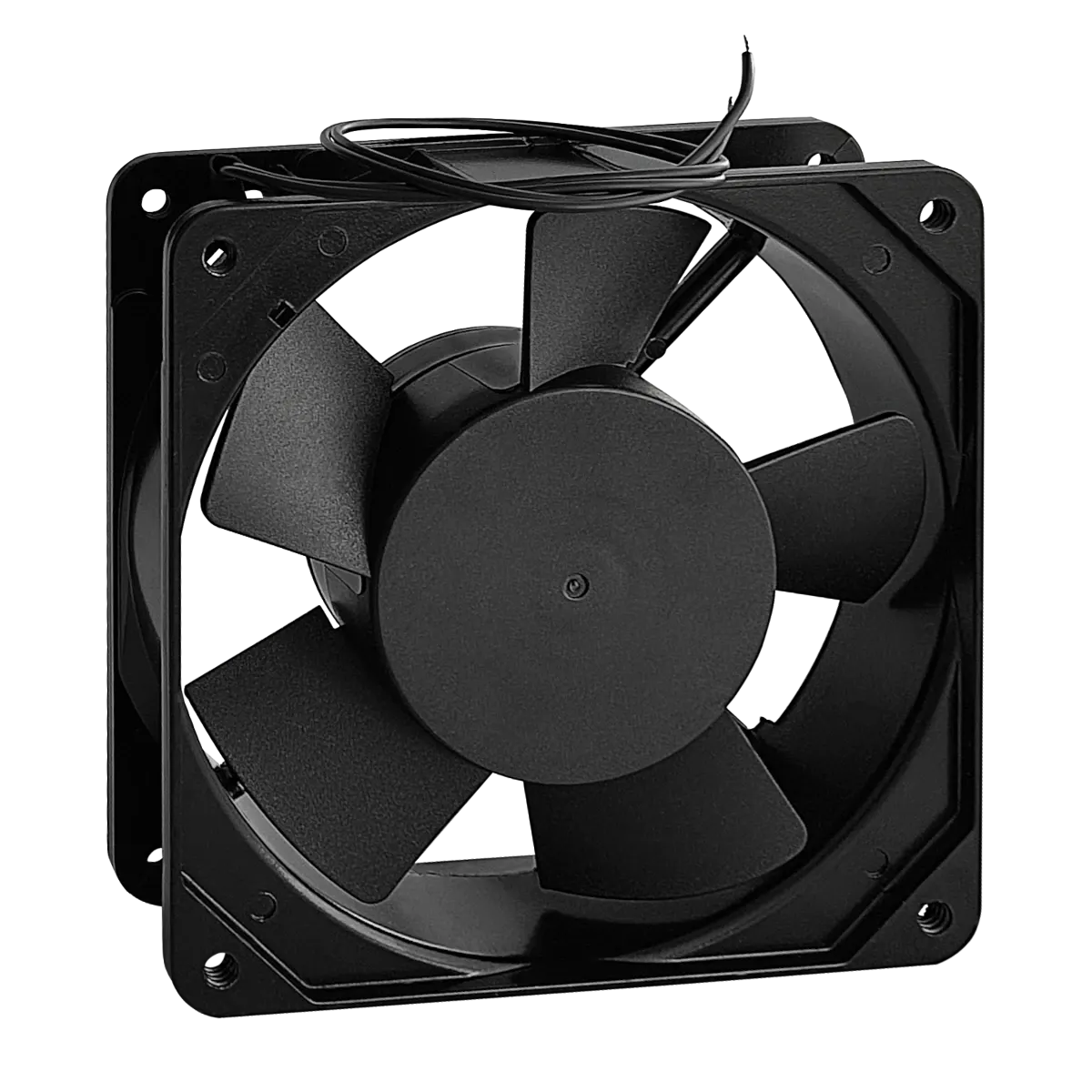

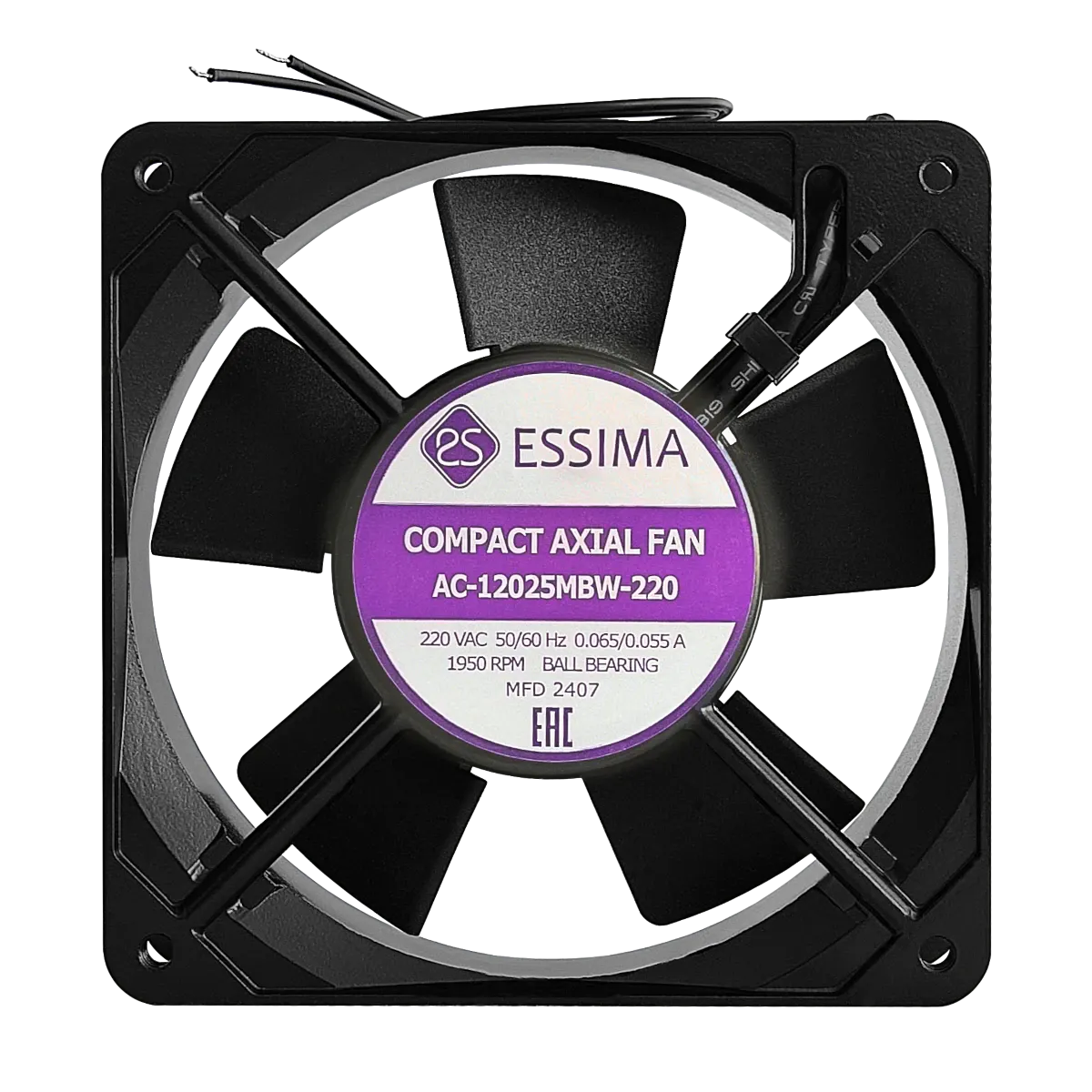

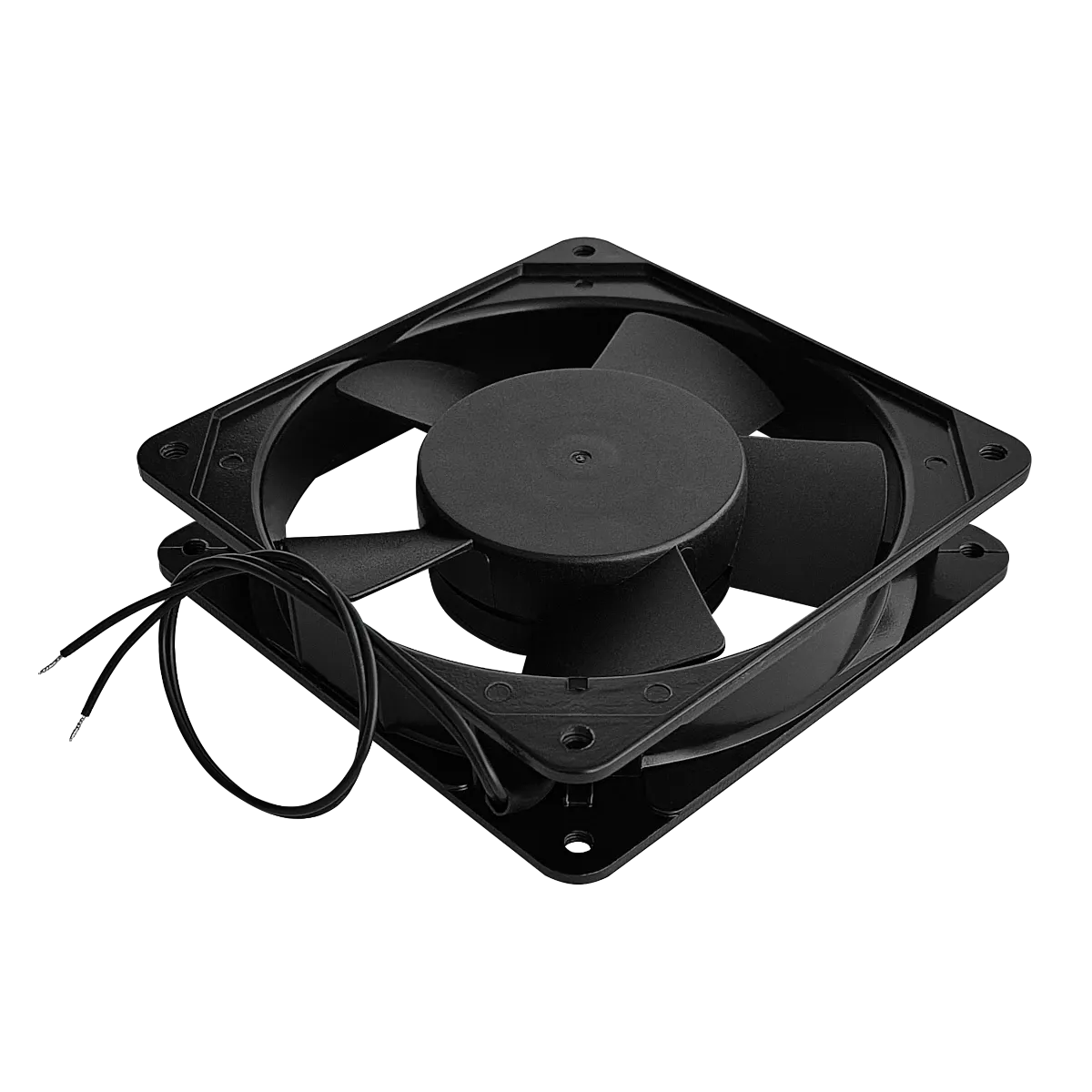

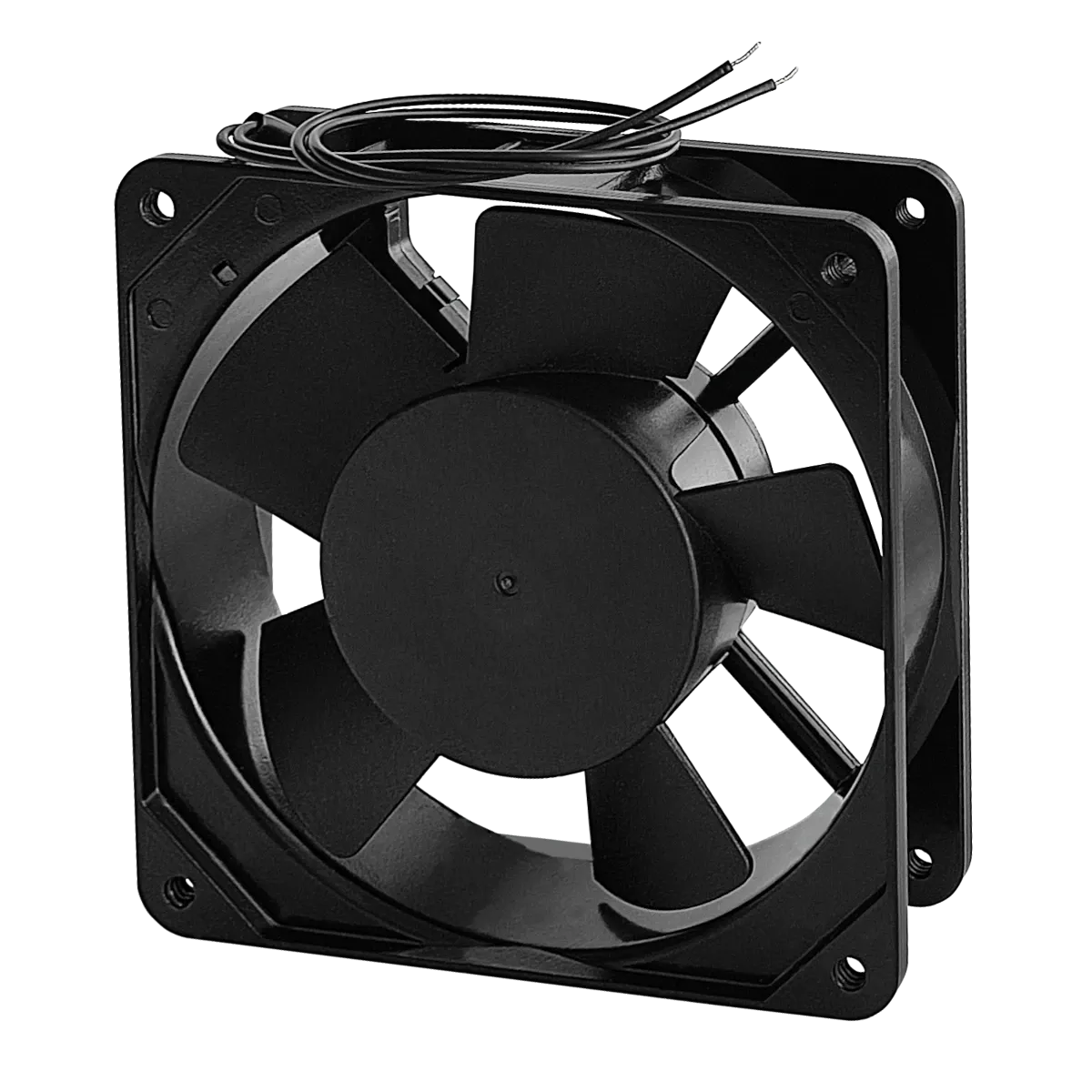

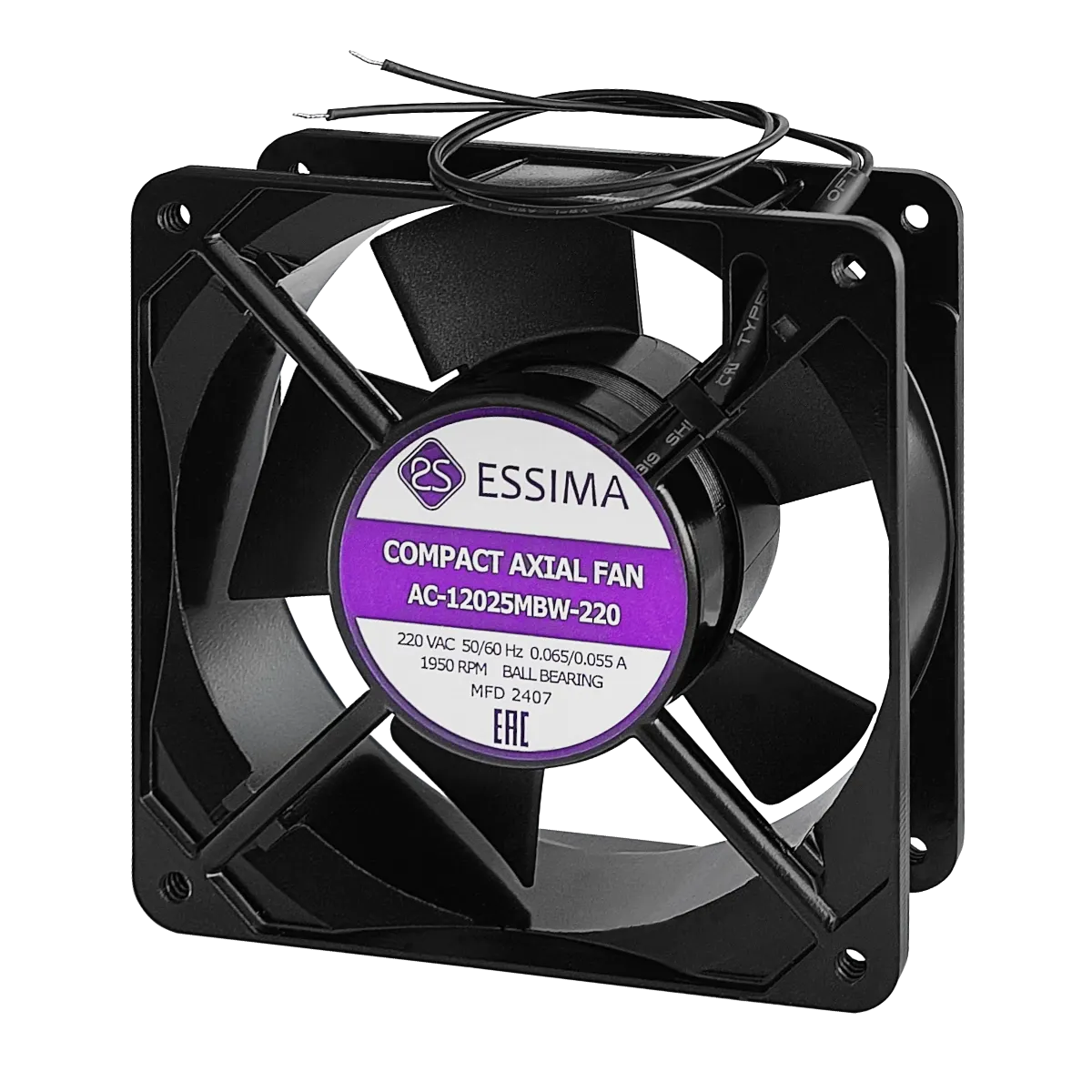

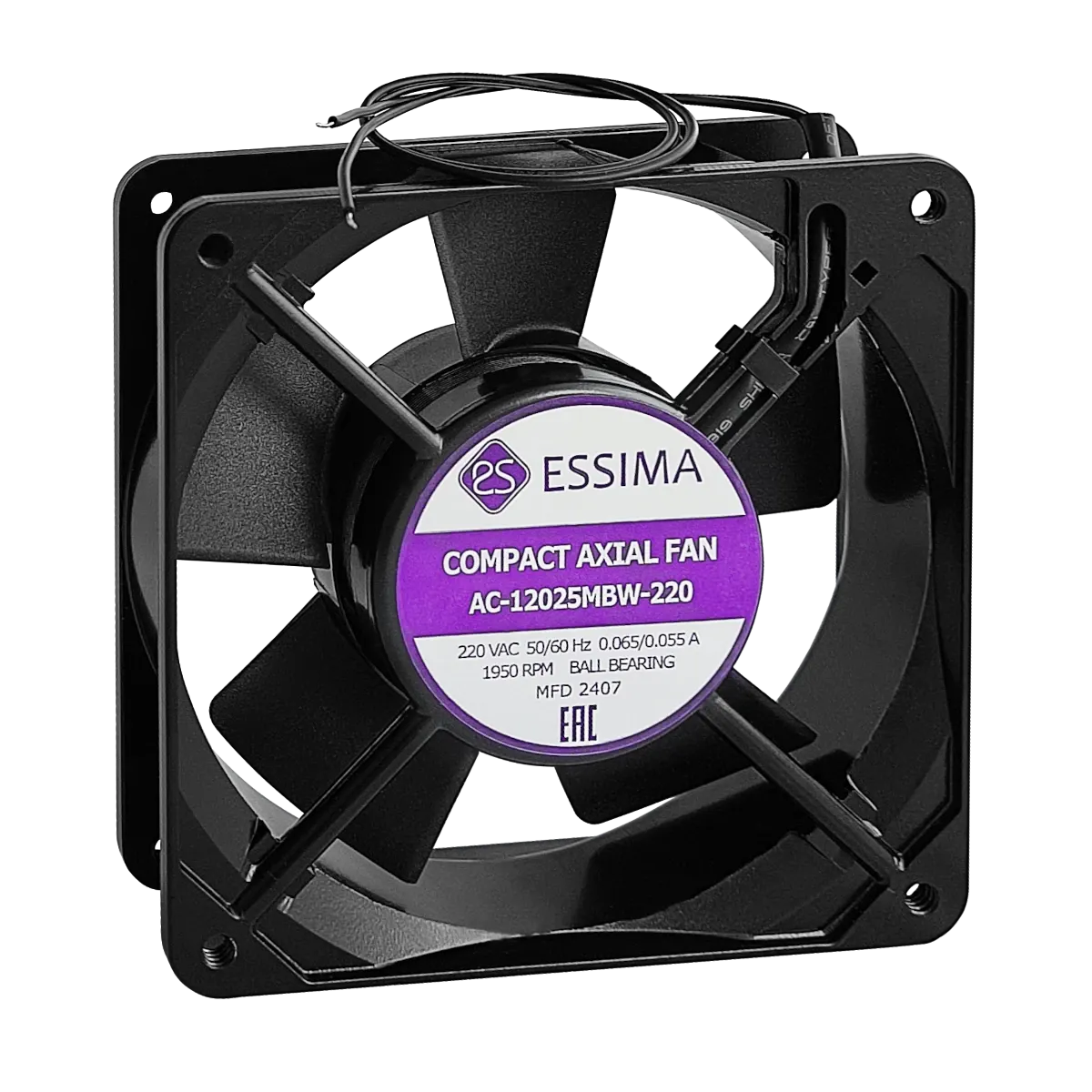

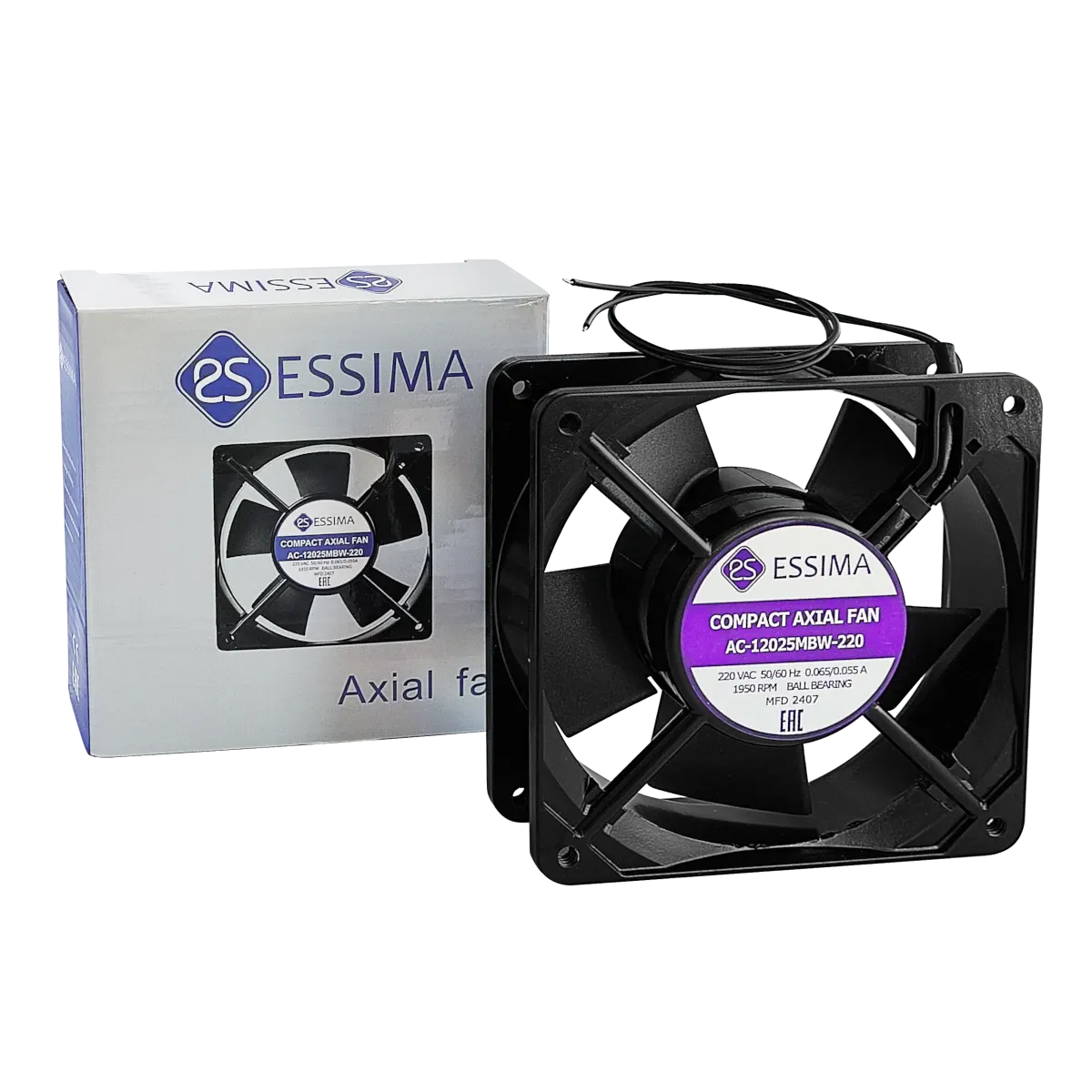

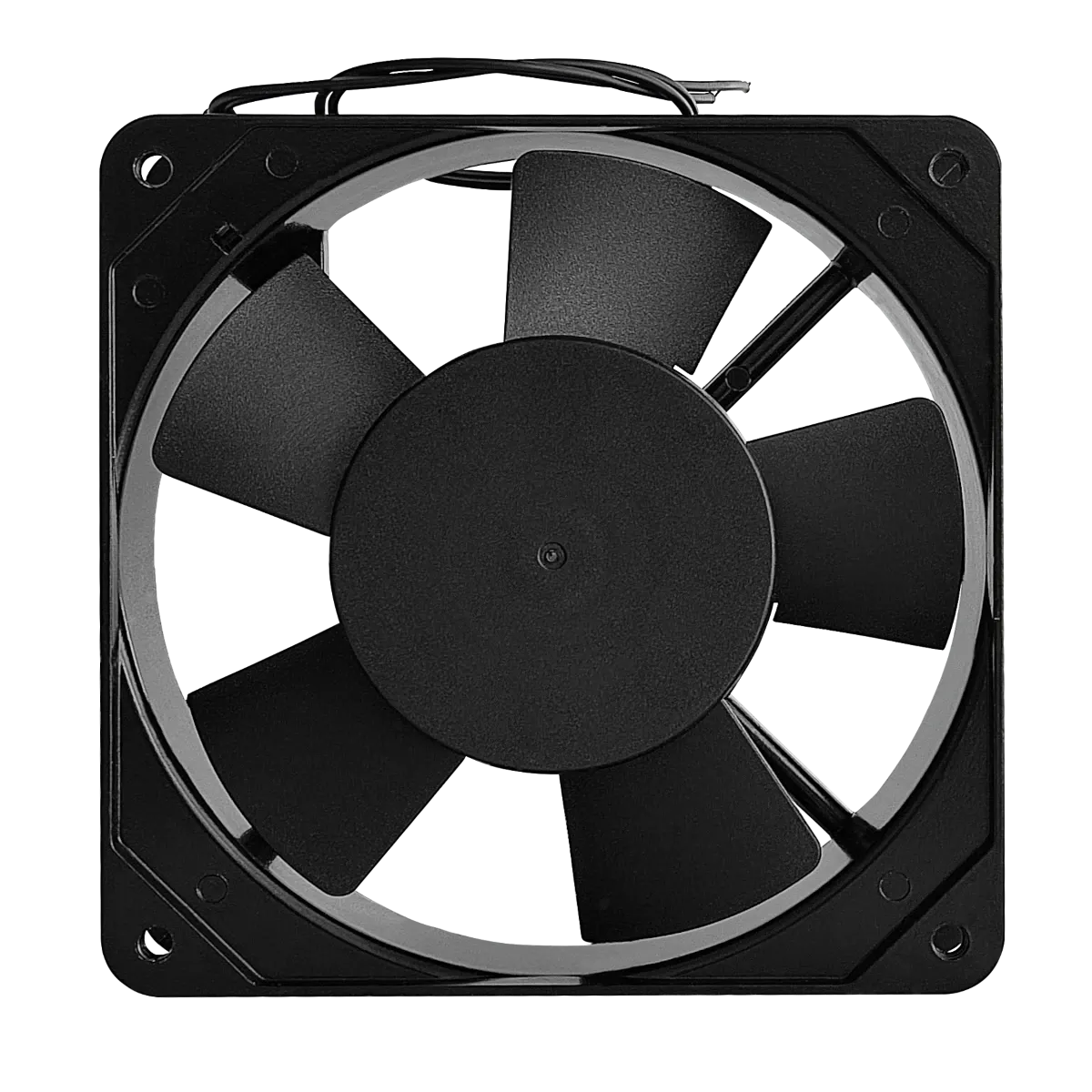

Axial compact fan AC-12025MBW-220

Model: 011.021.003
  • photo 3
  • photo 4
Limited time

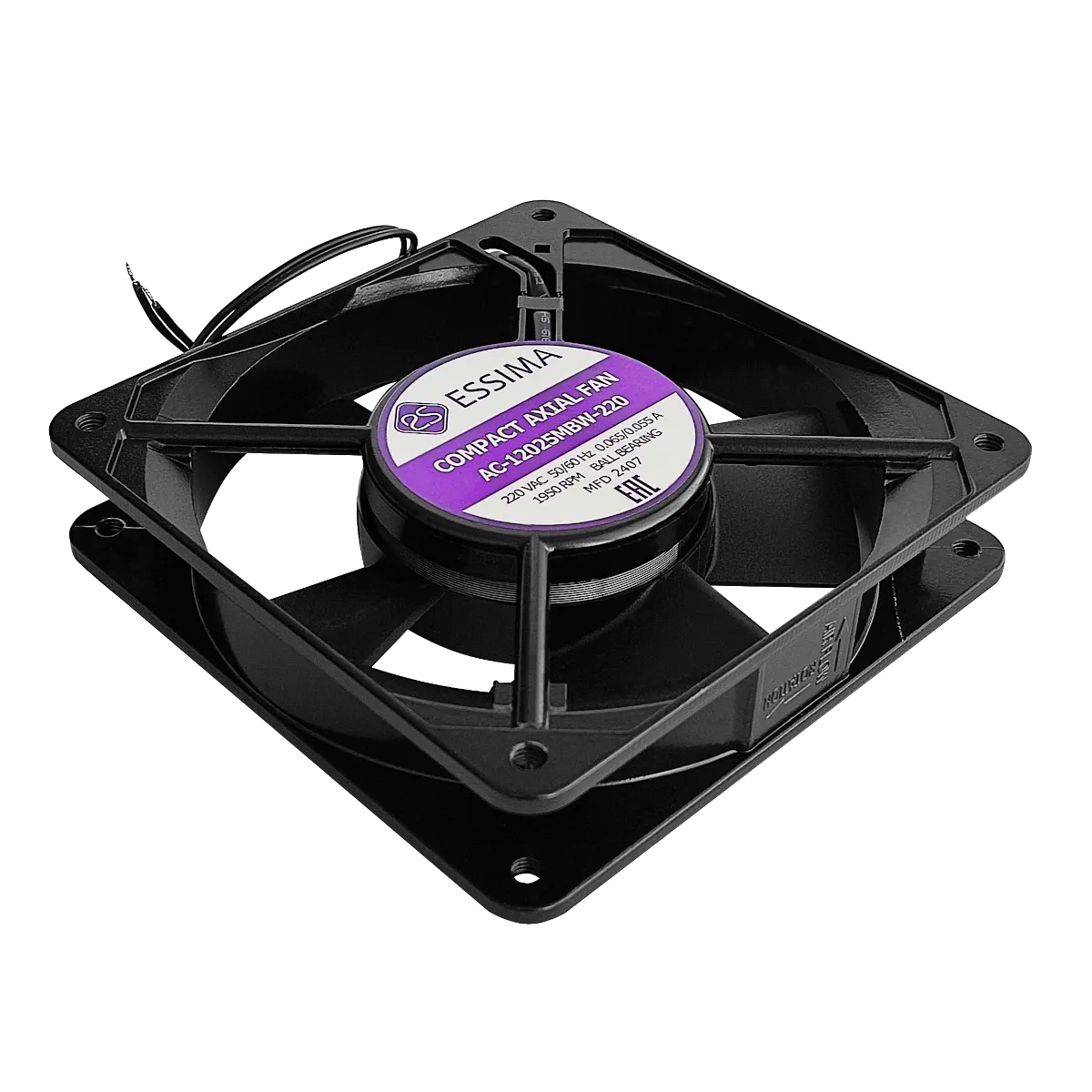

Axial fan AC-12025MBW-220
Manufacturer: Essima
AC Axial fans AC-12025MBW-220 are common type of fans used in electronic components. The axial-flow fan uses a propeller to create a large airflow in the direction of the axis, moving air in a parallel direction of the blade axis. In other words, the fan blows air across the axis of the blade, hence the name axial fans. The fan moves heated air away from the components and draw cooler air over them, thereby giving a superior life expectancy to the components.
  • Supply voltage - 220...240VAC
  • Air flow 112 m³/h
  • Frame material - aluminum, impeller material - PBT
$2.84
Qty from 1 pcsfrom 10 pcsfrom 50 pcsfrom 100 pcs
Price $2.84$2.73$2.62$2.51
Available: 350 pcs
 pcs

Specification

Bearing typeball
Rated voltage220...240VAC
Frequency50/60 Hz
Rated current0.065/0.055 A
Input power12/10 W
Speed1950 rpm
Air flow58.2/67.09 CFM±10%
Noise level38/40 dB
Frame materialaluminum
Impeller materialPBT

Air flow curve

air flow curve for the axial fan AC-12025MBW-220

Dimensions

Axial fan AC-12025MBW-220 dimensions
