Centrifugal fan with backward-curved wheel YWF-2E-92/42-B-L250/45

Model: 011.102.100
Centrifugal fan YWF-2E-92/42-B-L250/45
Manufacturer: Weiguang
Centrifugal fan YWF-2E-92/42-B-L250/45 can be used in stationary ventilation and air-conditioning systems, etc.
Vendor package contains:
  • Centrifugal fan - 1pc
  • Capacitor 4μF - 1pc
$51.61
 pcs

Technical data

Supply voltage220VAC
Input power139W
Input current0,64A
Number of motor poles2
Speed2480 rpm
Insulation classF
Max airflow1250 m³/h
Static pressure550Pa
Permissible ambient temperature-30°C...+60°C
Bearing typeball bearing
Electrical connectionlead wire, length 500mm
Capacitor4μF/450V
Confusor (available separately!)254-166-30 (art. 001.005.021)
Degree of protectionIP44
Wheel diameter250mm
Wheel and confusor materialgalvanised steel

Dimensions and wiring diagram

Dimensions of centrifugal fan with backward curved wheel YWF-2E-92/42-B-L250/45
Wiring diagram of centrifugal fan with backward curved wheel YWF-2E-92/42-B-L250/45

Airflow curve

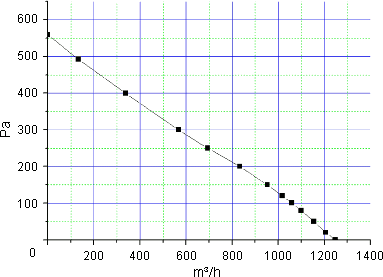

Airflow curve of centrifugal fan YWF-2E-92/42-B-L250/45
