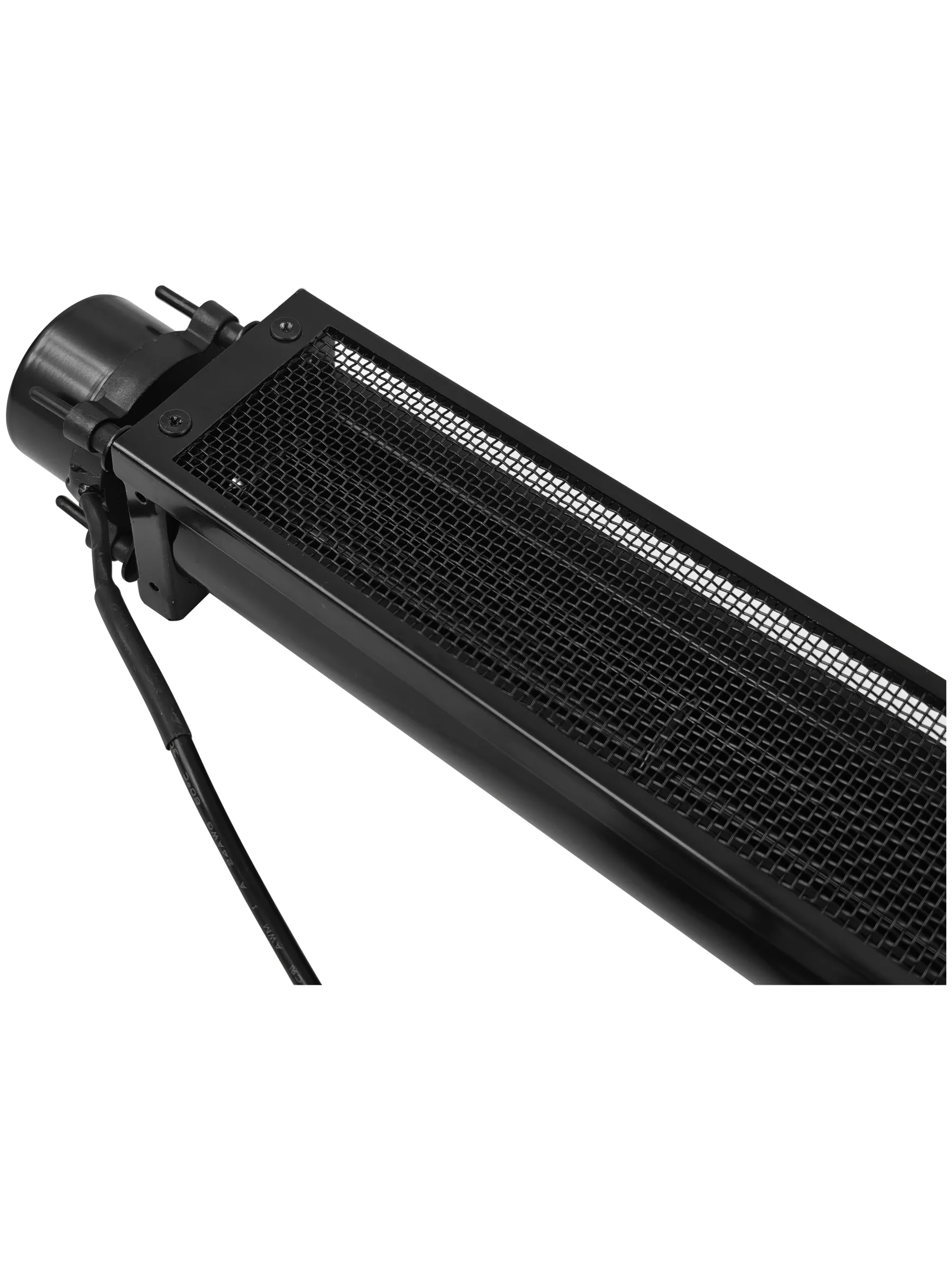

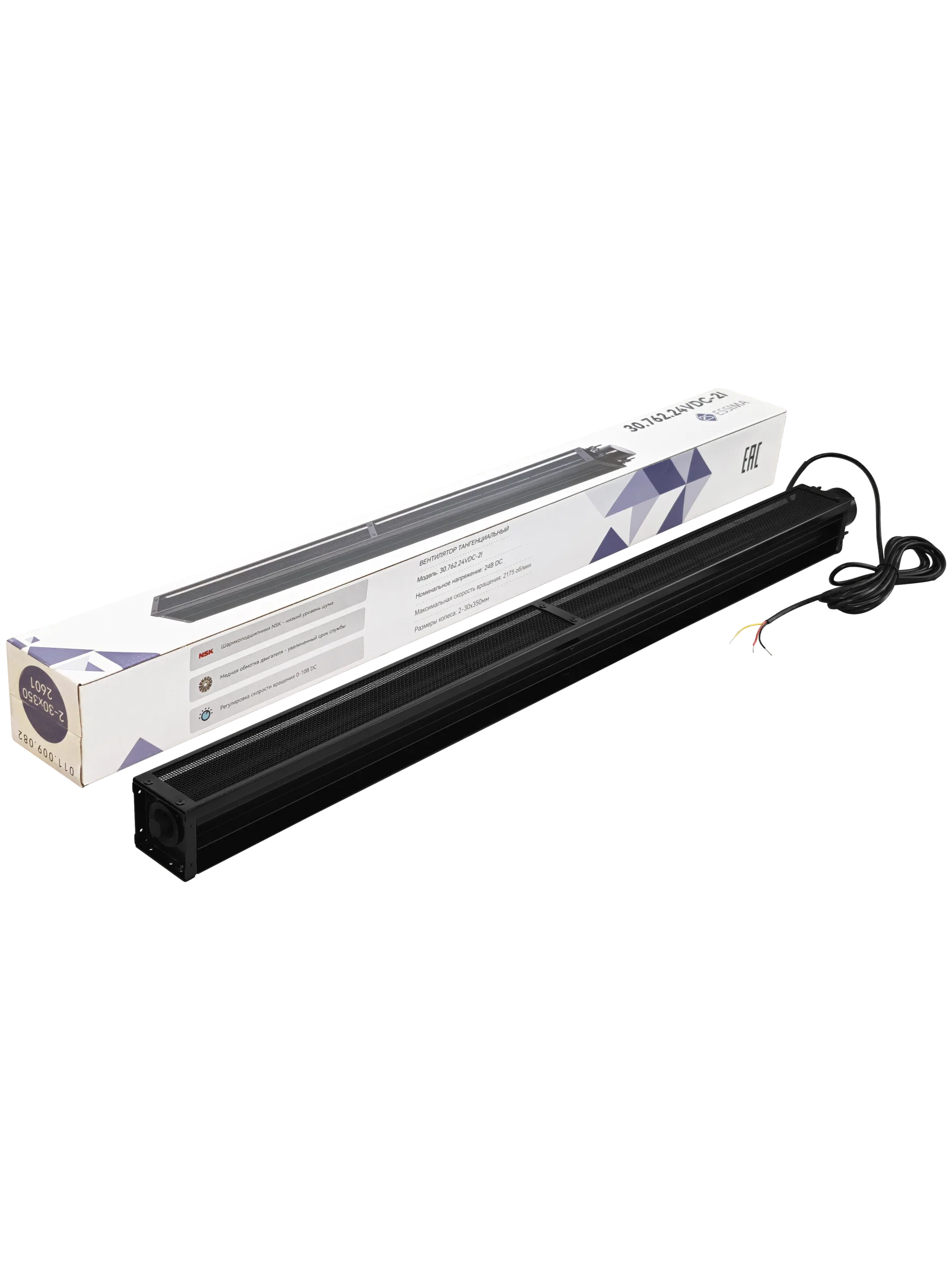

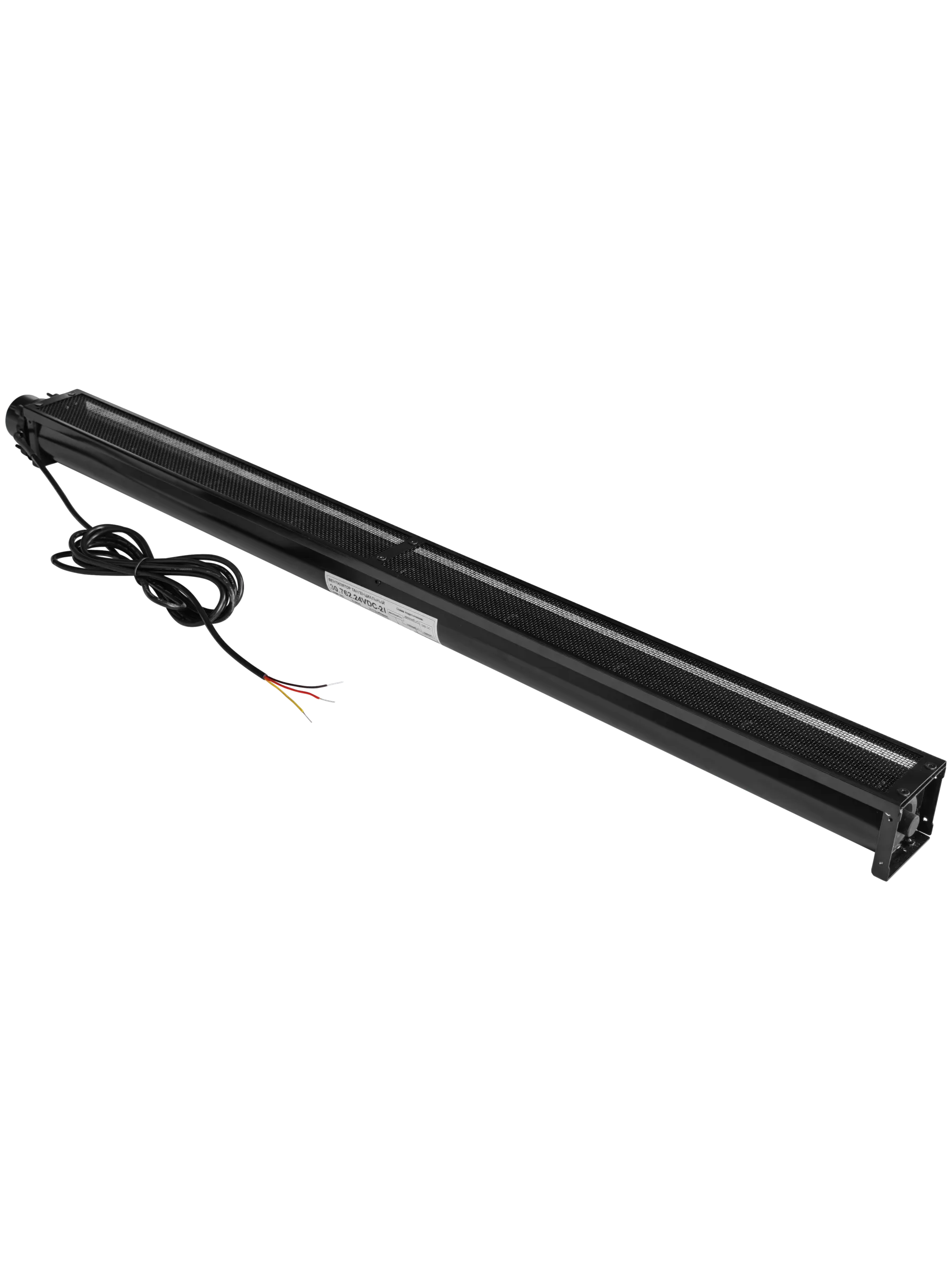

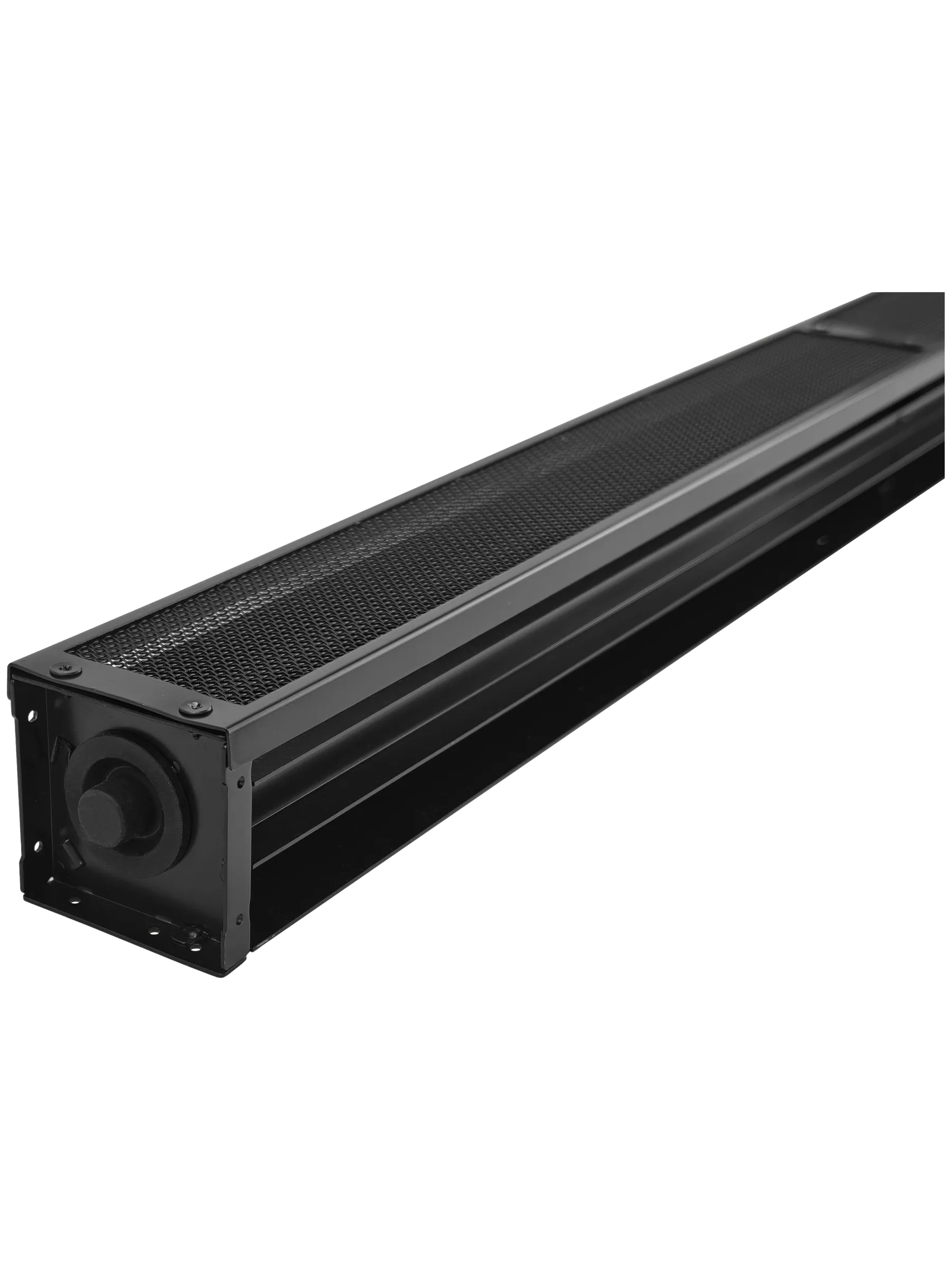

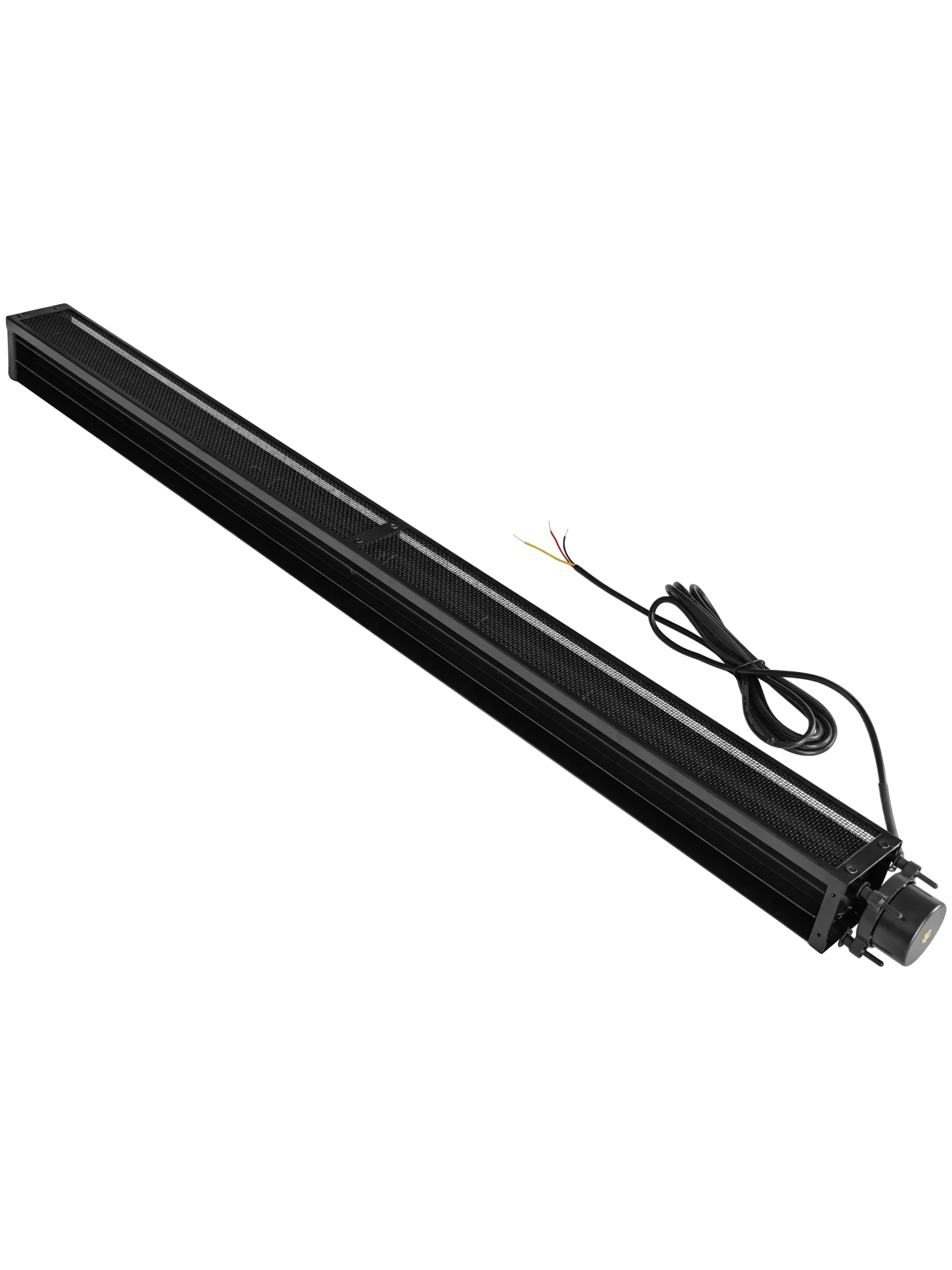

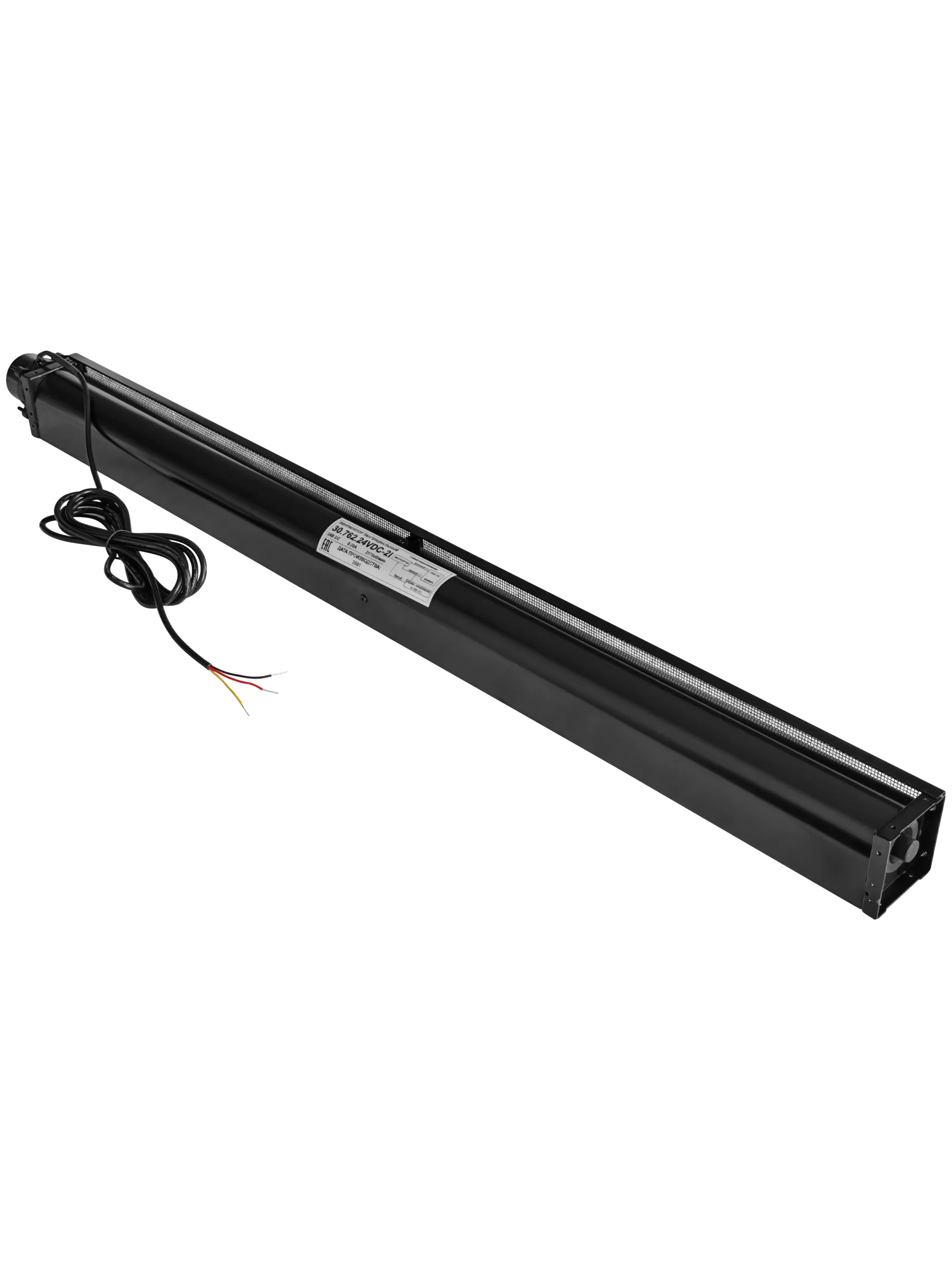

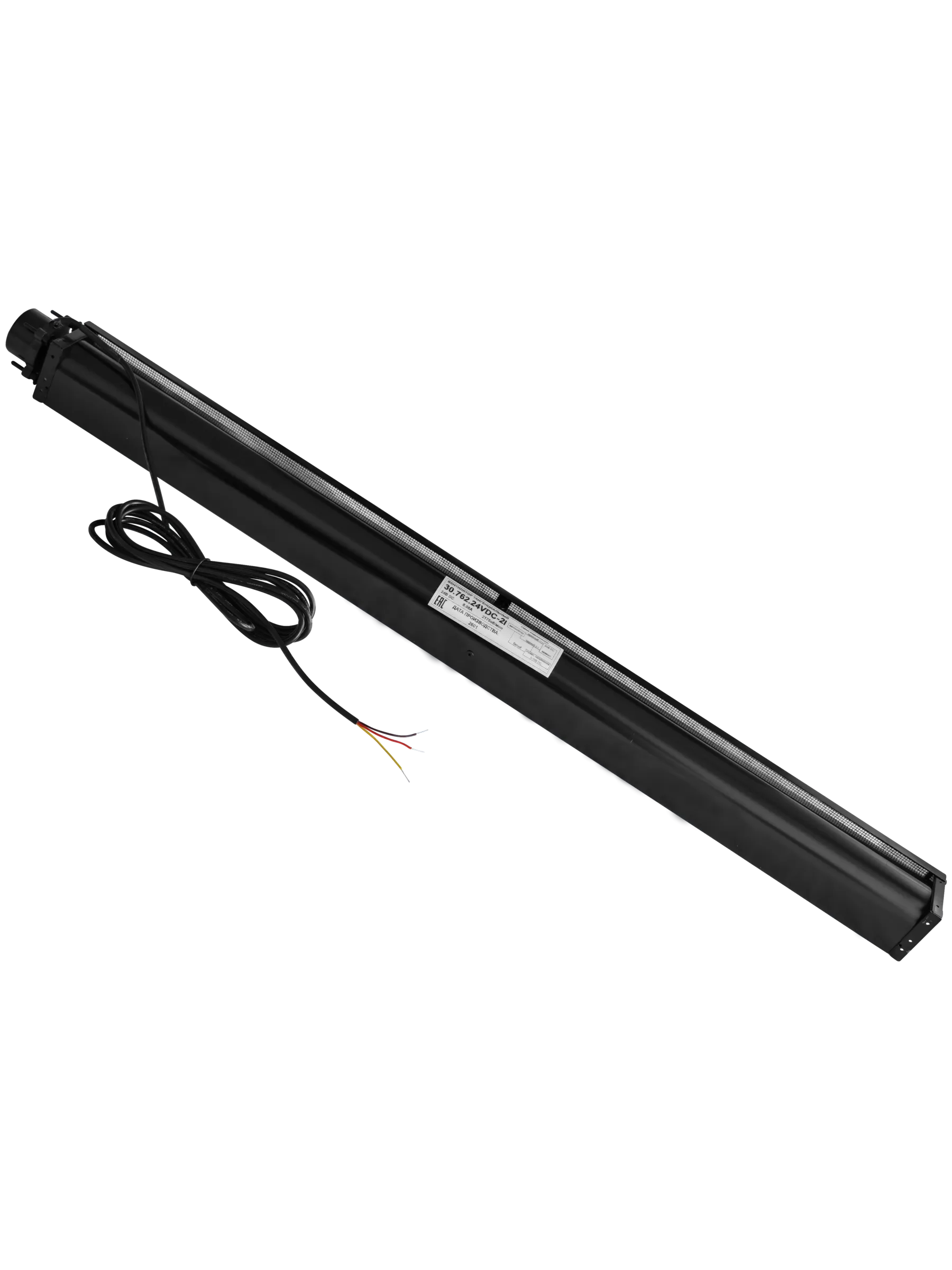

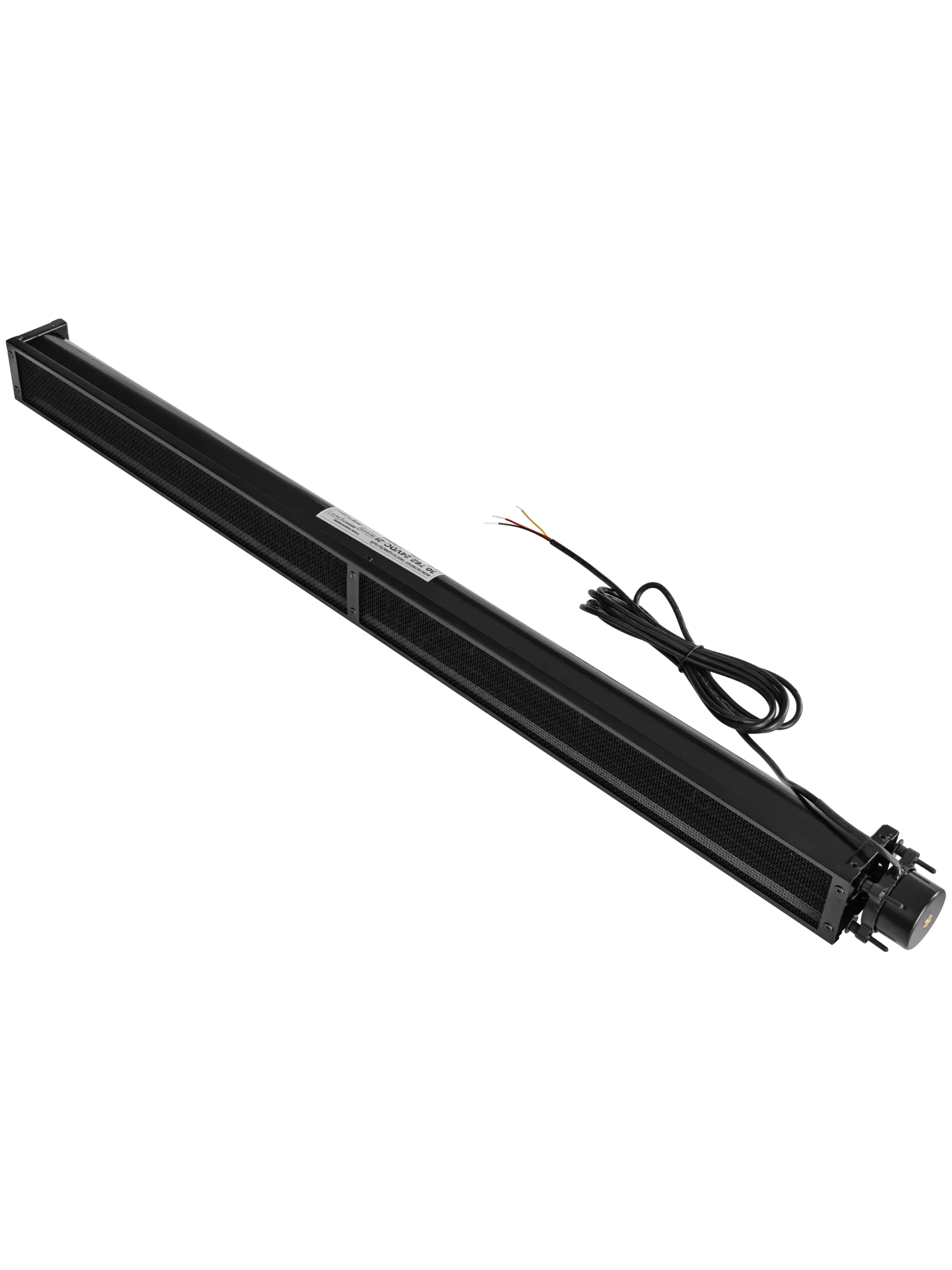

Cross-flow blower 30.762.24VDC-2I with control voltage

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model:
011.009.082

Manufacturer: Essima

Cross flow fan 30.762.24VDC-2I with speed regulation by means of control voltage. DC motor can be used to create an airflow in devices responsible for climate-control.
Rated voltage 24VDC.
Width of the airflow - 720mm.
Max air flow 160 m³/h.
Control voltage range 0…10V.

$74.50

Available: 943 pcs

pcs

Technical characteristics

Wheel diameter	30 mm
Width of airflow	718 mm
Rated operational voltage	24V DC
Speed control	0…10V voltage control
Speed	2400rpm
Current	0.14 A
Max air flow	160 m³/h
Noise level	33 dB(A)
Motor IP class	IP20
Insulation class	F

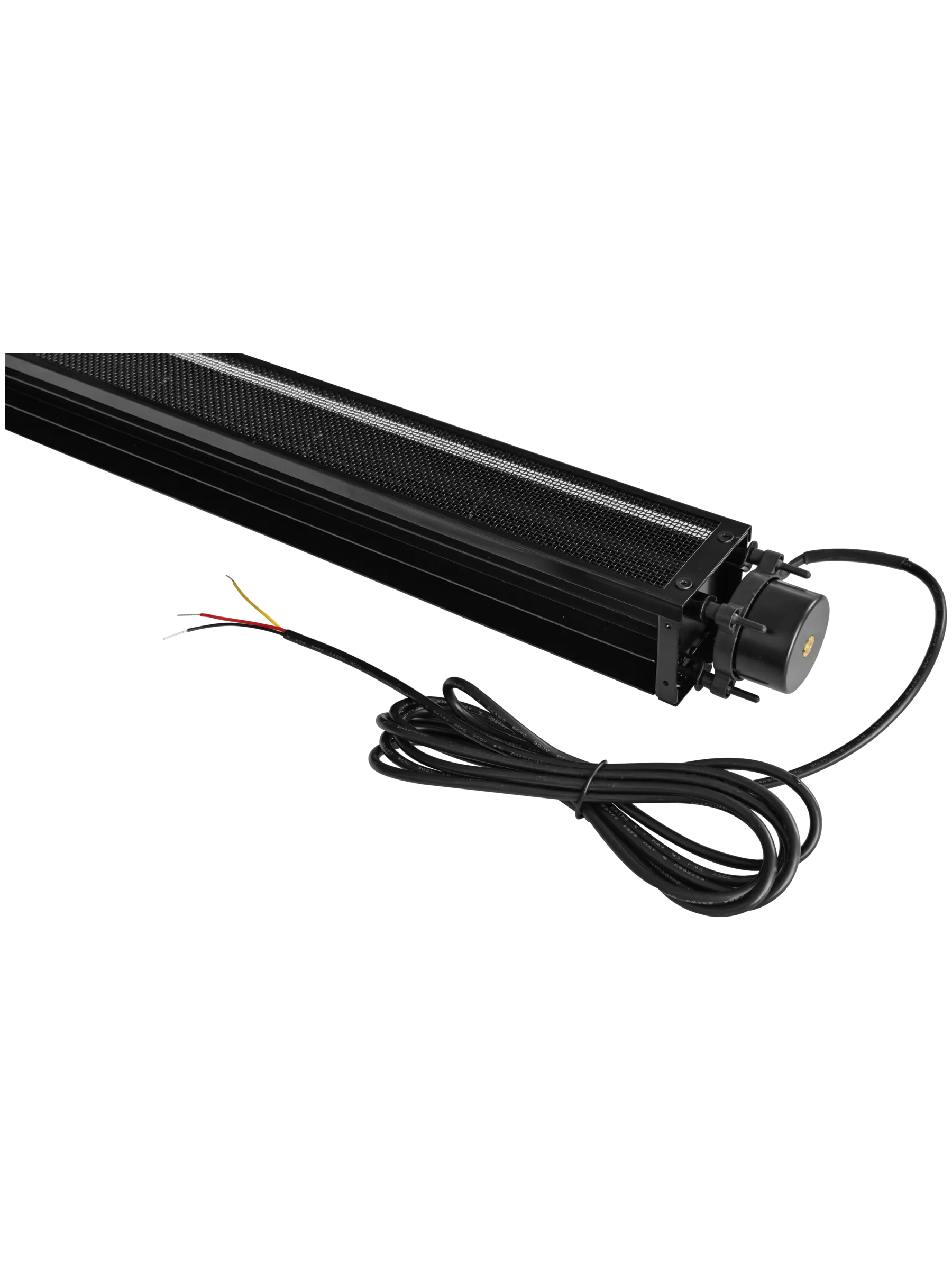

Connection	3 lead wire, length 2500mm

Dimensions and wiring diagram

wiring diagram of cross flow fan VD116-24D1

Similar or replacement products 30.762.24VDC-2I

VD116-24D1

ST-EE03072R24-V1
