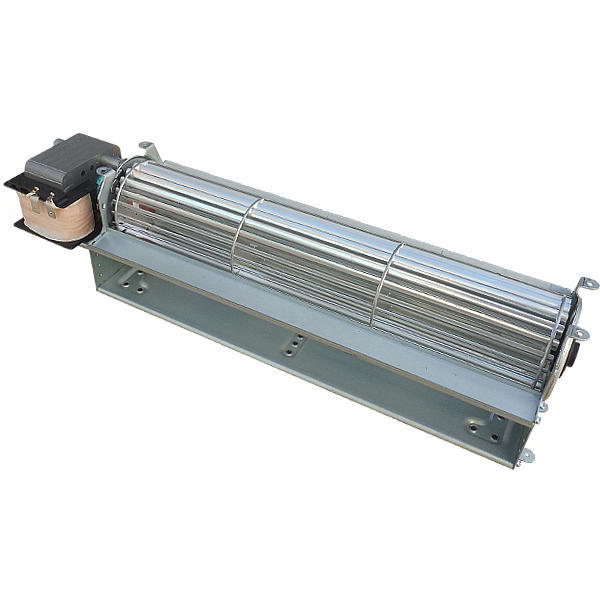

Cross-flow fan JQF25.60.240L

Model: 011.012.111
Cross-flow blower JQF25.60.240L
Cross-flow fan JQF25.60.240L creates wide uniformly directed air flow by means of tangential fan wheel. It is intended to be used as a ventilation unit in air curtains, conditioners, etc for aeration and cooling down the required objects.
$17.43
Available: 71 pcs
 pcs

Technical data

Direction of fan wheel rotationcounterclockwise (when looking from the motor side)
Bearing typeball bearings
Supply voltage230VAC 50Hz
Input power60W
Current0.37А
Insulation classH
Flow speed≥ 7.5 m/s
Temperature rise≤ 115K
Max air flow240 m3/h
Speed2200±100rpm
Motor positionleft

Dimensions

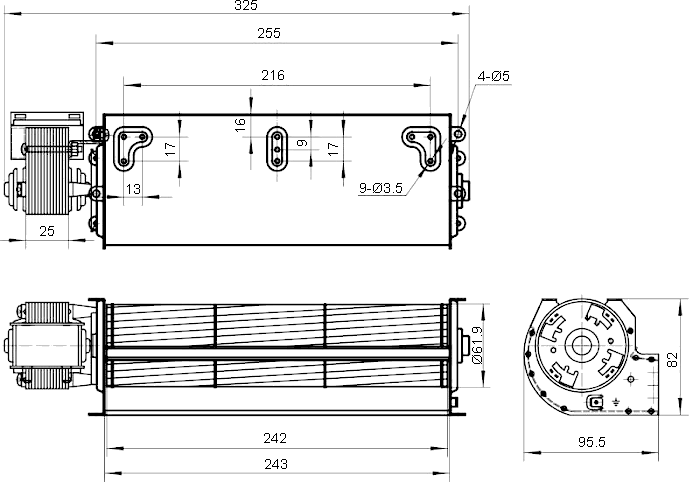

Cross flow fan JQF25.60.240L dimensions
