Model: 002.108.008

Manufacturer: Arcolectric (United Kingdom)

0568 A series neon red lamp is intended for electric circuits state indication in stationary and/or mobile electrical equipment. Two types of terminals are available - 200mm length wires or fastons 4.8x0.8mm. Can be supplied with either neon lamp or DC LED lamp or filament as a light source.
Different body and lense colours are available on request.

☎ Price by call

Description

Маркировка

H				0568 A				X				red				230V				Neon

																								Light source type


																								Voltage


																								Lense colour


																								Baffle between terminals


																								X − long
																								Y − short
																								W − without baffle (L0568A)
																								Indicator model


																								Terminal type


																								L − wires
																								H − faston 4.8x0.8

Indicators model range

Terminals	Model	Baffle	Lense colour	Lamp rated voltage	Light source
L H 4.8x0.8	0568 A	X Y W	red, amber, green, clear lenses	100/130V, 200/250V	Neon lamp
			red, yellow, green, blue, white	2.0/2.2V	LED-DC lamp
			red, amber, green, clear lenses, blue	6V, 12/14V, 24/28V	Filament

Characteristics

Body material	Nylon 6.6
Lense material	polycarbonate
H type contacts	tin-plated brass
Operating temperature	T100°C − conforms europian certificates T65°C/T75°C − conforms US and Canadian certificates

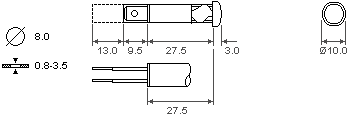

Dimensions
