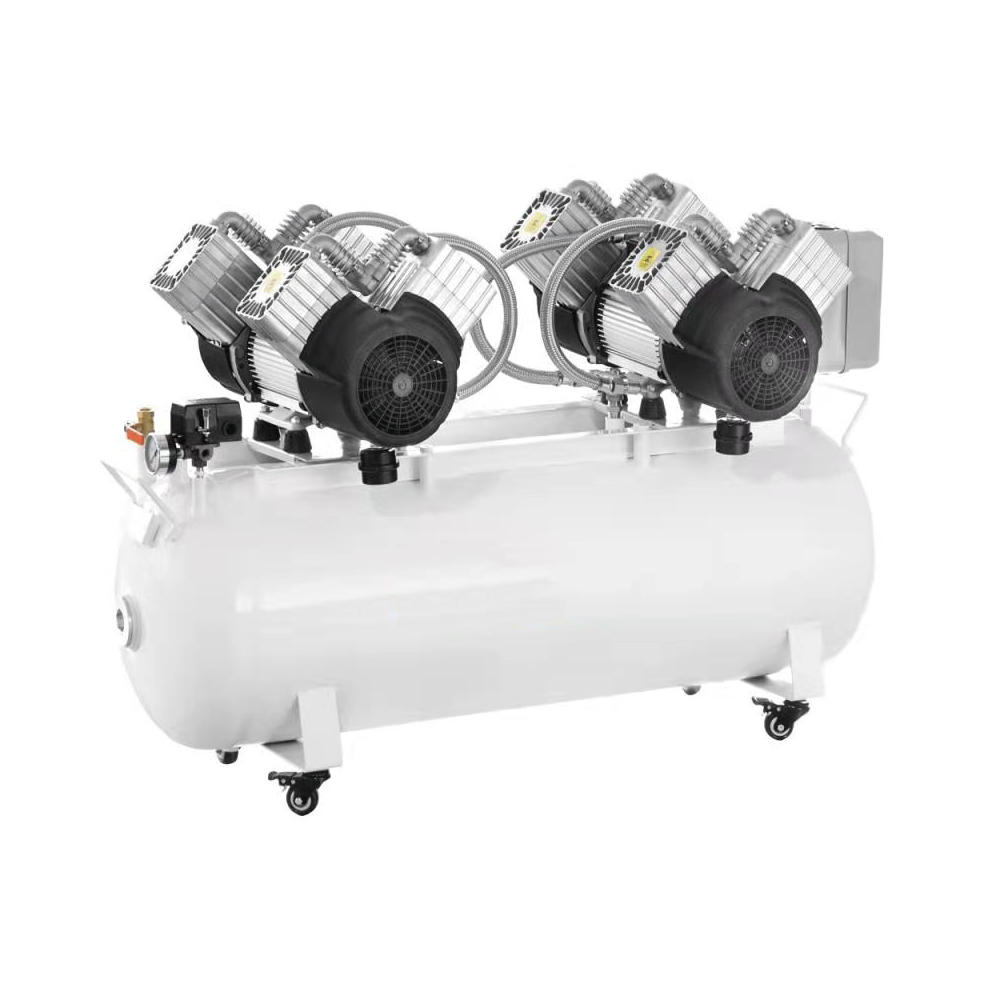

V type oil free air compressor ESC-800-4400-10-150L

Model: 029.001.086
Air compressor ESC-800-4400-10-150L
Oil free air compressor with 4V piston motor and 150l gas tank.
− Maximum air flow 800 l/min.
− Supply voltage 380VAC, 3-phase, 50Hz.
− Power 4.4kW.
− Maximum air pressure 1MPa.
☎ Price by call

Specifications

ModelESC-800-4400-10-150L
Compressor typeoil free air compressor
Motor type4V piston motor
Supply voltage380 VAC 50Hz
Phase3
Max air flow800 l/min (48m³/h)
Motor power2*2200 W
Max pressure10 bar (1MPa)
Adjust pressure range6-10 bar
Motor speed1450 rpm
Gas tank volume150 l
Overall dimensions1350x450x800 mm
Net weight196 kg

Technical characteristics of V type oil free air compressors

Model name Supply voltage, VAC Total power, kW Number of motors Max air flow, l/min Max pressure, MPa Gas tank volume, l Weight, kg Overall dimensions, mm
ESC-400-2200-10-100L 380 2,2 1 400 1,0 100 130 1050х450х800
ESC-800-4400-10-150L 380 4,4 2 800 1,0 150 196 1350х450х800
ESC-1200-6600-10-200L 380 6,6 3 1200 1,0 200 248 1750х450х800
ESC-1600-8800-10-400L 380 8,8 4 1600 1,0 400 260 1050х750х1200
ESC-2400-13200-10-580L 380 13,2 6 2400 1,0 580 390 1050х750х1700
ESC-3600-19800-10-800L 380 19,8 9 3600 1,0 2*400 565 1550х750х1700
ESC-4800-26400-10-1160L 380 26,4 12 4800 1,0 2*580 780 2100х750х1700
ESC-7200-39600-10-1740L 380 39,6 18 7200 1,0 3*580 1130 3100х750х1700
