Scroll compressor ZF09K4E-TFD-551 Copeland

Model: 029.001.051

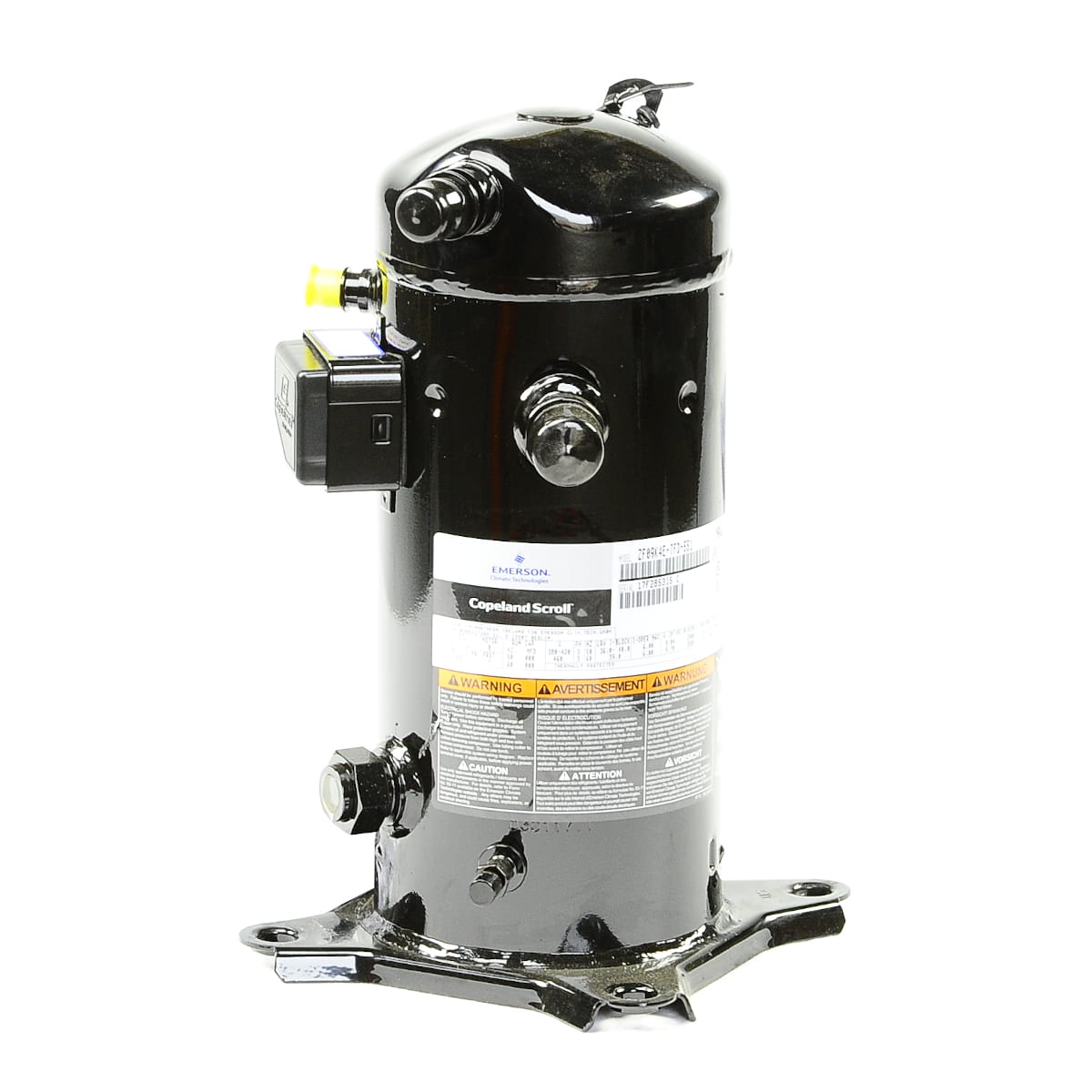

Scroll compressor ZF09K4E-TFD-551 Copeland
Manufacturer: Copeland
The scroll compressor ZF09K4E-TFD-551 of the ZF Copeland Scroll series is used in refrigeration, provides high performance in low temperature conditions. Compressor design optimized for food freezing requirements.
− Low temperature mode.
− Supply voltage 380-420V, 3 phase, 50Hz.
− Can be used with R407A/F, R448A/R449A, R404A refrigerants.
− Volumetric productivity 8m³/h.
☎ Price by call

Specifications

ModelZF09K4E-TFD-551
Compressor typescroll hermetic compressor with liquid refrigerant injection into the compression chamber
Temperature conditionslow temperature
Application arearefrigeration technology
Refrigerants approvedR407A/F, R448A/R449A, R404A
Volume productivity, m³/h8
Oil charge, l1.5
Brand and type of oilEmkarate RL32-3MAF synthetic polyester
Power supply380-420V, 3 phase, 50Hz
Maximum operating current, A6
Overall dimensions (length×width×height), mm243x244x391
Suction nozzle diameter, inch1 1/4
Discharge pipe diameter, inch1
Net weight, kg27

Range ZF Copeland Scroll

Model Volume productivity, m³/h Engine Version/Code Maximum operating current (A) Dimensions (LxWxH), mm
3 phases** 3 phases**
Liquid Injection Models
ZF06K4E 5.9 TFD 5 243 x 245 x 369
ZF08K4E 7.3 TFD 6 243 x 245 x 391
ZF09K4E 8 TFD 6 243 x 244 x 391
ZF11K4E 9.9 TFD 7 243 x 244 x 405
ZF13K4E 11.8 TFD 8 246 x 251 x 442
ZF15K4E 14.5 TFD 10 246 x 251 x 442
ZF18K4E 17.1 TFD 12 246 x 251 x 442
Liquid Injected ZF Summit Models
ZF25K5E 21.4 TFD 16 246 x 257 x 452
ZF34K5E 29.1 TFD 25 280 x 280 x 534
ZF41K5E 35.3 TFD 29 280 x 280 x 534
ZF49K5E 42.4 TFD 30 280 x 280 x 552
ZF54K5E 48.3 TFD 31 363 x 312 x 552
Models with improved steam injection system
ZF13KVE 11.7 TFD 9 246 x 251 x 442
ZF18KVE 17.1 TFD 13 246 x 251 x 442

** 3 phase: 380-420V / 50Hz
