Scroll compressor ZP31K5E-TFD-522 Copeland

Model: 029.001.071

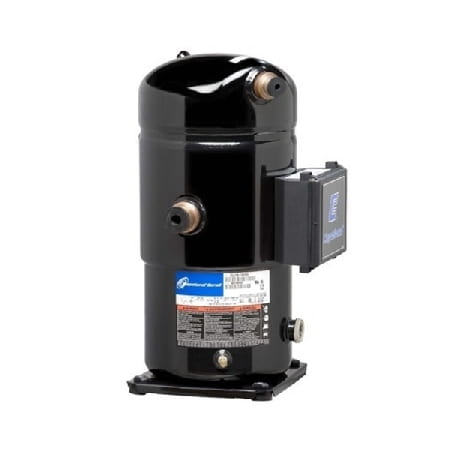

Scroll compressor ZP31K5E-TFD-522 Copeland
Manufacturer: Copeland
The scroll compressor ZP31K5E-TFD-522 of the ZP Copeland Scroll series is designed for climate systems, as well as industrial and precision cooling systems.
− High temperature mode.
− Supply voltage 380-420V, 3 phase, 50Hz.
− Runs on R-410A refrigerant.
− Volumetric productivity 5m³/h.
☎ Price by call

Specifications

ModelZP31K5E-TFD-522
Compressor typescroll hermetic compressor
Temperature conditionshigh temperature
Application areaair conditioning systems
Refrigerants approvedR-410A
Volume productivity, m³/h5
Oil charge, l0.7
Brand and type of oilEmkarate RL32-3MAF synthetic polyester
Power supply380-420V, 3 phase, 50Hz
Maximum operating current, A6
Overall dimensions (length×width×height), mm242x242x388
Suction nozzle diameter, inch3/4
Discharge pipe diameter, inch1/2
Net weight, kg23

Range ZP Copeland Scroll

Model Volume productivity, m³/h Engine Version/Code Maximum operating current (A) Dimensions (LxWxH), mm
1 phase* 3 phases** 1 phase* 3 phases**
ZP24K5E 3.9 PFJ TFD 13 5 242 x 242 x 387
ZP29K5E 4.8 PFJ TFD 16 6 242 x 242 x 387
ZP31K5E 5 PFJ TFD 17 6 242 x 242 x 388
ZP36K5E 6 PFJ TFD 22 7 242 x 242 x 418
ZP42K5E 6.9 PFJ TFD 26 8 242 x 242 x 418
ZP54K5E 8.9 PFJ TFD 31 10 242 x 242 x 418
ZP61K5E 10 — TFD — 12 246 x 246 x 443
ZP72KCE 11.7 — TFD — 15 246 x 246 x 443
ZP83KCE 13.4 — TFD — 15 246 x 246 x 443
ZP91KCE 14.7 — TFD — 16 246 x 248 x 446
ZP104KCE 16.8 — TFD — 18 264 x 284 x 476
ZP122KCE 19.5 — TFD — 22 293 x 258 x 559
ZP143KCE 23.1 — TFD — 25 297 x 262 x 559
ZP154KCE 24.8 — TFD — 31 329 x 298 x 552
ZP182KCE 29.1 — TFD — 34 264 x 284 x 552
ZP385KCE 60.8 — TWD — 65 448 x 392 x 715
ZP485KCE 77.3 — TWD — 82 391 x 447 x 746
ZP725KCE 115 — FED — 124 459 x 483 x 863

EN12900 conditions: Evaporating 5°C, Condensing 50°C, Superheat 10K, Subcooling 0K.
* 1 phase: 230V / 50Hz
** 3 phase: 380-420V / 50Hz
