Relay Finder 30.22.7.012.0010

Model: 005.066.061

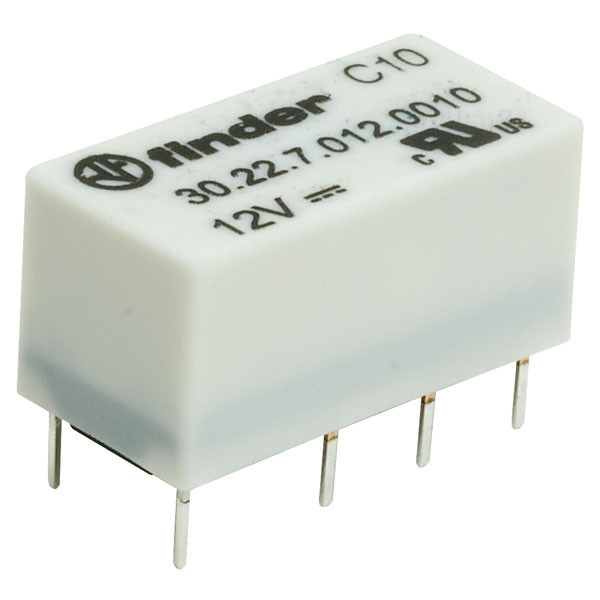

Relay Finder 30.22.7.012.0010
Manufacturer: Finder (Italy)
Signal relay 30.22.7.012.0010
• Au clad contacts;
• 2 pole changeover contacts 2A;
• PCB mount;
• Low level switching capability;
• Wash tight - RT III;
• Subminiature - industry standard DIL package;
• Sensitive DC coil - 200mW.
$3.01
Minimum Order: 20 by step: 20
 pcs

Specification

Contact specification
Contact configuration2 changeover contacts (DPDT)
Rated current/Max peak current2А/3A
Rated voltage/Max switching voltage125VAC/250VAC
Rated load АС1125 VA
Rated load АС15 (230VAC)25 VA
Single phase motor rating (230VAC)-
Breaking capacity DC1: 30/110/220 V2/0.3/- A
Minimum switching load10mW (0.1V/1mA)
Standard contact materialAgNi+Au
Coil specification
Nominal voltage (UN)12VDC
Rated power0.2W
Operating range(8.4...18)V
Holding voltage0.35UN
Must drop-out voltage0.05UN
Tachnical data
Mechanical life10х106 cycles
Electrical life at rated load АС1100х103 cycles
Operate/release time6/2 ms
Insulation between coil and contacts1.5kV
Dielectric strenght between open contacts750VАС
Ambient temperature range-40°C...+85°C
Environmental protectionRT III

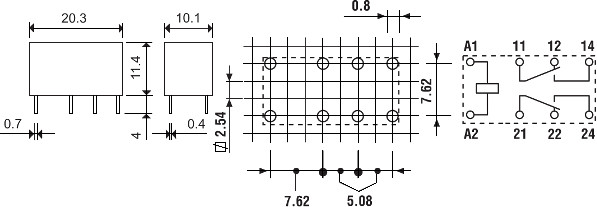

Dimensions and wiring diagram

relay 30.22.7.012.0010
