Relay Finder 40.31.9.024.0000

Model: 005.066.033

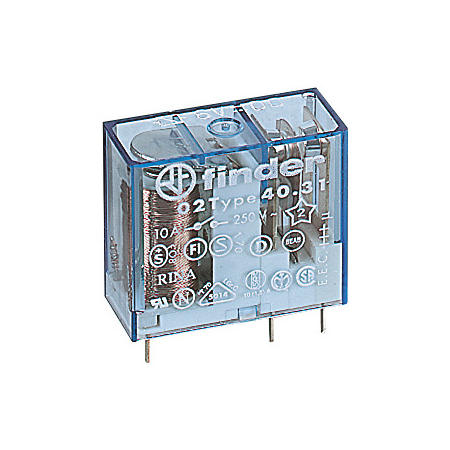

Relay Finder 40.31.9.024.0000
Manufacturer: Finder (Italy)
Miniature relay 40.31.9.024.0000.
− Pin length 3.5mm for PCB mount;
− 1 pole 10A;
− PCB or 95 series sockets;
− Coil 24VDC;
− Cadmium free contact material;
− 8 mm, 6kV isolation, coil-contacts;
− UL listing;
− Flux proof: RT II standard (RT III option).
$3.20
Minimum Order: 10 by step: 10
 pcs

Specification

Contacts characteristics
Contact configuration1 changeover contact (SPDT)
Rated current/Max peak current10А/20A
Rated voltage/Max switching voltage250VAC/400VAC
Rated load АС12500 VA
Rated load АС15 (230VAC)500 VA
Single phase motor rating (230VAC)0.37kW
Breaking capacity DC1: 30/110/220 V10/0.3/0.12 A
Minimum switching load300mW (5V/5mA)
Standard contact materialAgNi
Coil characteristics
Nominal voltage (UN)24VDC
Rated power0.65W
Operating range(0.73...1.5)UN
Holding voltage0.4UN
Must drop-out voltage0.1UN
Technical data
Mechanical life20х106 cycles
Electrical life at rated load АС1200х103 cycles
Operate/release time7/3 ms
Insulation between coil and contacts6kV (8 mm)
Dielectric strength between open contacts1000VАС
Ambient temperature range-40°C...+85°C
Environmental protectionRT II

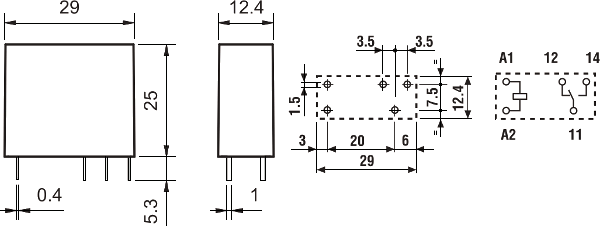

Dimensions and wiring diagram

Relay 40.31.9.024.0000 drawing
