Electromagnetic Relay LY4T AC220V

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 005.001.022

Electromagnetic Relay LY4T AC220V

Manufacturer: Essima

Relay LY4T АС220V with flanges:
− 4-pole;
− Contact rating 10A/250VАС;
− Contacts material AgCdO;
− Nominal coil voltage 220VАС;
− PCB mounting.

☎ Price by call

Description

Specification

Insulation resistance	500MΩ (500VDC)
Dielectric strength	ВСС 1500V/1 min BOC 1000V/1 min COC 1500V/1 min
Operate/release time	25ms / 15ms
Life	mechanical 10⁷ electrical 10⁵
Ambient temperature	-40°C...+70°C
Terminal type	PCB
Contact form	4Z
Contact resistance	50mΩ (1A/6VDC)
Contacts material	AgCdO
Contact capacity	10A/250VАС (28VDC)
Nominal coil power	0.9W / 1.0~1.3VA
Nominal voltage	220VAC
Pull-in voltage	176VAC
Release voltage	66VAC
Coil resistance (±10%)	14000 Ω

Dimensions and wiring diagram

LY4T AC220V relay dimensions

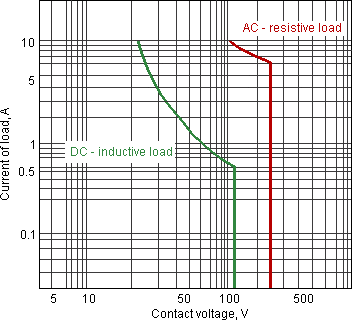

Maximum operating power

LY4T АC220V relay loading graph
