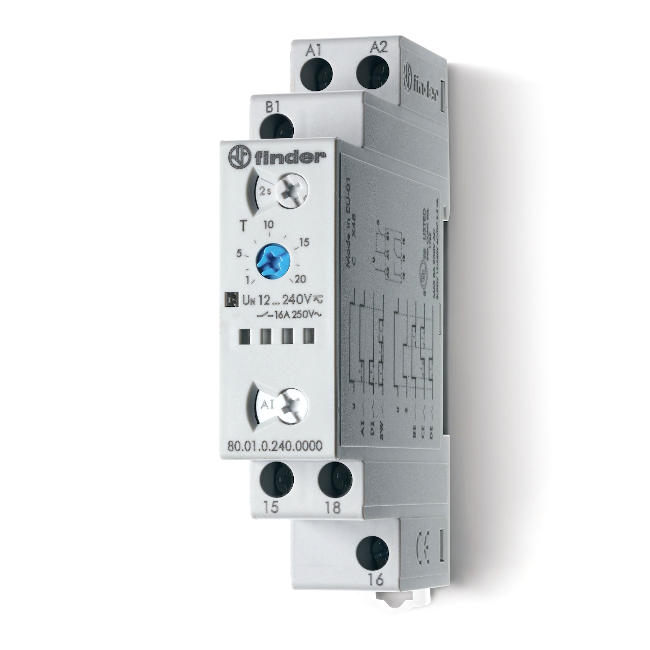

Modualar timer 80.01.0.240.0000

Model: 005.066.203
Modualar timer 80.01.0.240.0000
Manufacturer: Finder (Italy)
Modualar timer 80.01.0.240.0000 - multifunctional (on-delay) timer with rated voltage 12...240V AC/DC.
•  Multi-functional:
AI: On-delay
DI: Interval
SW: Symmetrical flasher (starting pulse on)
BE: Off-delay with control signal
CE: On- and off-delay with control signal
DE: Interval with control signal on
•  1 pole with rated current 16A.
•  17.5 mm wide
•  six time scales from 0.1 s to 24 h
•  high input/output isolation
•  35 mm rail (EN 60715) mount
☎ Price by call

Specification

Contact specification
Contact configuration1 CO (SPDT)
Rated current/Max current16A/30A
Rated voltage/Max switching voltage250VAC/400VAC
Rated loadАС1: 4000 VA
АС15 (230VAC): 750 VA
Single phase motor rating (230VAC)550W
Breaking capacity DC1: 30/110/22016А/0.3А/0.12А
Minimum switching load500 (10/5) mW (V/mА)
Standard contact materialAgNi
Supply specification
Nominal voltage (Un)12...240V AC 50/60Hz
Rated power AC/DC< 1.8/< 1 VA (50 Hz)/W
Operating range10.8...265 VAC
10.8...265 VDC
Technical data
Specified time range(0.1...2)s, (1...20)s, (0.1...2)min, (1...20)min, (0.1...2)h, (1...24)h
Repeatability±1%
Recovery time100ms
Minimum control impulse−
Setting accuracy full range±5%
Electrical life at rated load АС150×103 cycles
Ambient temperature range-10°C...+50°C
Degree of protectionIP 20

Dimensions and wiring diagram

80.01 modular times dimensions and scheme
80.01 modular times dimensions and scheme
