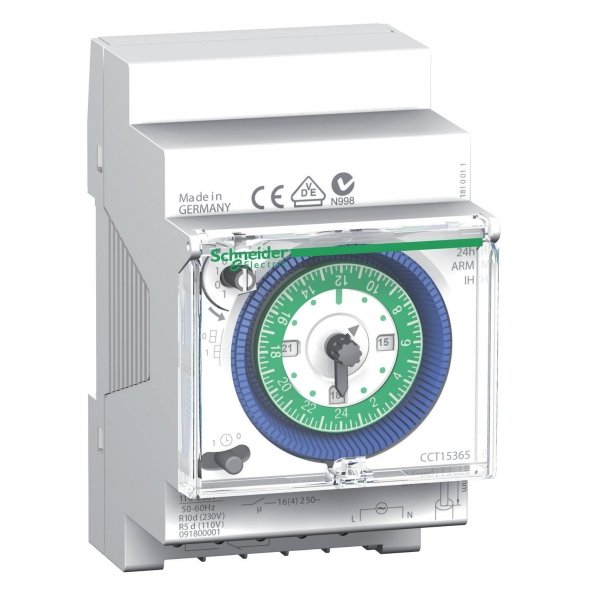

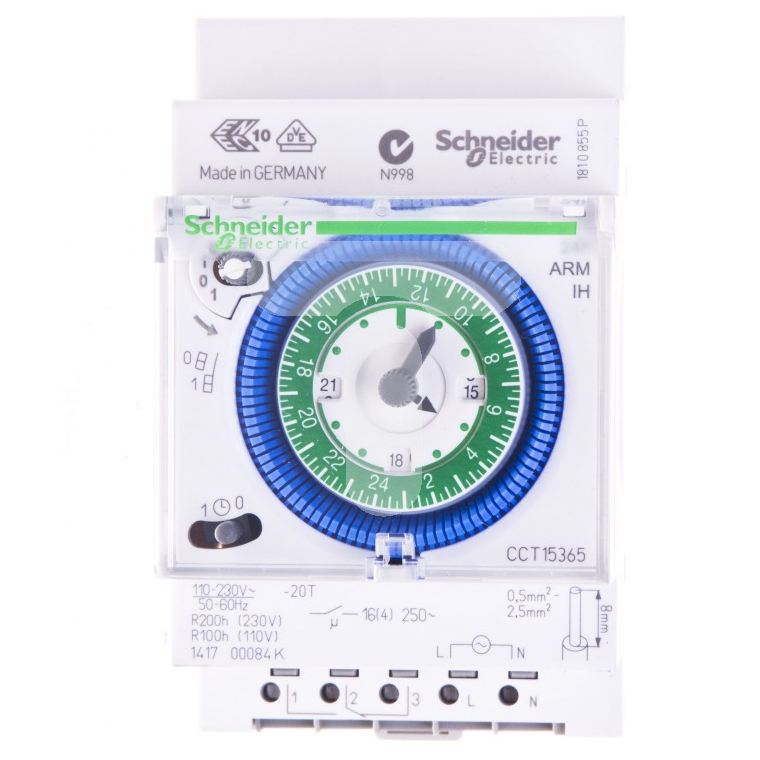

Mechanical time switch CCT15365 Acti 9 IH 24h

Model: 005.065.005
  • photo 3
  • photo 4
Mechanical time switch CCT15365
Manufacturer: Schneider Electric
Barcode: 3606480179587
Mechanical time switch CCT15365 automatically switches On and Off loads according to the program entered by the user. Operates on a daily cycle: the same program is repeated day after day.
Number of channels - 1. Mimimum time between 2 switching operations 15min.
Number of switching operations - 48 On, 48 Off.
Saving on mains cut off - 200 hours.
Output contact changeover switch 16A.
Time changeover (summer/winter) - manual.
☎ Price by call

Technical data

General characteristics
Range of productActi 9
Product typemechanical time switch
Device short nameIH
Number of channels1
Function availablemanual time changeover
Complementary characteristics
Device applicationconstruction
Load typeHalogen lamp 230VAC, 1100W
Incandescent lamp 230VAC, 1100W
Dual mounted fluorescent tube, balast: conventional, 2х100W
Dual mounted fluorescent tube, balast: conventional, 2х58W
Non-corrected fluorescent tube, balast: conventional, 100W
Non-corrected fluorescent tube, balast: conventional, 40W
Non-corrected fluorescent tube, balast: conventional, 58W
Parallel-corrected fluorescent tube, balast: conventional, 40W
Parallel-corrected fluorescent tube, balast: conventional, 58W
Serial-corrected fluorescent tube, balast: conventional, 100W
Serial-corrected fluorescent tube, balast: conventional, 40W
Serial-corrected fluorescent tube, balast: conventional, 58W
Cycle duration24 h
Measurement accuracy±1 s/day
Maximum number of switchings48 on - 48 off
Minimum interval duration15 min
Type of settingmanual time changeover
Power consumption2,5 VA
Maximum switching currentcos φ=1 - 16A/250VAC
cos φ=0.6 - 4A/250VAC
Battery life6 years
Backup time200h time and program saving 230VAC
100h time and program saving 100VAC
Mounting supportDIN rail
9 mm pitch6
Colour tintwhite (RAL 9003)
Connections - terminalsscrewless terminals
Degree of protectionIP20 B
Overall dimensions (WxHxD)54х90х66 мм
Product weight0,198 kg
Ambient air temperature for operation-20°C...+55°C

Relay dimensions and wiring diagram

CCT15365 Schneider Electric Time relays dimensions and wiring diagram
