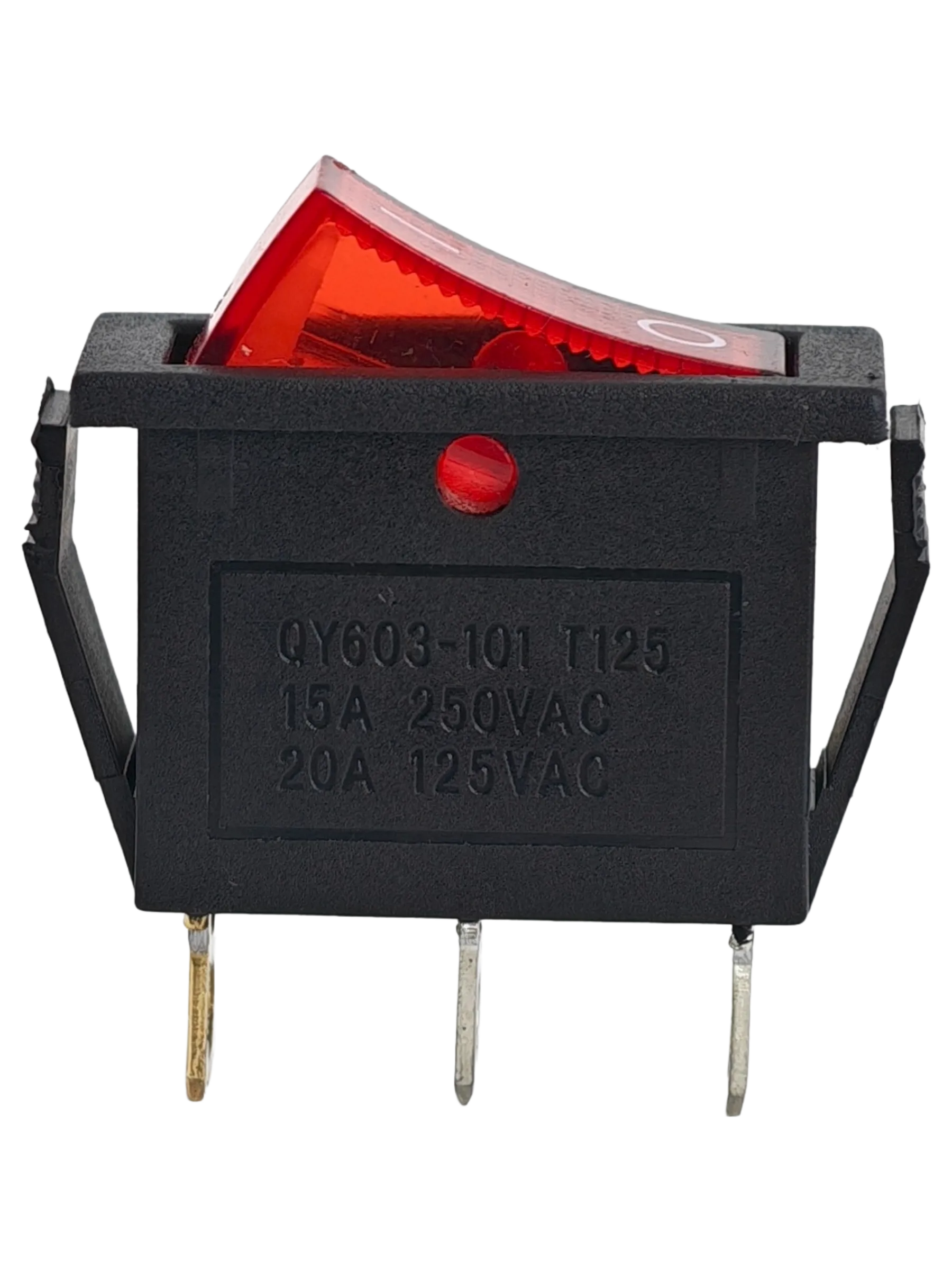

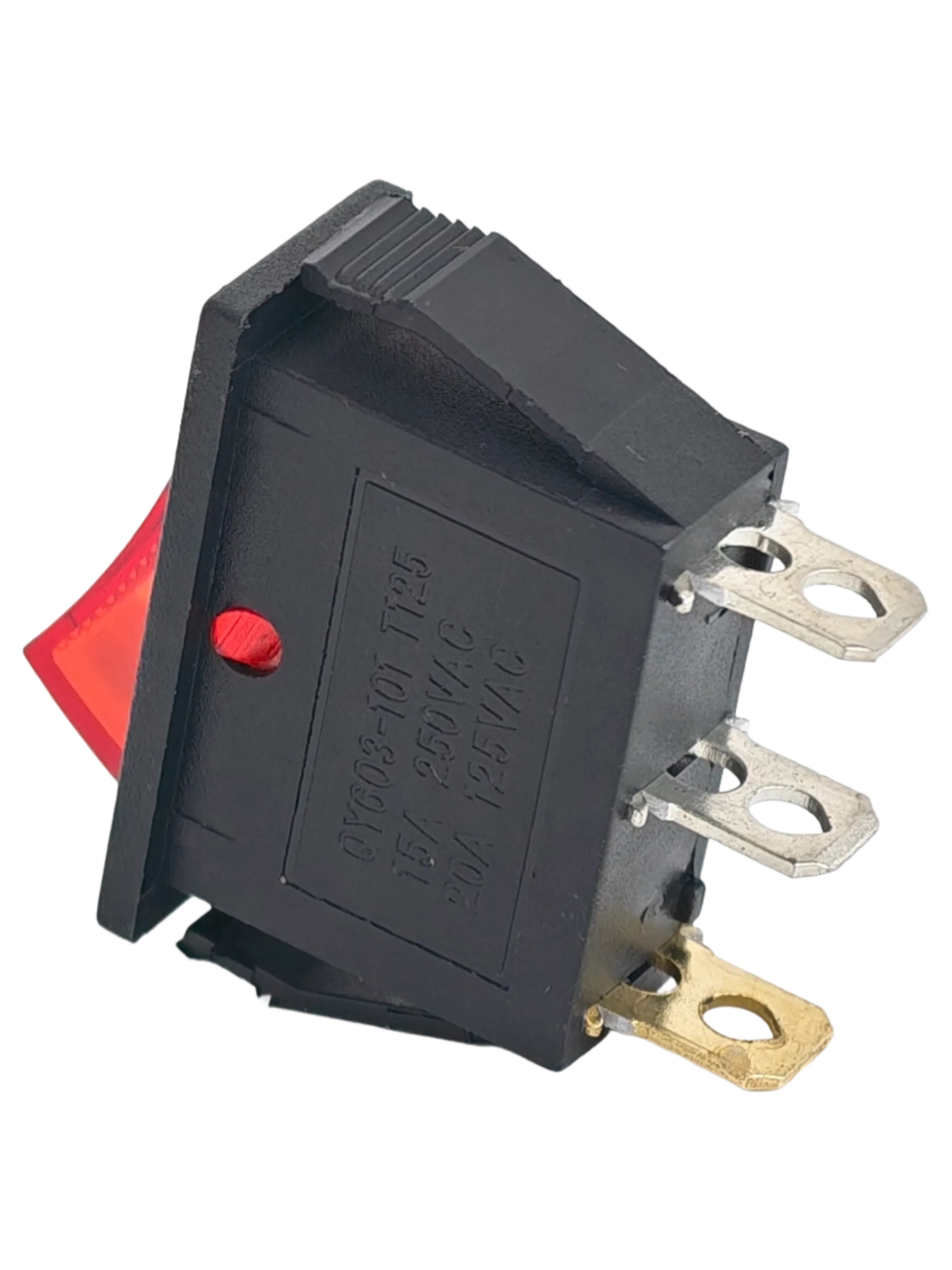

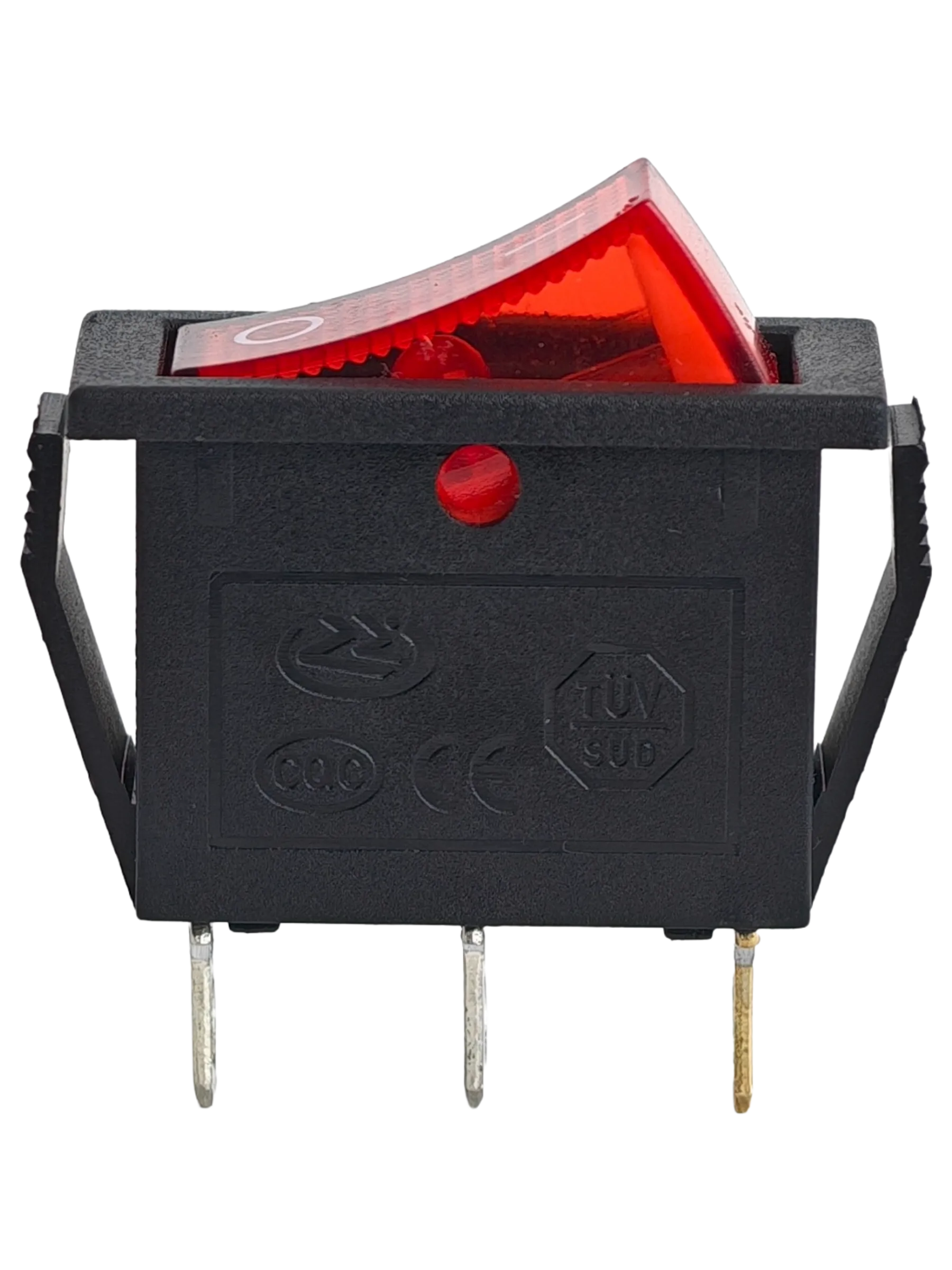

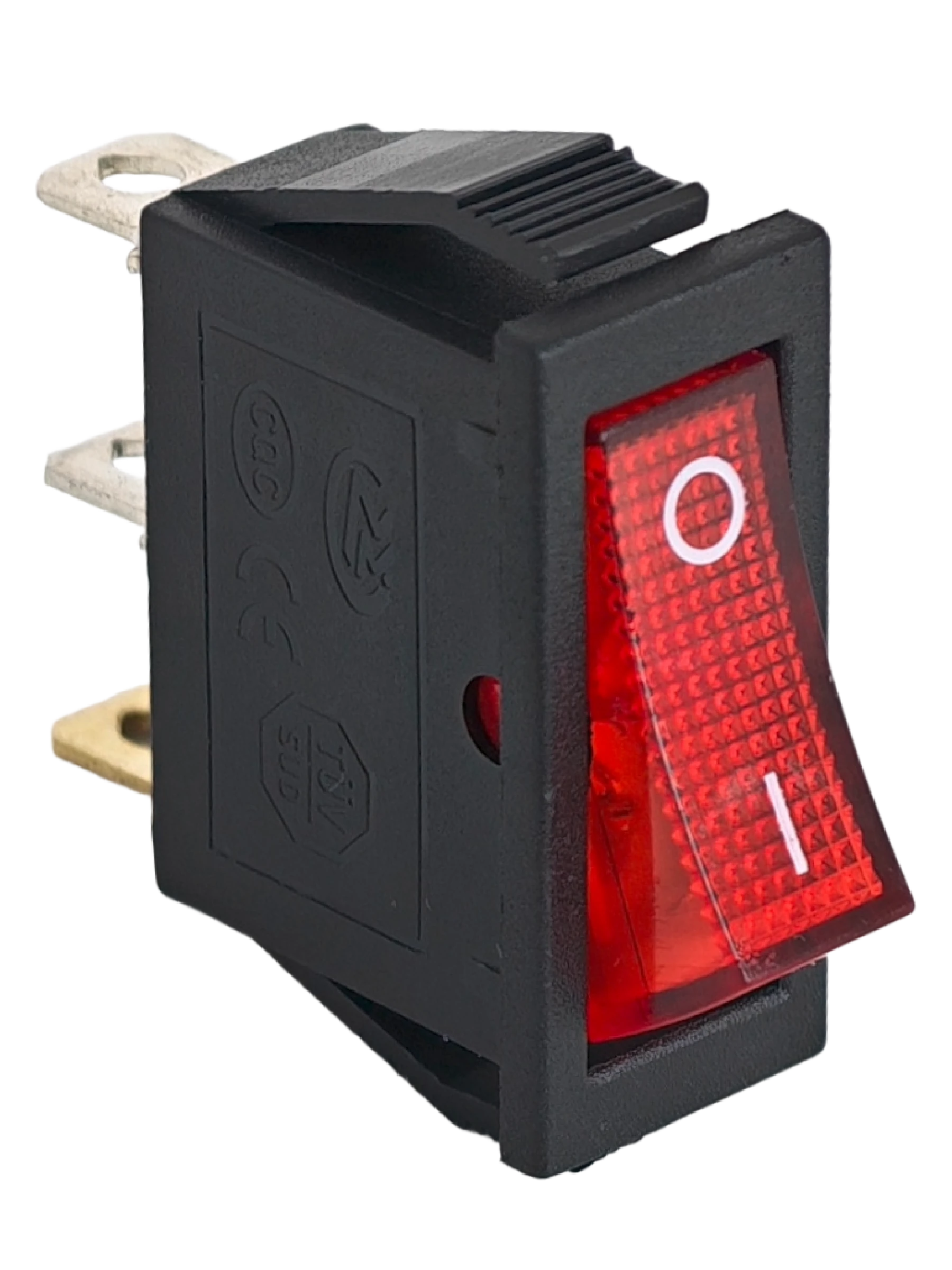

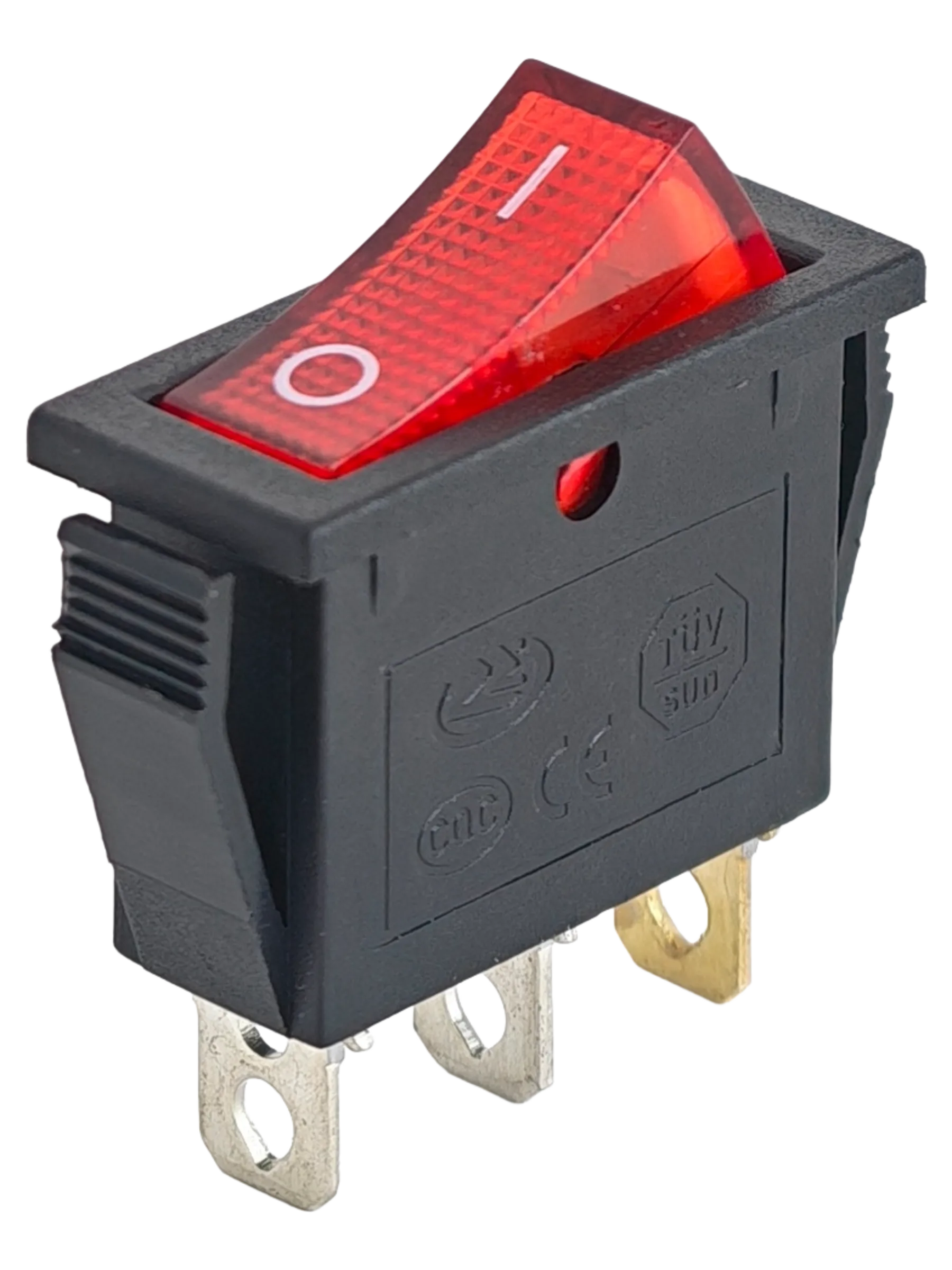

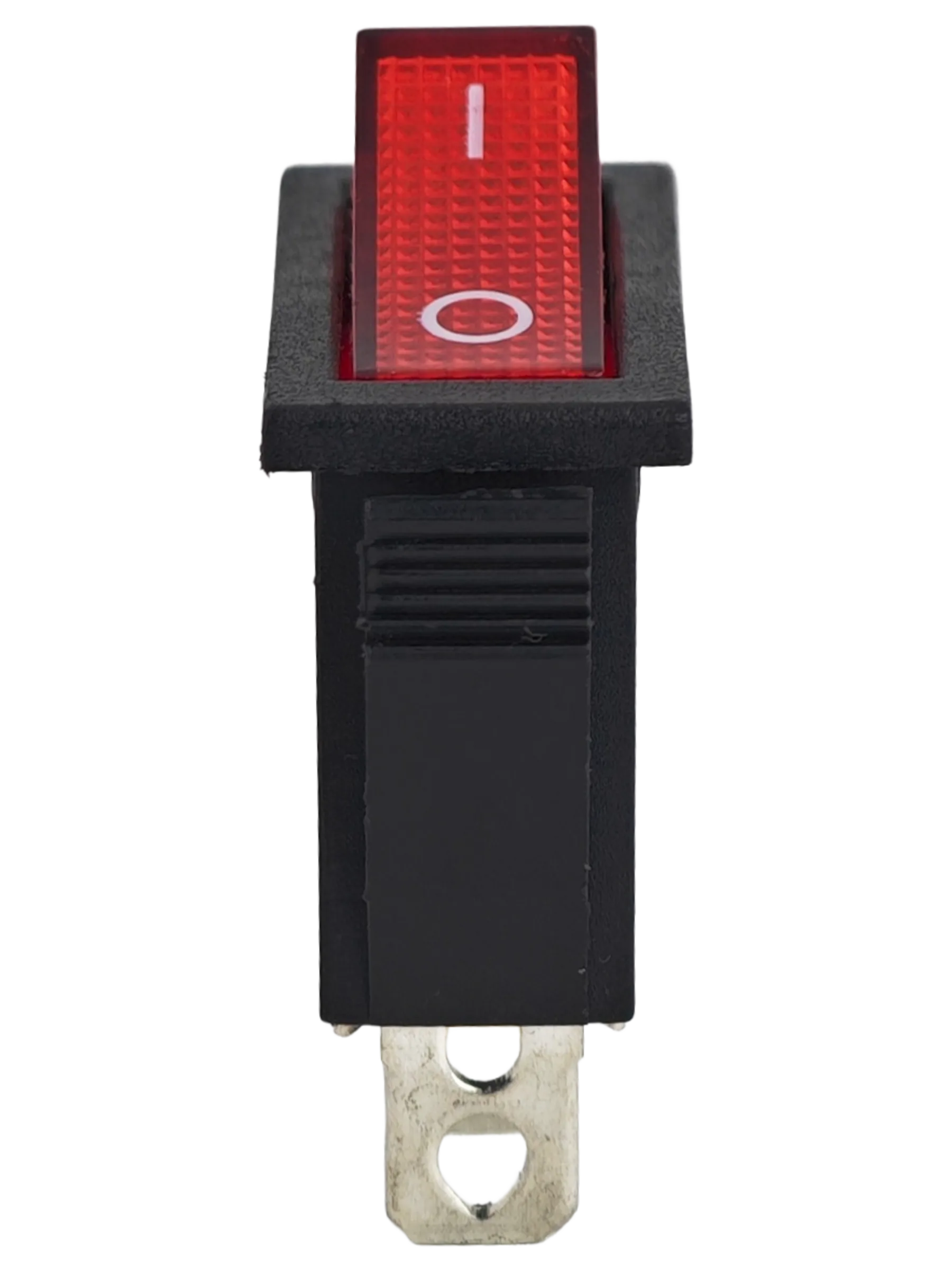

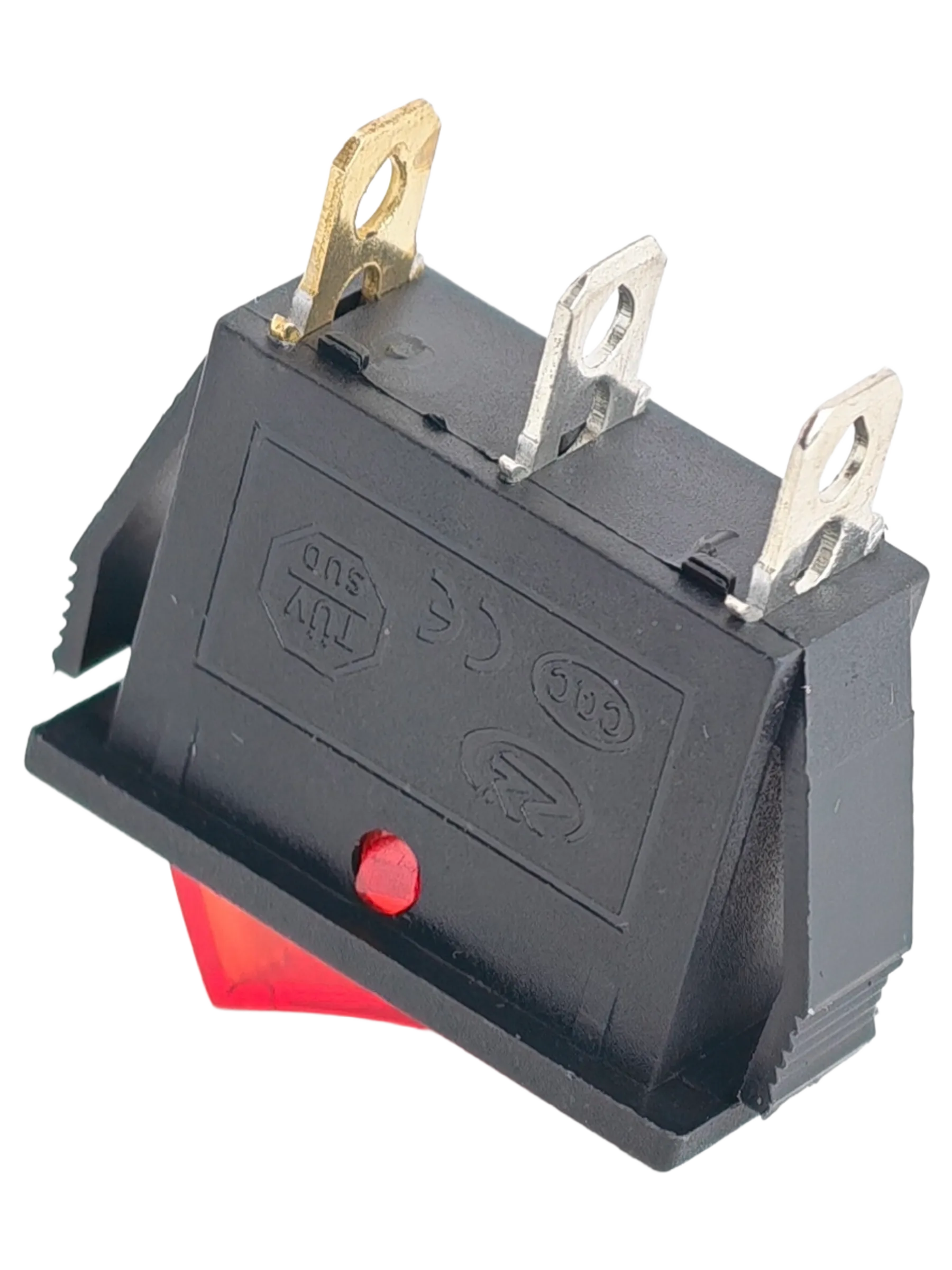

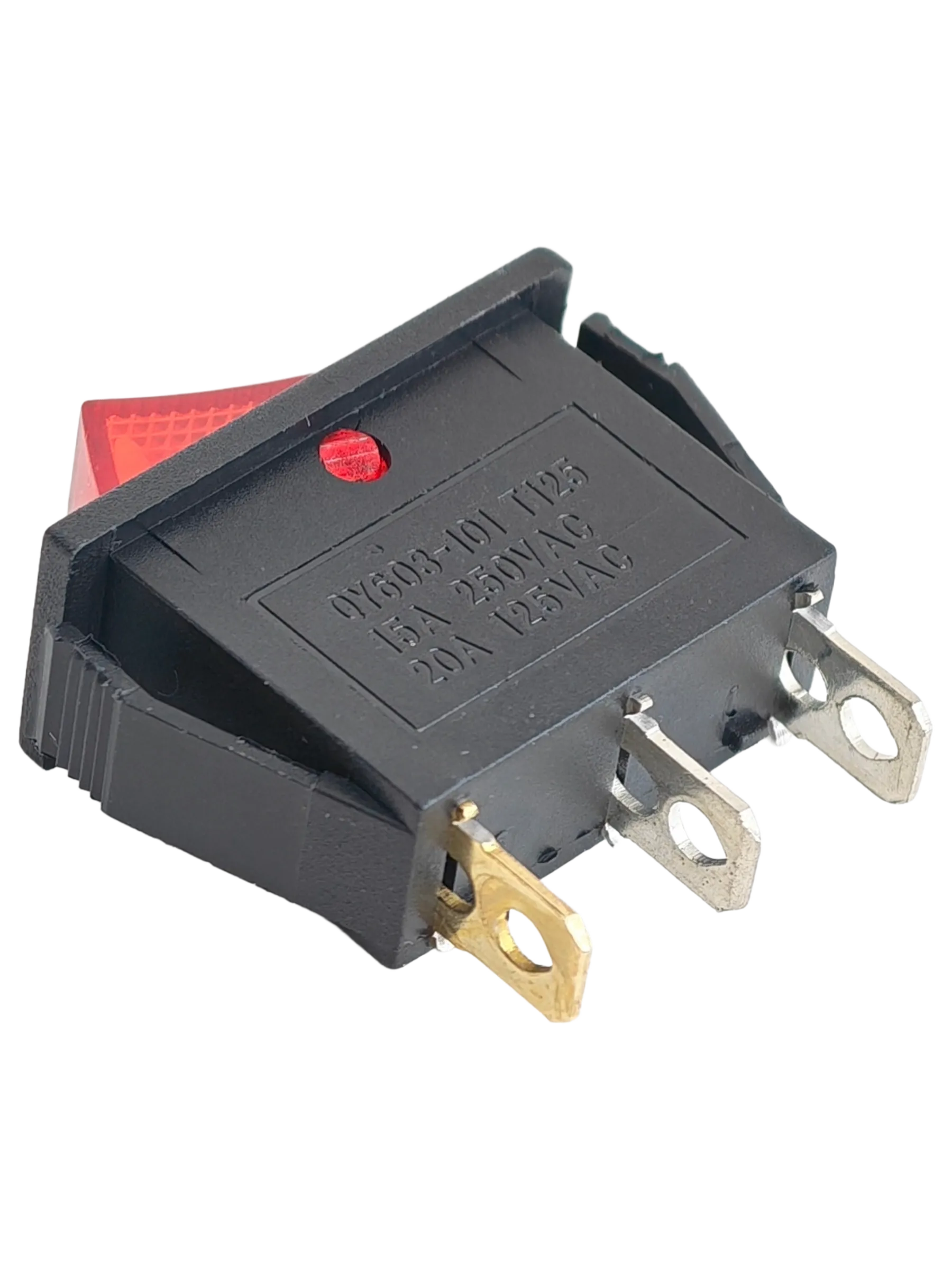

Rocker switch KCD3-101/N4-W

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 003.003.011

Rocker switch KCD3-101/N4-W Black Red . Body is made of PA66 T125, actuator - polycarbonate.
Contacts to connect to fastons Tab250 (6.3x0.8).
Rated load 15A/250VAC.
Mounting hole 10.2x28.5 mm.

~~$0.62~~ $0.52

Available: 48 pcs

Description

Specification

Ratings	15A/250VAC Т125
Insulated resistance	≥ 100MOhm
Contact resistance	≤ 30mOhm
Dielectric strength	1500VAC
Endurance	10 000 cycles
Base material	plastic PA66
Button material	polycarbonate
Mounting hole with width = 1...2.5 mm	10.2х28.5 mm

Rocker switch KCD3-101/N4-W

Specification

Dimensions

Auxiliaries and accessories for KCD3-101/N4-W

Similar or replacement products KCD3-101/N4-W
