Model: 012.009.003

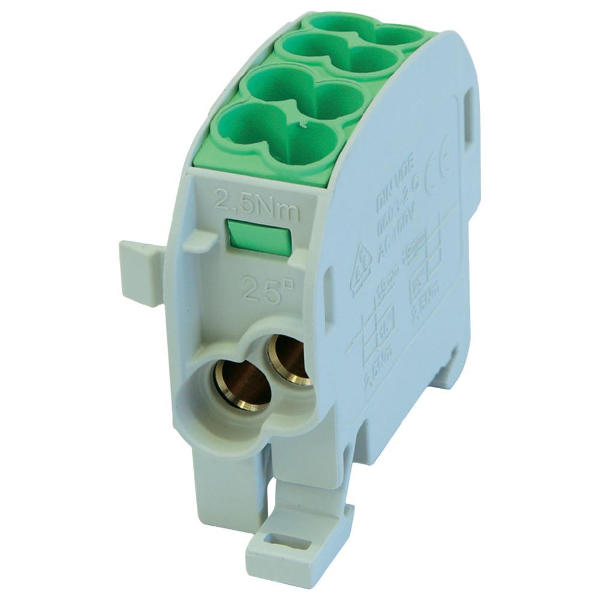

Main line branch terminal HLAK 25/16 PE 080110-2-4

Manufacturer: Leipold (Germany)

Barcode: 4051589801126

Branch terminal 080110-2-4 is designed to connect and branch signle core and multicore copper cables with max cross section up to 25mm² in AC circuits. All-side finger safe, modular system. Complies with the EC ROHS directives.

☎ Price by call

Minimum Order: 5 by step: 5

Description

Specification

Parameters	080110-2-4
Cover color	yellow-green RAL 6018
Housing color	light grey RAL 7035
Nominal voltage	690V АС
Nominal current	100A
Materials	Terminal body: brass (CuZn39Pb2) Housing: PA 6 (halogen-free) Screws: zinc plated steel
Flame resistance	self-extinguishing
Input terminal cross section	2x(2.5...25)mm²
Output terminal cross section	2x(2.5...16)mm²
Tightening torque	2.5N·m
Stripping length	19mm
