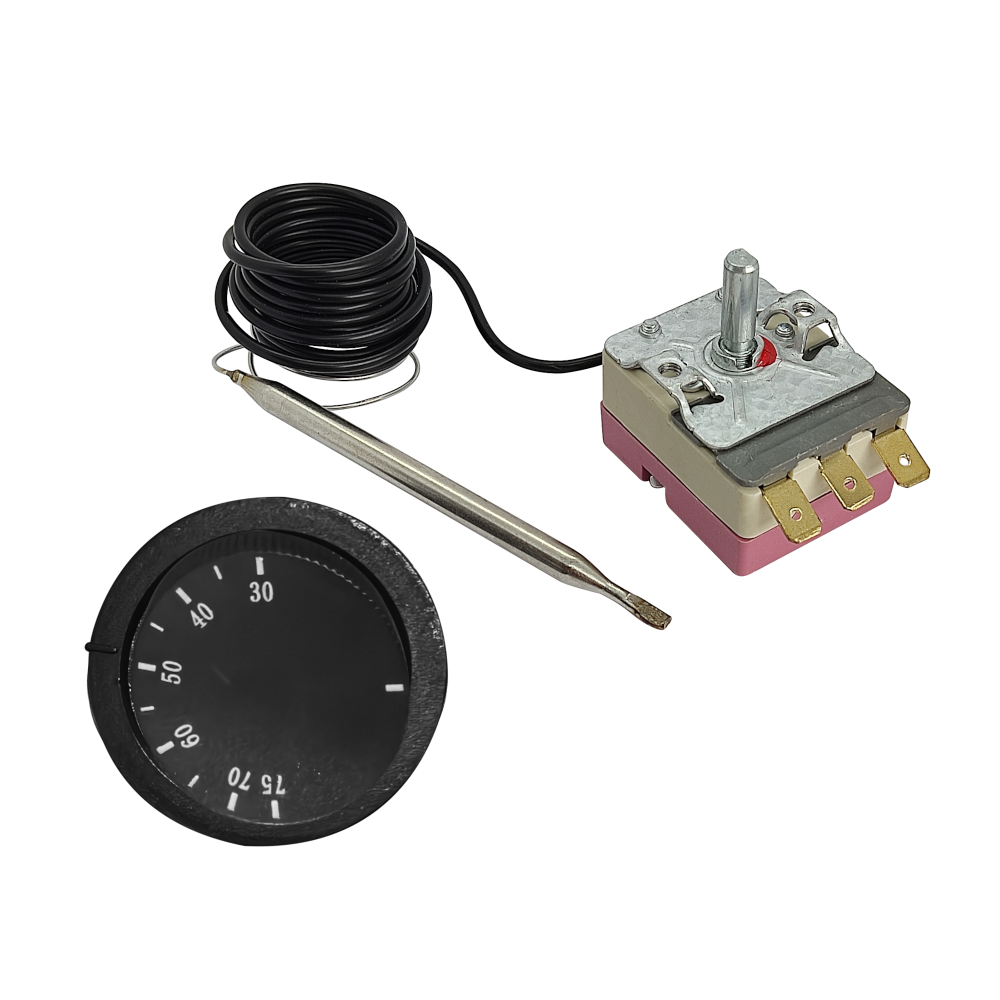

Capillary thermostat WKB-75S2 16A/250VAC with knob

Wishlist
Compare
Send
- VK
- WhatsApp
- Odnoklassniki
- Copy link

Model:
010.002.140

Manufacturer: Essima

Adjustable single-pole capillary thermostat WKB-75S2 with temperature range 30°…75°C is intended to maintain the required temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on bellows assembly within the plastic housing to open electrical contacts.
Area of application - boilers.
Contacts rating 16A/250VAC.

$4.34

pcs

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	30°C…75°C
Temperature in position	H: 75±3°C L: 30°C;
Differential	5±3°C
Electric rating	16A/250VAC
Electric strength	2000V АС / 1 min / 0.5 mA
Max temperature of the bulb	105°C
Max temperature of the case	150°C
Life	100 000 cycles

Thermostat dimensions

Capillary thermostat WKB-75S2 dimensions
