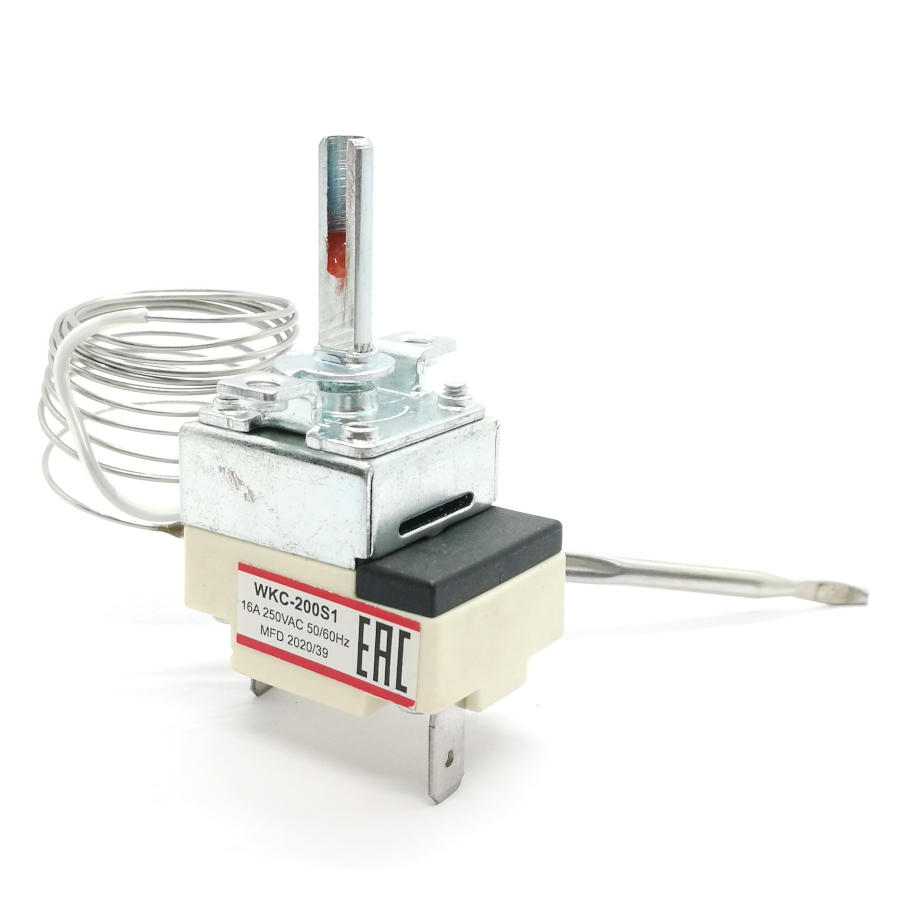

Capillary thermostat WKC-200S1 16A/250VAC with knob

Model: 010.002.104
  • photo 3
  • photo 4
  • photo 5
  • photo 6

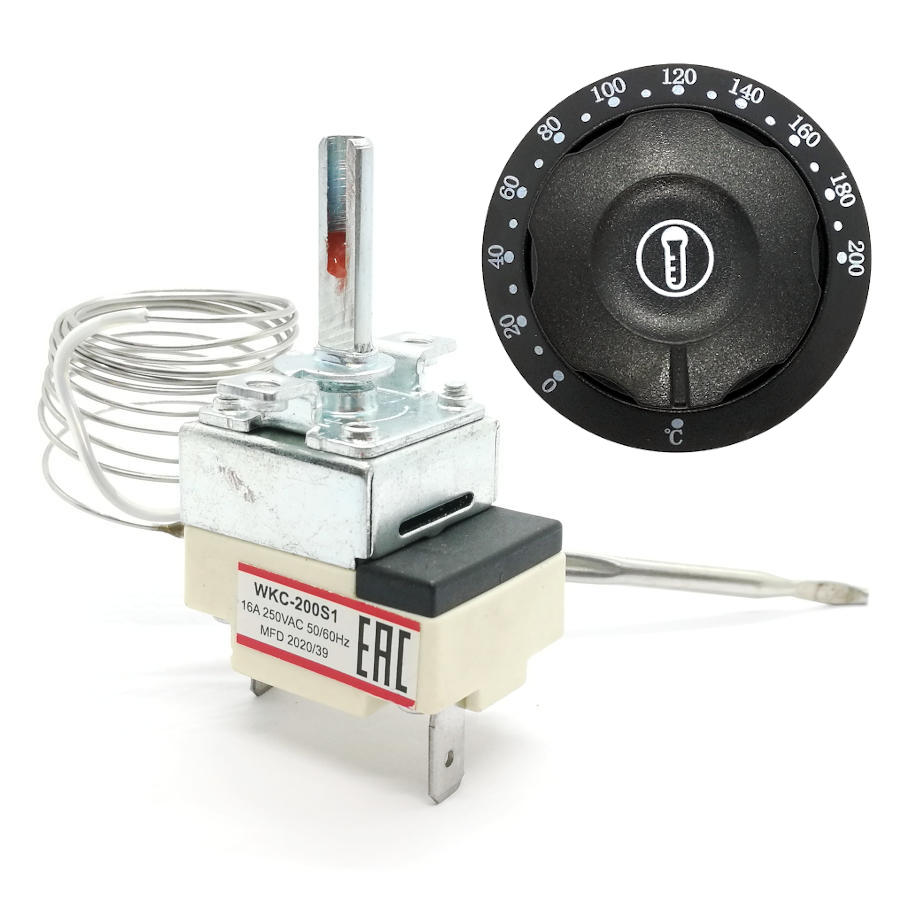

Thermostat WKC-200S1 with knob
Adjustable capillary thermostat WKC-200S1 is designed to maintain the required temperature in a controllable device or its parts. Temperature adjusting range 0...200°C. Electric rating 16A/250VAC. Stainless steel bulb and capillary.
Supplied together with black plastic knob.
$2.93
Available: 273 pcs
 pcs

Specifications

Bulb and capillary materialstainless steel
Contacts configuration1 NC (SPST)
Temperature adjusting range0°C...200°C
Temperature in positionH: 200±7°C
Differential6±4°C
Electric rating16A/250VAC
Testing conditionstemperature changing rate ≤1K/min
Max temperature of the bulb230°C
Max temperature of the case125°C
Life100 000 cycles
Knobyes
Knob dimensionsØ58x22.2 mm
Knob materialblack plastic

Dimensions

Dimensions of capillary thermostat WKC-200S1

Auxiliaries and accessories for WKC-200S1 с рукояткой

background

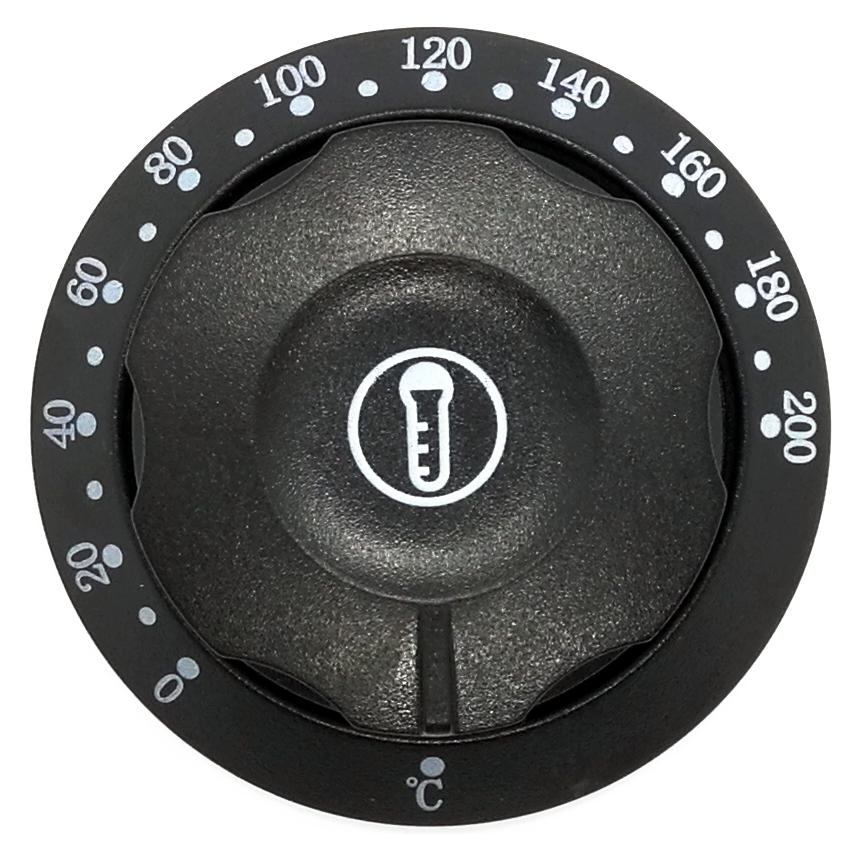

Рукоятка 0...200C
