Capillary thermostat WKC-350S1 16A/250VAC with knob

Model: 010.002.136
  • photo 3
  • photo 4
  • photo 5
  • photo 6
  • photo 7
  • photo 8
−15%

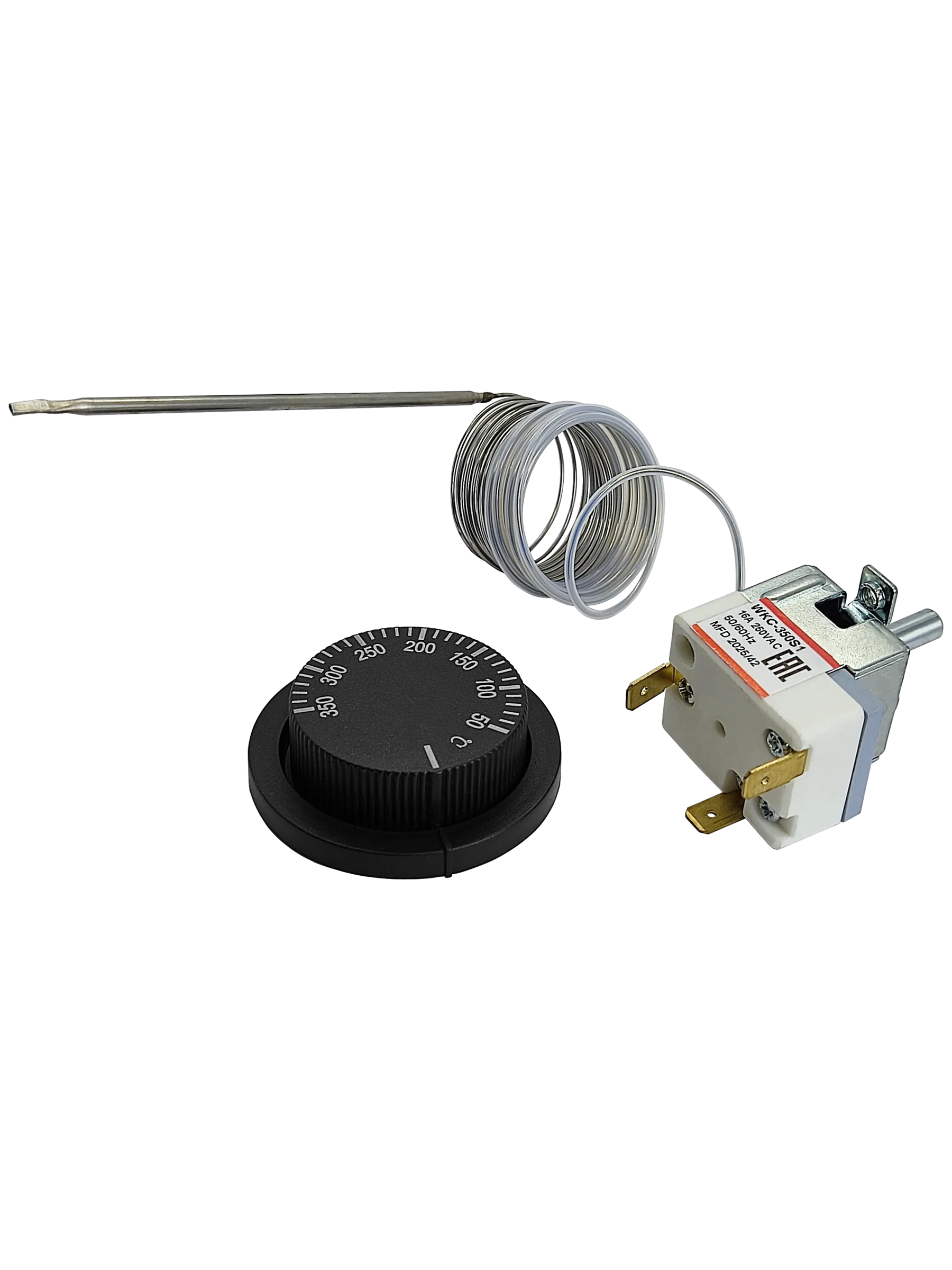

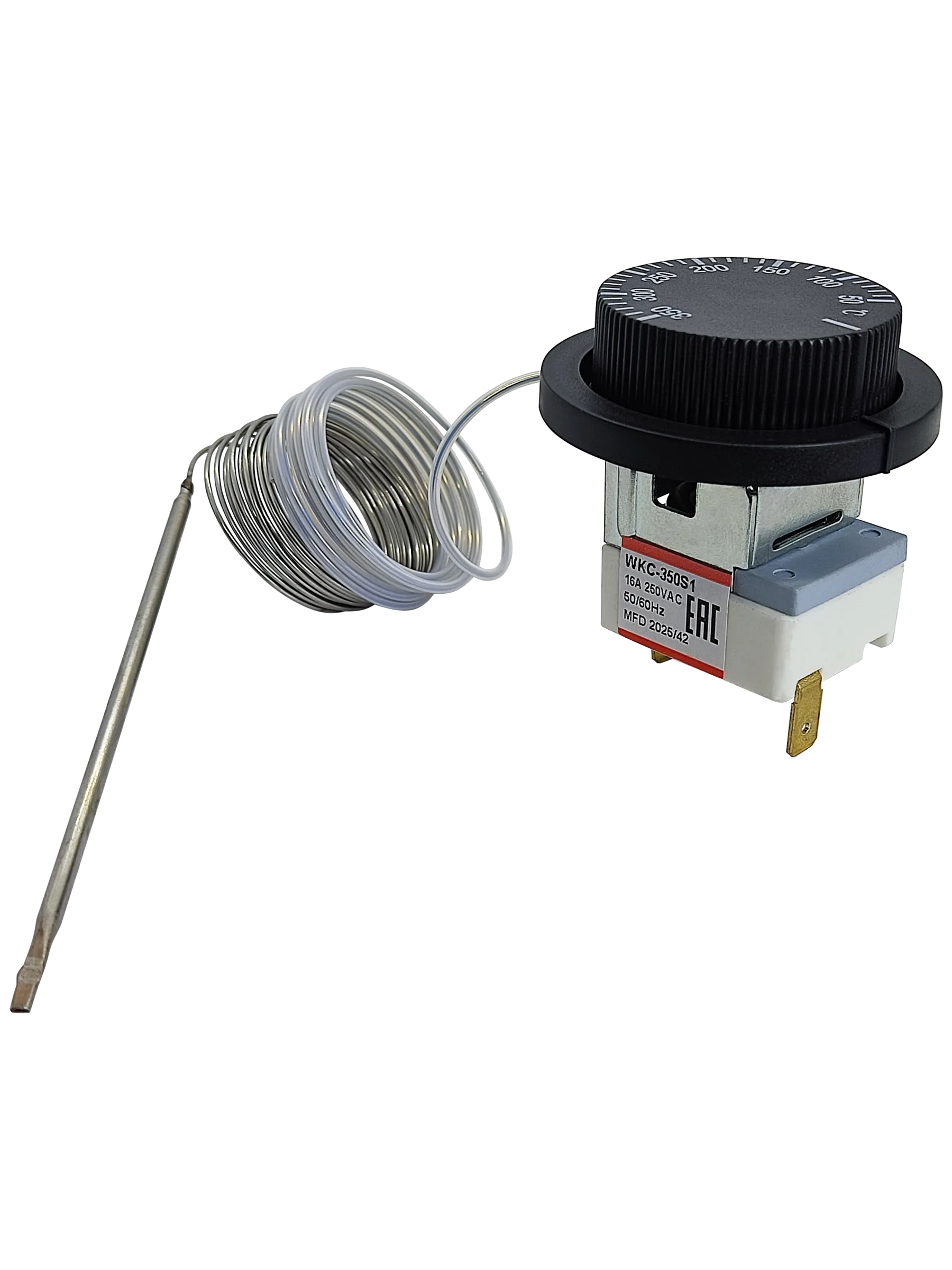

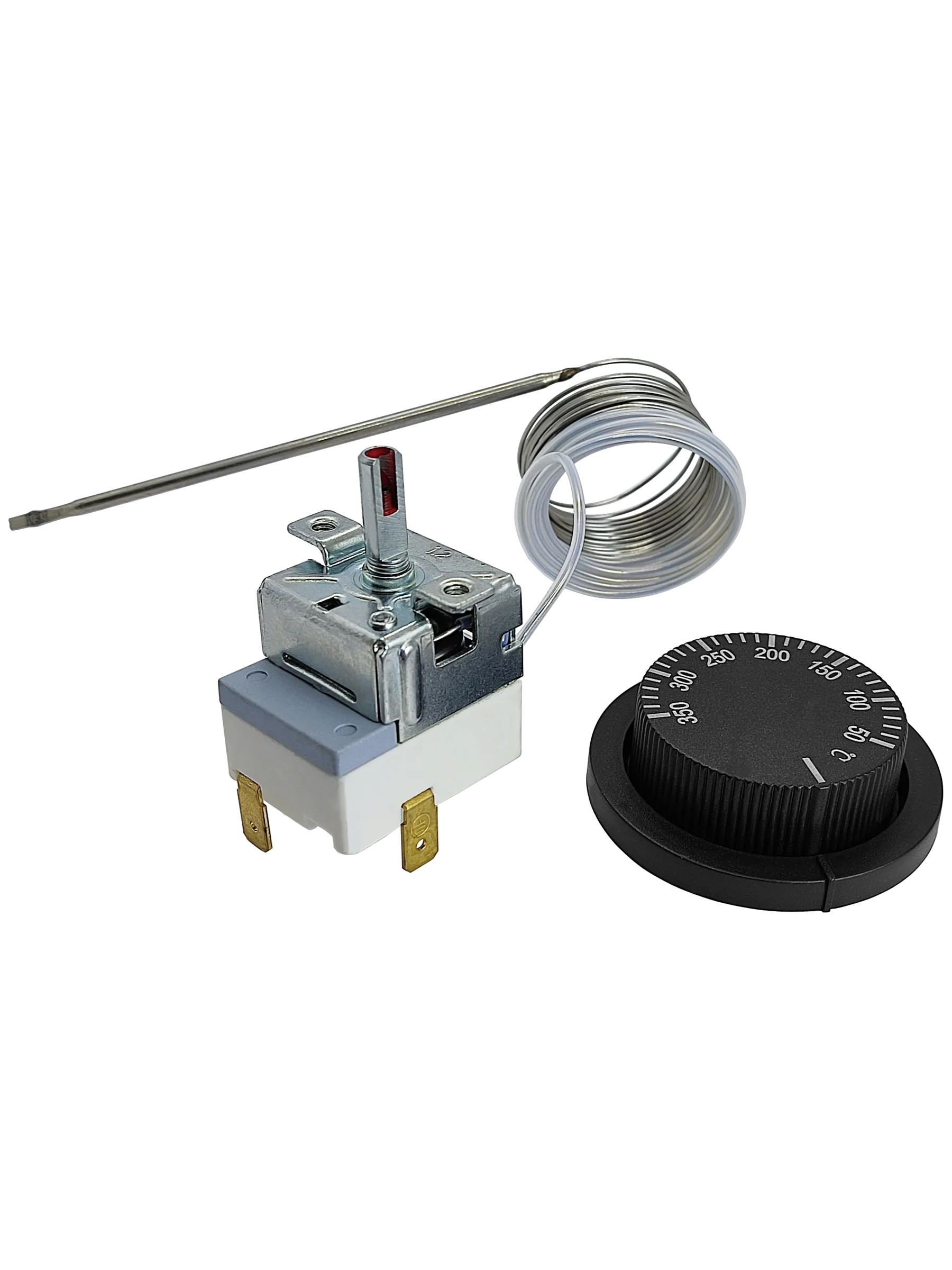

Thermostat WKC-350S1 with knob
Adjustable single-pole capillary thermostat WKC-350S1 is intended to maintain the required temperature in a device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on a diaphragm within the plastic housing to open electrical contacts.
Area of application - conditioners, heaters, air curtains.
Rated current: 16A/250VAC.
$3.48 $2.97
 pcs

Specification

Temperature adjusting range+50...+350°C
TemperatureH point temperature: 350 ± 15°C
L point temperature: 50°C
Differential15±5°C
Material of the capillary and bulbstainless steel
Electric rating16A/250VAC
Dielectric strength2000VAC / 1 min / 0.5 mA
Contacts resistance< 50 mΩ
Insulation resistance> 100 MΩ
Senor higt temperature380 °C
Main body maximum temperature150 °C
Life> 100 000 cycles

Thermostat dimensions

Capillary thermostat WKC-350S1 dimensions

Knob dimensions

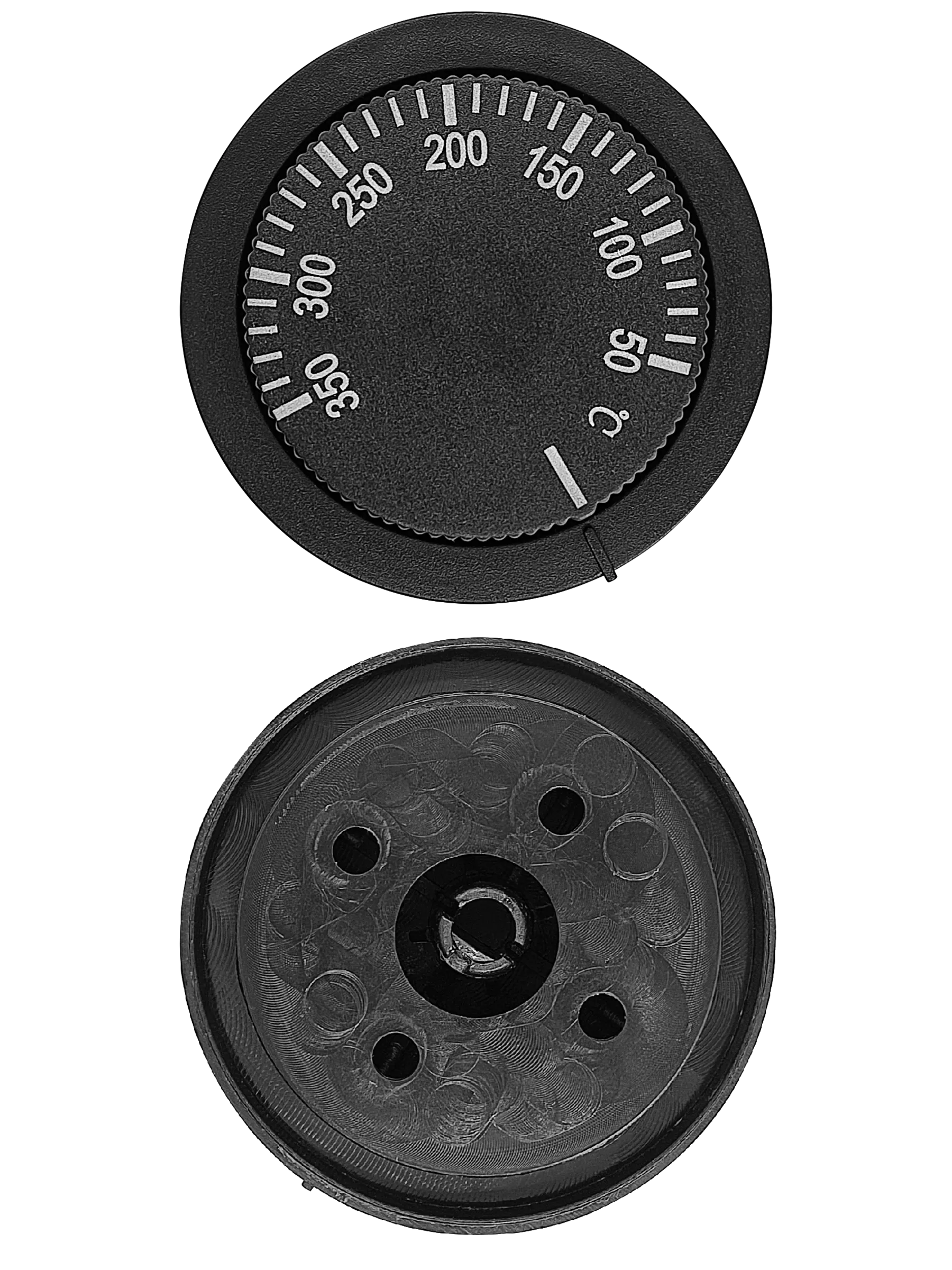

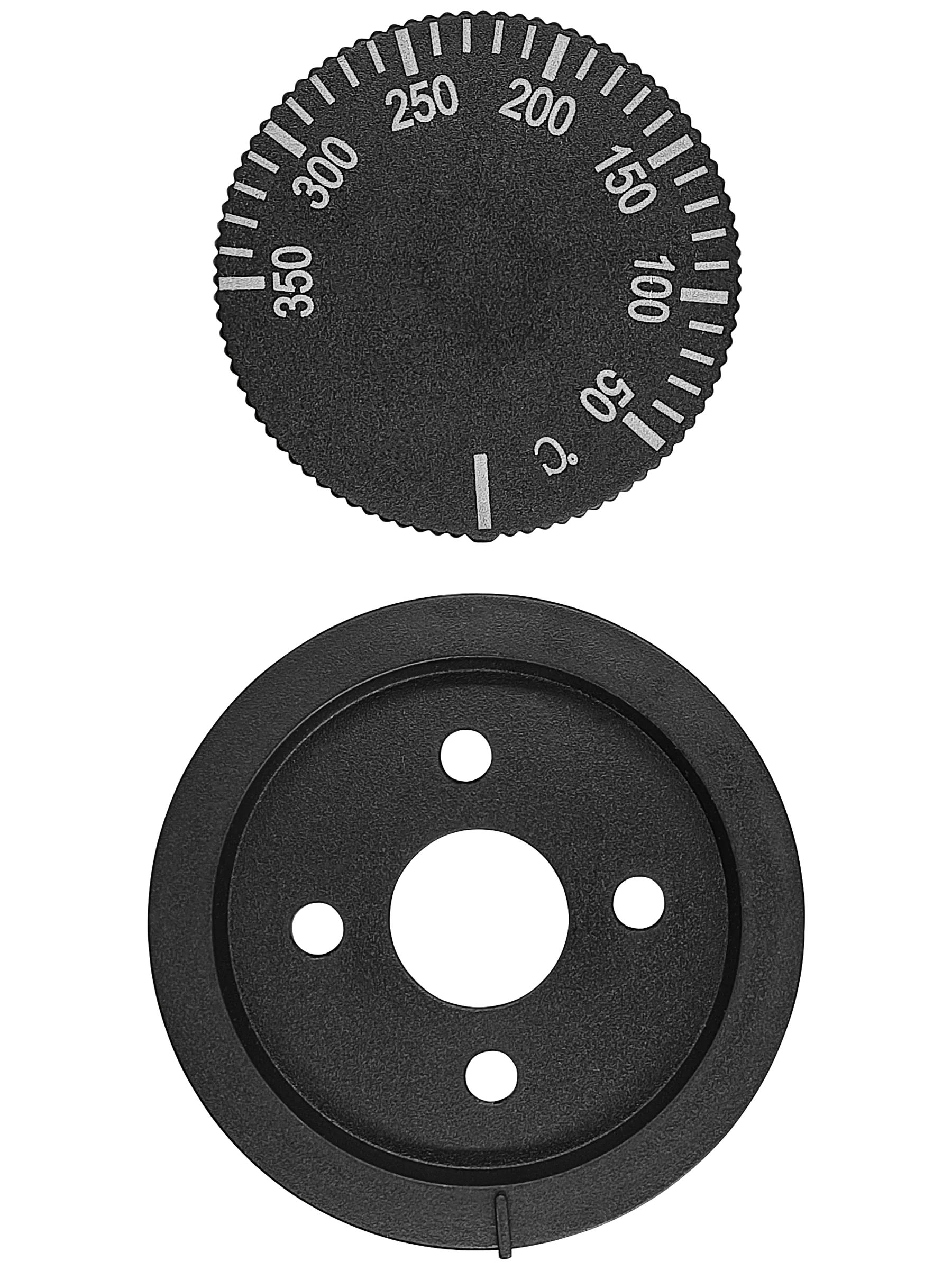

Knob with temperature scale 50...350°C
