Capillary thermostat WKC-350S1 16A/250VAC

Model: 010.002.005
−41%

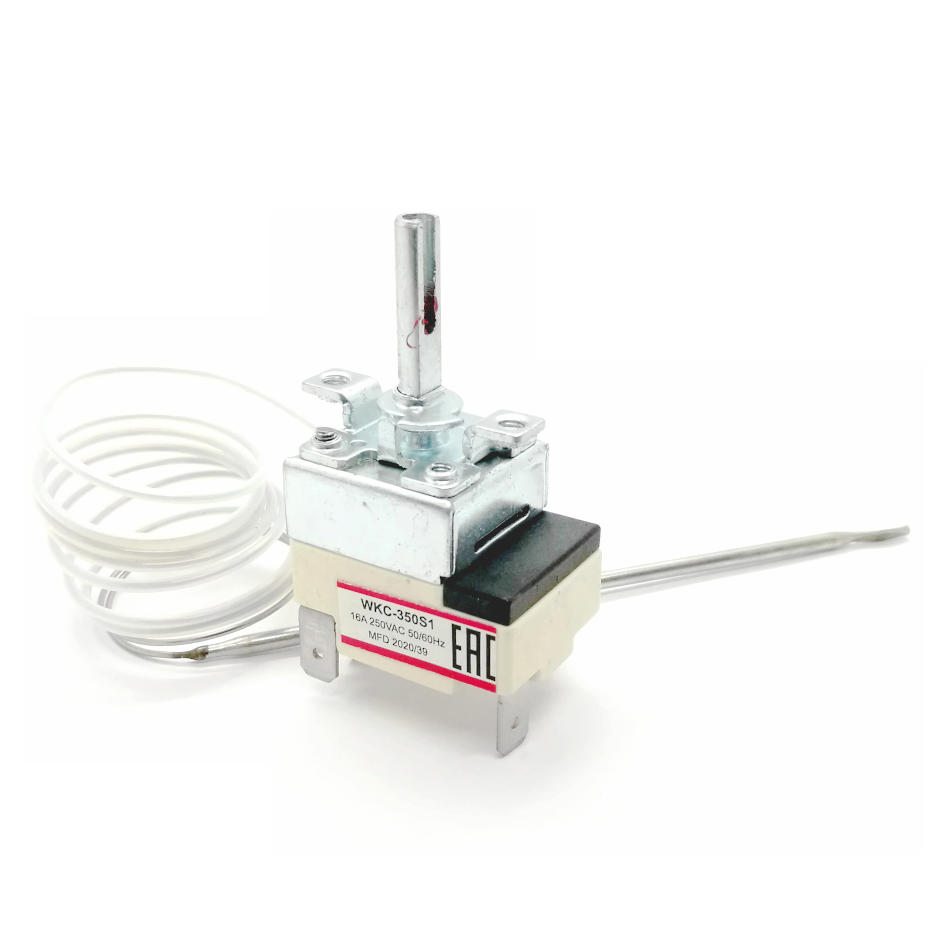

Thermostat WKC-350S1
Adjustable capillary thermostat WKC-350S1 is intended to maintain the required temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 50...350°C.
Electric rating: 16A/250VAC.
Stainless steel bulb and capillary.
$4.18 $2.46
Available: 175 pcs
 pcs

Specifications

Bulb and capillary materialstainless steel
Temperature adjusting range50°C...350°C
Temperature in positionH: 350 ± 10°C
Hysteresis10 ± 5°C
Electric rating16A/250VAC
Testing conditionstemperature changing rate ≤1K/min
Max temperature of the bulb380°C
Max temperature of the case150°C
Life>100 000 cycles

Dimensions

WKC-350S1 thermostat dimensions
