Capillary thermostat WKC-40C2 16A/250VAC

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 010.002.089

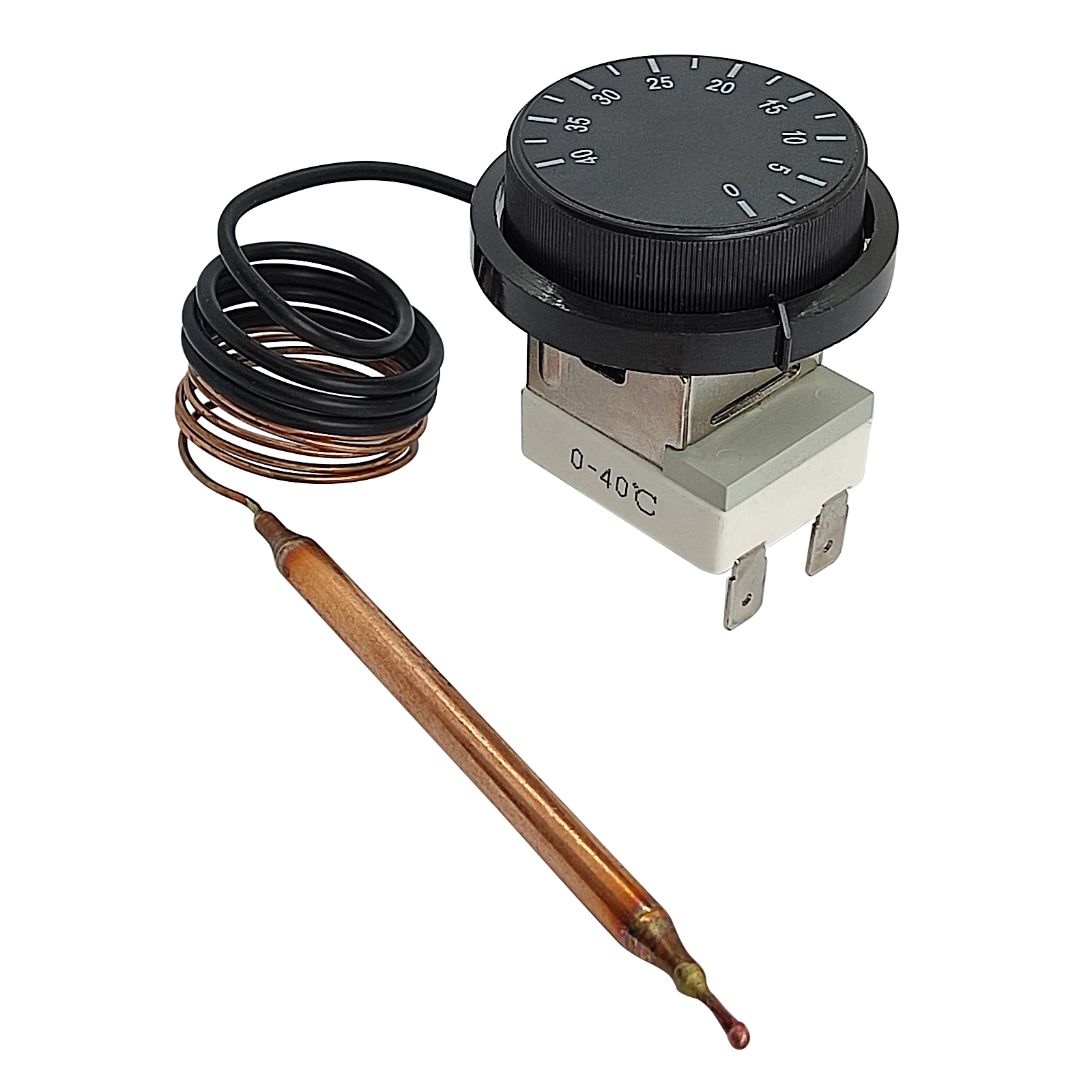

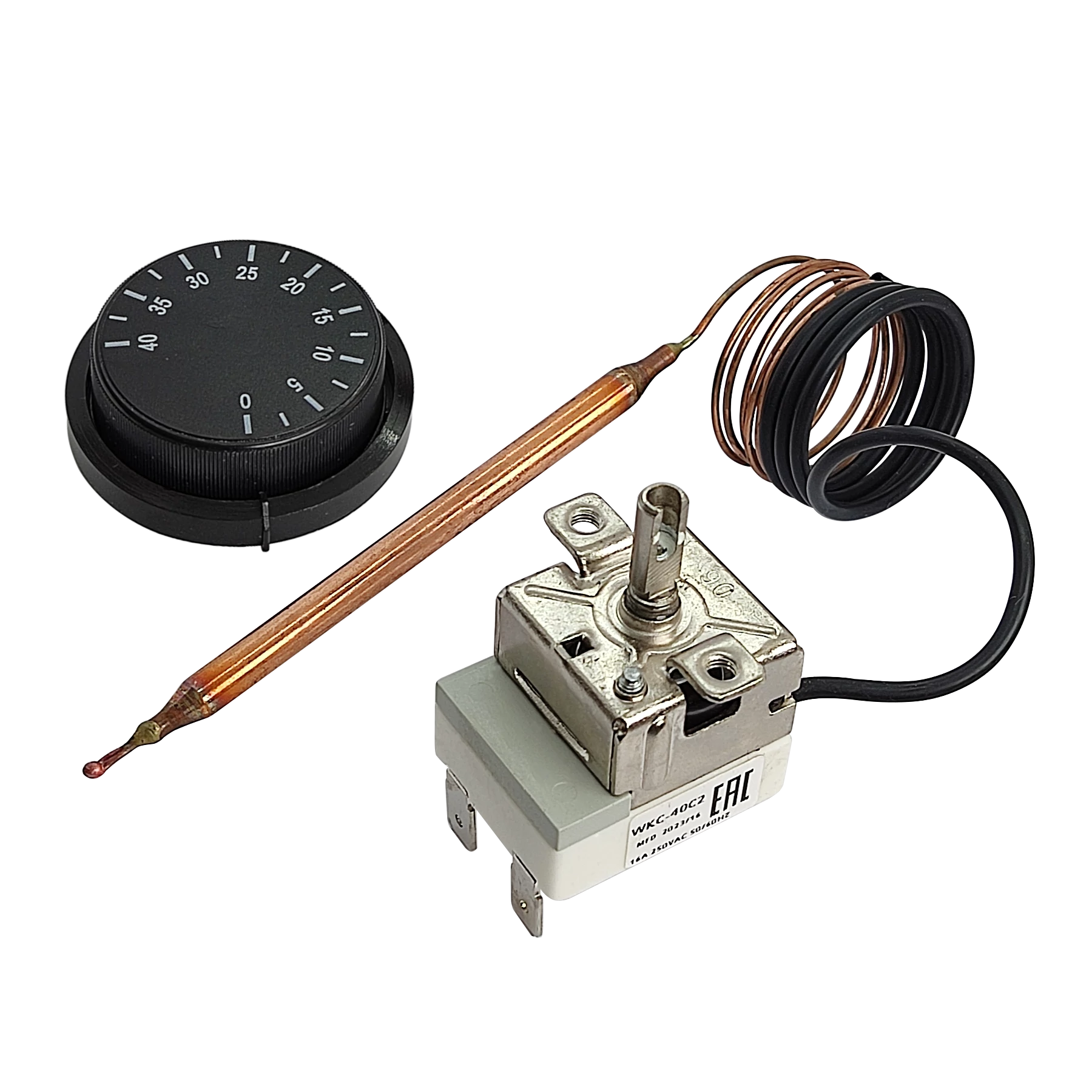

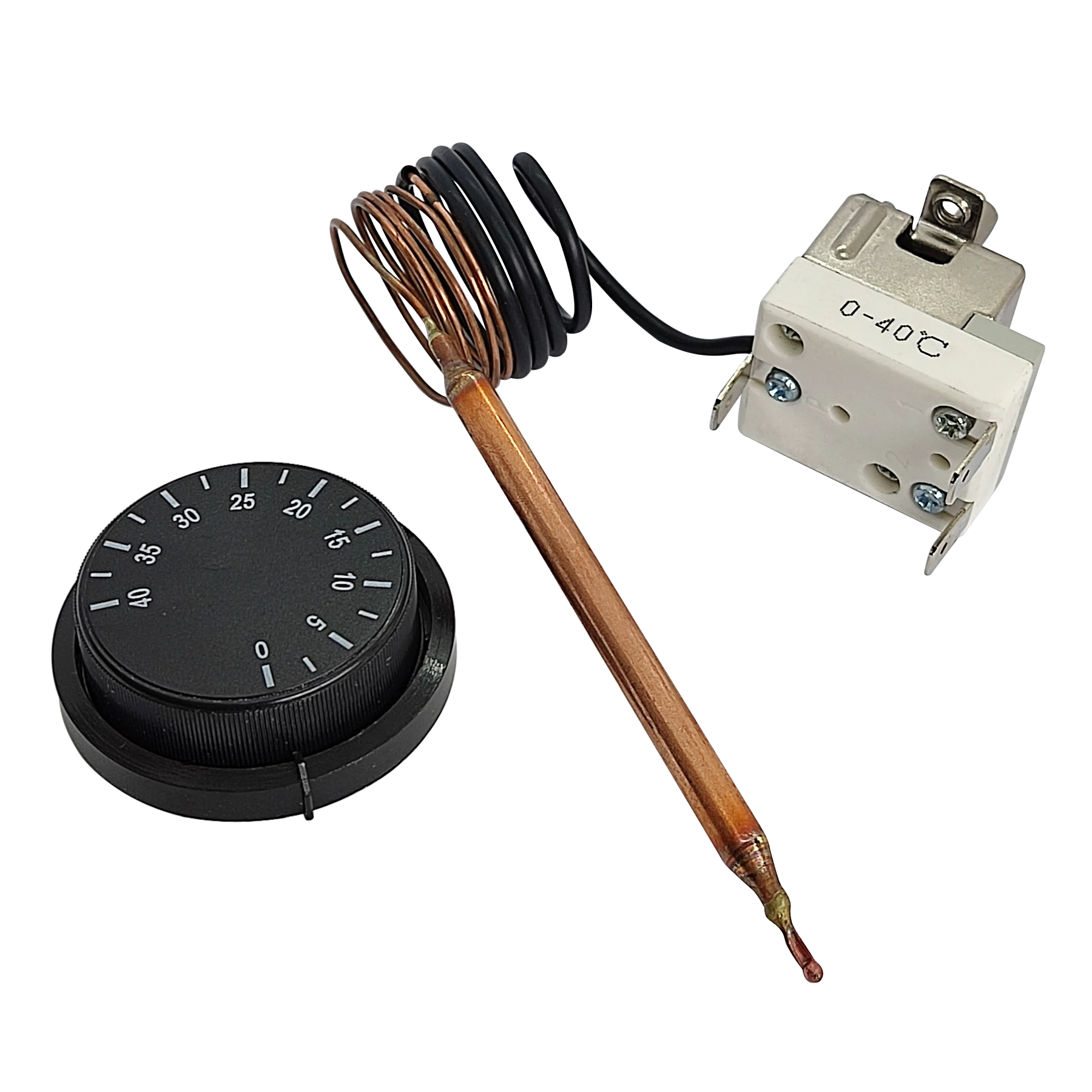

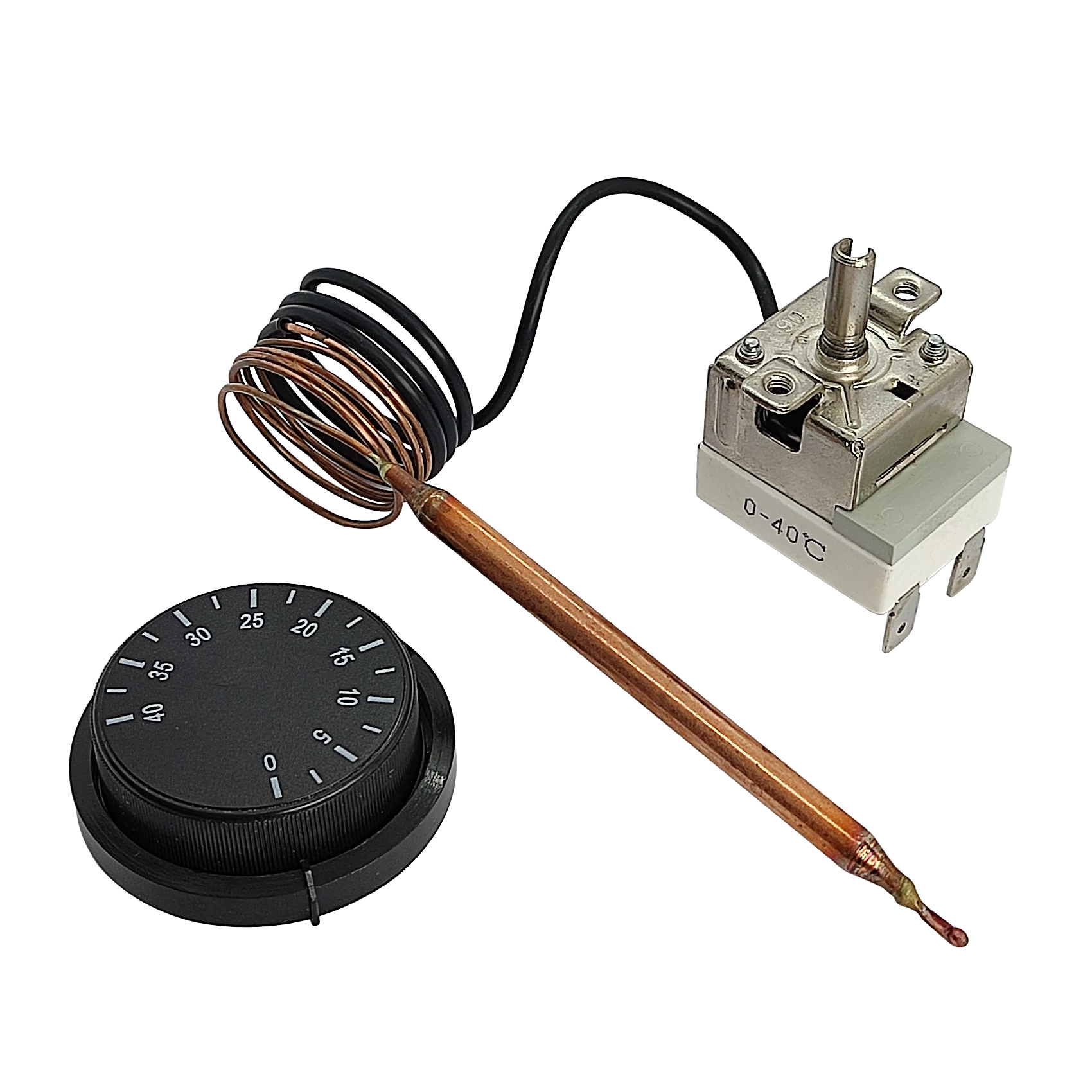

Adjustable capillary thermostat WKC-40C2 is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 0...40°C.
Electric rating: 16A/250VAC.
Copper bulb and capillary.

$3.26

Qty	from 1 pcs	from 50 pcs	from 100 pcs
Price	$3.26	$2.82	$2.52

Available: 1357 pcs

Description
Compatible

Specifications

Bulb and capillary material	copper
Temperature adjusting range	0°C...40°C
Temperature in position	H: 40±3°C L: 0°C;
Differential	4±2°C
Electric rating	С-1: 16A/250VAC С-2: 3A/250VAC
Testing conditions	temperature changing rate ≤1K/min
Max temperature of the bulb	70°C
Max temperature of the case	125°C
Life	100 000 cycles

Dimensions
