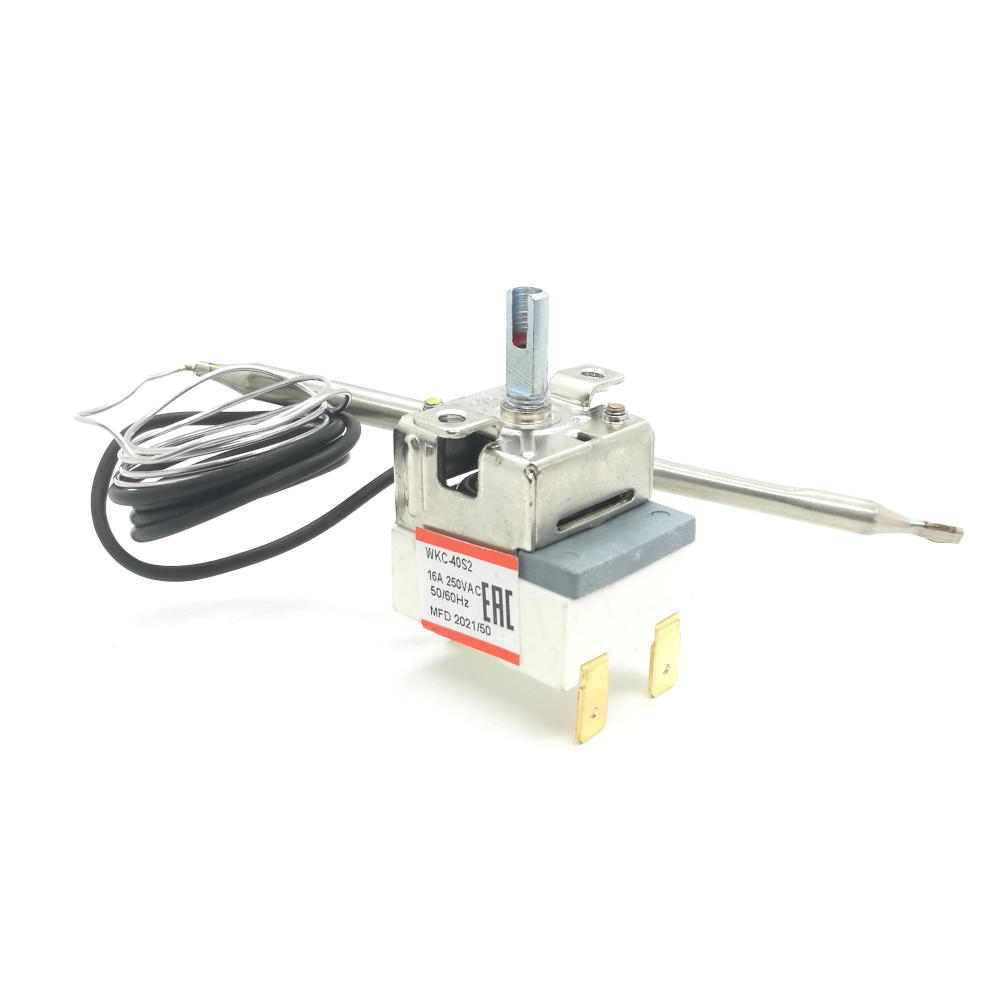

Capillary thermostat WKC-40S2 16A/250VAC

Model: 010.002.129
Thermostat WKC-40S2 16A/250VAC
Adjustable single-pole capillary thermostat WKC-40S2 is intended for support of given temperature in the controllable device or its parts. Temperature adjusting range 0...40°C. Electric rating: 16A/250VAC. Stainless steel bulb and capillary.
$3.88
 pcs

Specifications

Bulb and capillary materialstainless steel
Temperature adjusting range0°C ... 40°C
Temperature in positionH: 40 ± 3°C
Hysteresis4 ± 2°C
Electric rating16A/250VAC
Testing conditionstemperature changing rate ≤1K/min
Max temperature of the bulb70°C
Max temperature of the case150°C
Life100 000 cycles

Dimensions

Dimensions of capillary thermostat WKC-40S2

Auxiliaries and accessories for WKC-40S2

Similar or replacement products WKC-40S2
