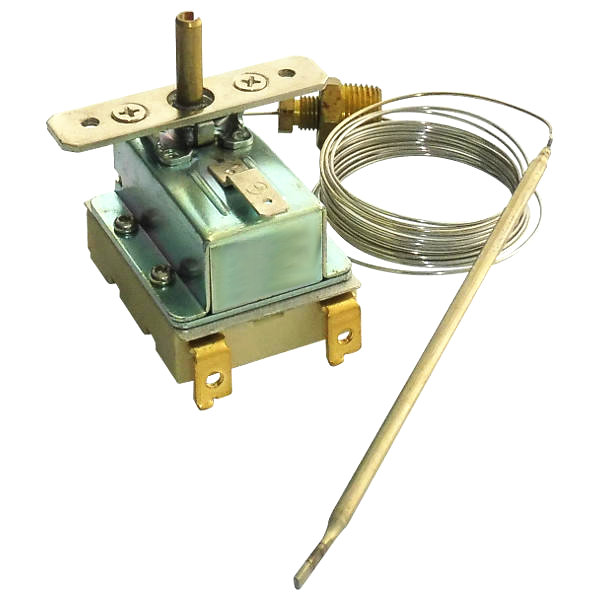

Capillary thermostat WKG-320S4 32A/250VAC

Wishlist
Compare
Send
VK WhatsApp Odnoklassniki Copy link

Model: 010.002.090

Adjustable double-pole capillary thermostat WKG-320S4 is designed to maintain the required temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liguid acts on a bellows assembly within the plastic housing to open electrical contacts. Area of application - gas ovens and other heating devices.
Adjustable temperature range +50°C...+320°C.
Rated load 32A/250VAC.

$9.89

Specifications

Bulb and capillary material	stainless steel
Temperature adjusting range	50°C...320°C
Temperature in position	H: 320±12°C L: 50°C;
Differential	25±10°C
Electric rating	1-T1: 32A/250VAC 3-T3: 32A/250VAC
Testing conditions	temperature changing rate ≤1K/min
Max temperature of the bulb	380°C
Max temperature of the case	125°C
Life	100 000 cycles

Dimensions
