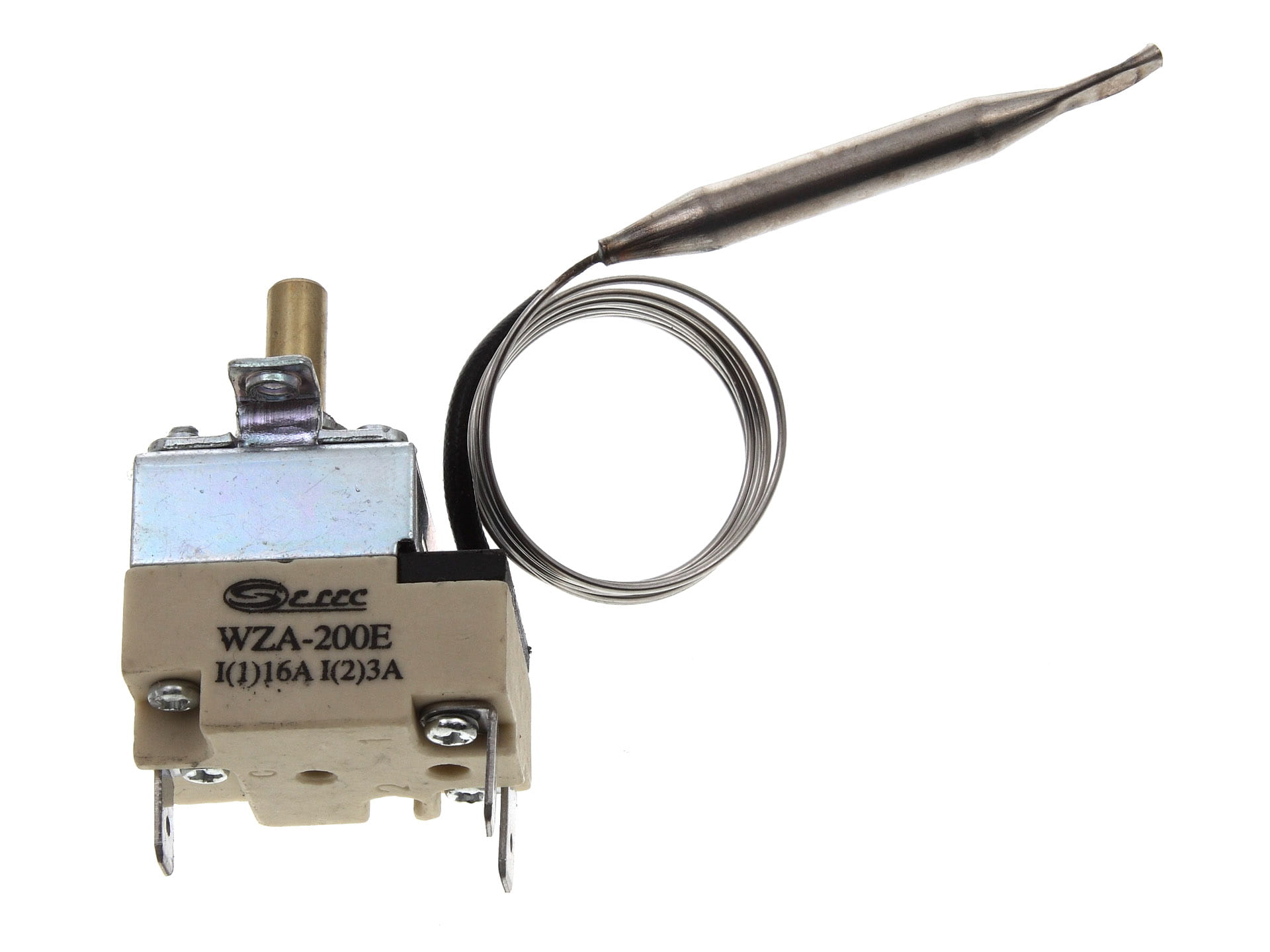

Capillary thermostat WZA-200Е

Model: 010.002.124
Capillary thermostat WZA-200Е
An adjustable single-pole capillary thermostat is intended for support of given temperature in the controllable device or its parts.
$4.32
Available: 77 pcs
 pcs

Specifications

Temperature range30...200 °C
Rated voltage250Vac
Rated currentI(C-1) 16A; I(C-2) 3A
Hysteresis8±5K
Maximum head temperature+250°C
Material of bulb and capillarysteel
Capillary length1000±50 mm
Sensing element diameter6 mm
Electrical life> 100000 cycles

Dimensions

dimensions of WZA-200Е
