Thermostat WZA-40E 16A/250VAC with knob

Model: 010.002.118
Thermostat WZA-40E with knob
Adjustable single-pole capillary thermostat WZA-40E is intended for support of given temperature in the controllable device or its parts. A rise in temperature causes the expansion of liquid within the bulb and capillary. The liquid acts on a bellows assembly within the plastic housing to open electrical contacts.
Temperature adjusting range 0...40°C.
Cooper bulb and capillary.
$3.27
Available: 100 pcs
 pcs

Specifications

Bulb and capillary materialcooper
Temperature adjusting range0°C...40°C
Insulation resistance>100mΩ
Electric ratingС-1: 16A/250VAC
C-2: 3A/250VAC
Testing conditionstemperature changing rate ≤1°C/min
Max temperature of the case125°C
Capillary length, mm1000
Bulb length,mm125±5
Life100 000 cycles

Thermostat dimensions

Dimensions of WZA-40E thermostat

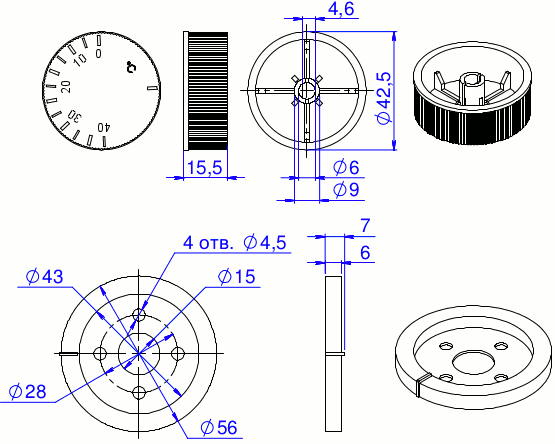

Knob dimensions

Knob for thermostat WZA-40E
