Chiller CC 6501 400VAC

Model: 022.008.008
Chiller CC 6501 400VAC
Manufacturer: Pfannenberg (Germany)
Stand-alone chiller CC 6501 with rated voltage 400VAC 50/60Hz and cooling capacity 5.0kW is designed for fluid cooling with water, water/glycol mixtures and low-viscosity oils (max viscosity 10 mm2/s at +40°C).
Steel housing with thick powder coating. Mounting on top of the enclosure is possible. Chiller is equipped with a programmable control module that allows small hystereses of the temperature of the cooling medium. Degree of protection IP54.
− Tank volume 30l;
− Connecions G3/4";
− Max power consumption 2.962kW.
☎ Price by call

Specification for the CC 6501 chiller

General characteristics
Article number42630505300
Rated voltage ±10%400/460VAC 50/60Hz
Cooling capacity (with pump)1W18/L32 (5.0 kW)
W10/L32 (3.5 kW)
Flow rate (pump)222 l/min
Pressure (head) (pump)3 bar
Ambient temperature range+15°C...+45°C
Control range (refrigerant outlet temperature)+10°C...+35°C (factory setting +18°C)
Target value tolerance±2K
RefrigerantR134a (1400 g)
Max power consumptionW18/L32 (2.962 kW)
Max current consumptionW18/L32 (4.5 A)
Starting currentW18/L32 (15.75 A)
Pre-fuse T9A
Volumetric airflow (external)2300 m3/h
Tank volume30l
Connections (medium)G3/4"
Noise level at 50Hz (EN ISO 3741)< 62 dB(A)
Degree of protection (electrical equipment)IP54
ColourRAL 7035, different colours available on request
Accessories (article number)
Hydraulic bypass48700956147
Flow switch48700956149
Aluminium filter45700956151
20% Propyleneglycol pre-mix (20l)45783000123
20% Ethyleneglycol pre-mix (20l)45783000125
1 cooling capacity including power loss in the pump; refrigerant (water + glycol 20% ethylene) outlet temperature +18°C, ampient temperature +32°C.
2 performance data based on 50Hz operation.

Dimensions

Overall dimensions of the CC 6501 chiller

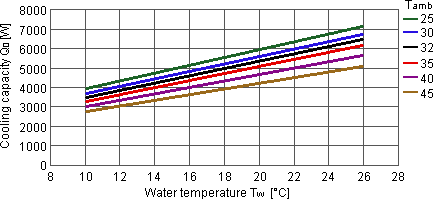

Cooling capacity performance curves

Cooling capacity performance curves for CC 6501 chiller

Range of CC series chillers

Model Rated voltage, V Article number Cooling capacity (with pump) at refrigerant outlet temperature +18°C and ambient temperature +32°C, kW
CC 6101 230 42630115200 1.1
115 42630115100 1.3
СС 6201 230 42630175200 1.7
115 42630175100 1.92
CC 6301 230 42630245200 2.4
115 42630245100 2.68
CC 6401 400/460 42630355300 3.5
CC 6501 400/460 42630505300 5
CC 6601 400/460 42630655300 6.5
