Chiller CC 6601 400VAC

Model: 022.008.009
Chiller CC 6601 400VAC
Manufacturer: Pfannenberg (Germany)
Stand-alone chiller CC 6601 with rated voltage 400VAC 50/60Hz and cooling capacity 6.5kW is designed for fluid cooling with water, water/glycol mixtures and low-viscosity oils (max viscosity 10 mm2/s at +40°C).
Steel housing with thick powder coating. Mounting on top of the enclosure is possible. Chiller is equipped with a programmable control module that allows small hystereses of the temperature of the cooling medium. Degree of protection IP54.
− Tank volume 30l;
− Connecions G3/4";
− Max power consumption 3.294kW.
☎ Price by call

Specification for the CC 6601 chiller

General characteristics
Article number42630655300
Rated voltage ±10%400/460VAC 50/60Hz
Cooling capacity (with pump)1W18/L326.5 kW
W10/L324.55 kW
Flow rate (pump)222 l/min
Pressure (head) (pump)3 bar
Ambient temperature range+15°C...+45°C
Control range (refrigerant outlet temperature)+10°C...+35°C (factory setting +18°C)
Target value tolerance±2K
RefrigerantR134a1500 g
Max power consumptionW18/L323.294 kW
Max current consumptionW18/L325.3 A
Starting currentW18/L3218.55 A
Pre-fuse T12A
Volumetric airflowexternal2300 m3/h
Tank volume30l
Connections (medium)G3/4"
Noise level at 50Hz (EN ISO 3741)< 62 dB(A)
Degree of protection (electrical equipment)IP54
ColourRAL 7035, different colours available on request
AccessoriesArticle number
Hydraulic bypass48700956147
Flow switch48700956149
Aluminium filter45700956151
20% Propyleneglycol pre-mix (20l)45783000123
20% Ethyleneglycol pre-mix (20l)45783000125
1 cooling capacity including power loss in the pump; refrigerant (water + glycol 20% ethylene) outlet temperature +18°C, ampient temperature +32°C.
2 performance data based on 50Hz operation.

Range of CC series chillers

ModelRated voltage, VArticle numberCooling capacity (with pump) at refrigerant outlet temperature +18°C and ambient temperature +32°C, kW
CC 6101230426301152001,1
115426301151001,3
СС 6201230426301752001,7
115426301751001,92
CC 6301230426302452002,4
115426302451002,68
CC 6401400/460426303553003,5
CC 6501400/460426305053005
CC 6601400/460426306553006,5

Dimensions

chiller dimensions

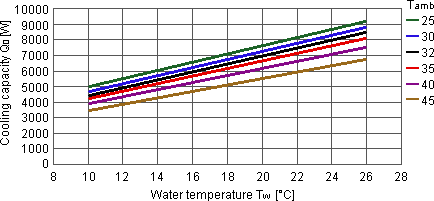

Cooling capacity performance curves

cooling capacity performance curves
