Thermostat ZR 01175

Model: 010.007.009
−15%

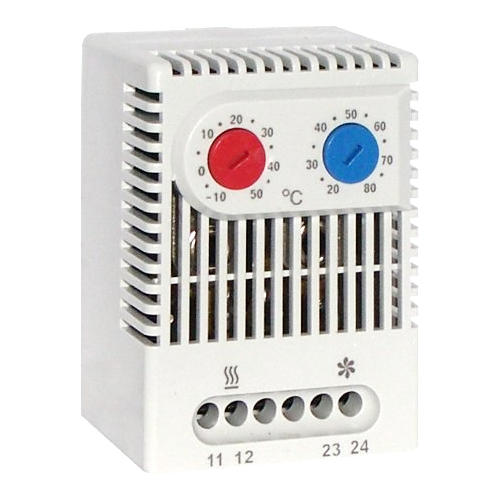

Thermostat ZR 01175
Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters. Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
$7.09 $6.00
Available: 97 pcs
 pcs

Technical data

Sensor element thermostatic bimetal
Switch temperature difference 7К (±4К)
Service life > 100 000 cycles
Connection 4-pole terminal, clamping torque 0.5Nm
rigid wire 2,5mm2;
stranded wire 1,5mm2
Max switching capacity 250Vас, 10 (2) A
120Vас, 15 (2) A
DC 30W
Case material PA66 UL94 V0
Operating/Storage temperature -20...+80°С
Protection type IP20

Dual thermostars ZR 011 series

Art. No. Setting range, marking Setting range, marking
01172.0-00 NC contact  NC contact 0...+60°С NO contact  NO contact 0...+60°С
01172.0-01 NC contact  NC contact +32...+140°F NO contact  NO contact +32...+140°F
01175.0-00 NC contact  NC contact -10...+50°С NO contact  NO contact +20...+80°С
01175.0-01 NC contact  NC contact +14...+122°F NO contact  NO contact +68...+176°F
01176.0-00* NO contact  NO contact 0...+60°С NO contact  NO contact 0...+60°С
01176.0-01* NO contact  NO contact +32...+140°F NO contact  NO contact +32...+140°F
* Used to control the temperature of heat exchangers and fans or to control the emergency signal in electrotechnical cabinets.

Wiring diagram
Wiring diagram
Dimensions
Dimensions of thermoregulator ZR 01172
